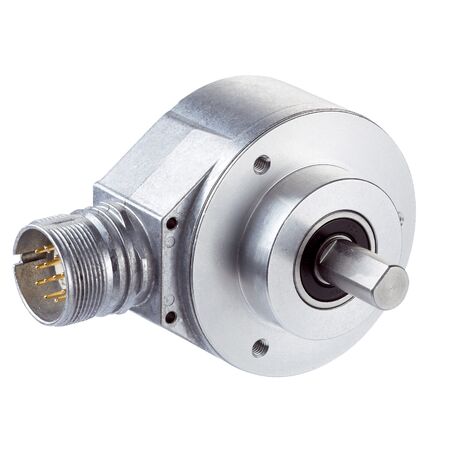

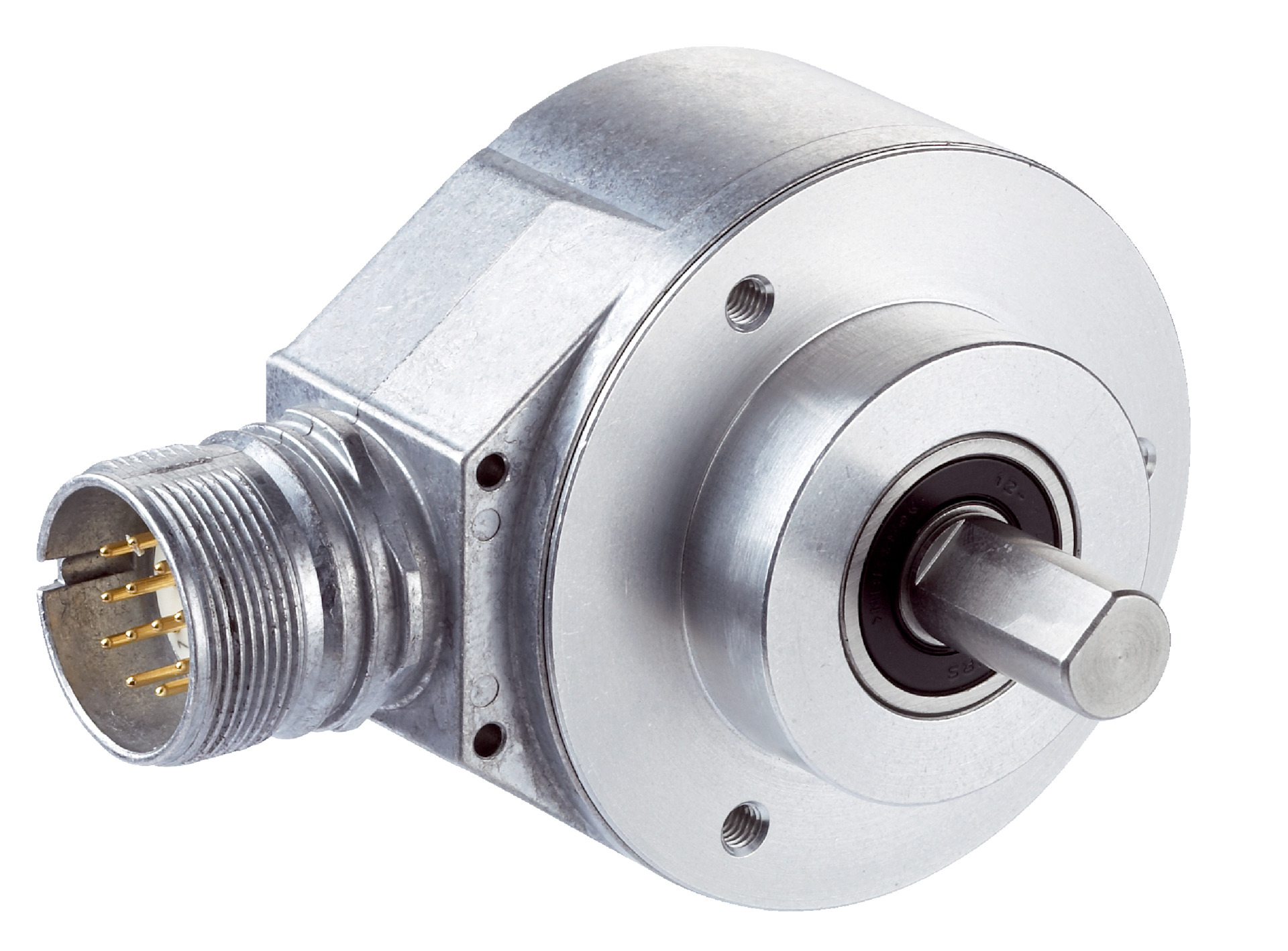

Incremental Encoder DFS60B-S4WA00600 | 600 PPR | IP67 Rated | ±0.01° Measuring Step | by SICK
The Incremental Encoder DFS60B-S4WA00600 features 600 pulses per revolution and a ±0.01° measuring step, making it ideal for precise position and speed measurement in industrial automation. With an IP67 rated housing and a robust design, it ensures reliable performance in harsh environments, perfect for robotics, conveyor systems, and machine tool feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60B-S4WA00600 | 600 PPR | IP67 Rated | ±0.01° Measuring Step | by SICK
Brand: SICK
SKU: 1067017
Alternatively Known As: Incremental rotary encoder, 600 PPR encoder, HTL incremental encoder, solid shaft encoder
Technical Specifications
- Pulses per revolution: 600
- Measuring step deviation: ±0.01°
- Error limits: ±0.05°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 32 V
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Housing material: Aluminum die cast
- Operating temperature range: -40°C to +100°C
- Enclosure rating: IP67 housing side, IP65 shaft side
- Start up torque: 0.5 Ncm
- Operating torque: 0.3 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.6 x 10^10 revolutions
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.3 kg
Key Features
- 600 pulses per revolution for high resolution
- 6-channel incremental HTL / Push pull communication interface
- Solid shaft with 10 mm diameter and stainless steel material
- IP67 rated housing for protection against dust and water
- Operating temperature range from -40°C to +100°C
- Reverse polarity and short-circuit protection
- Low power consumption of ≤ 0.7 W
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-S4WA00600 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
