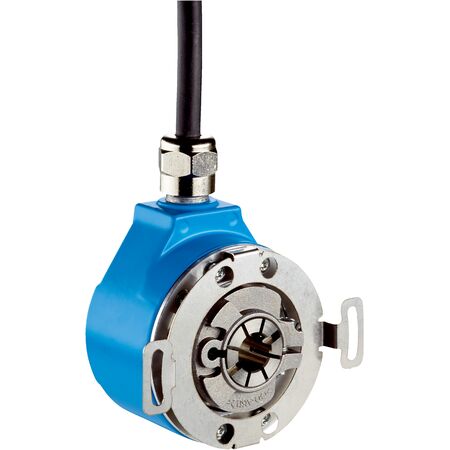

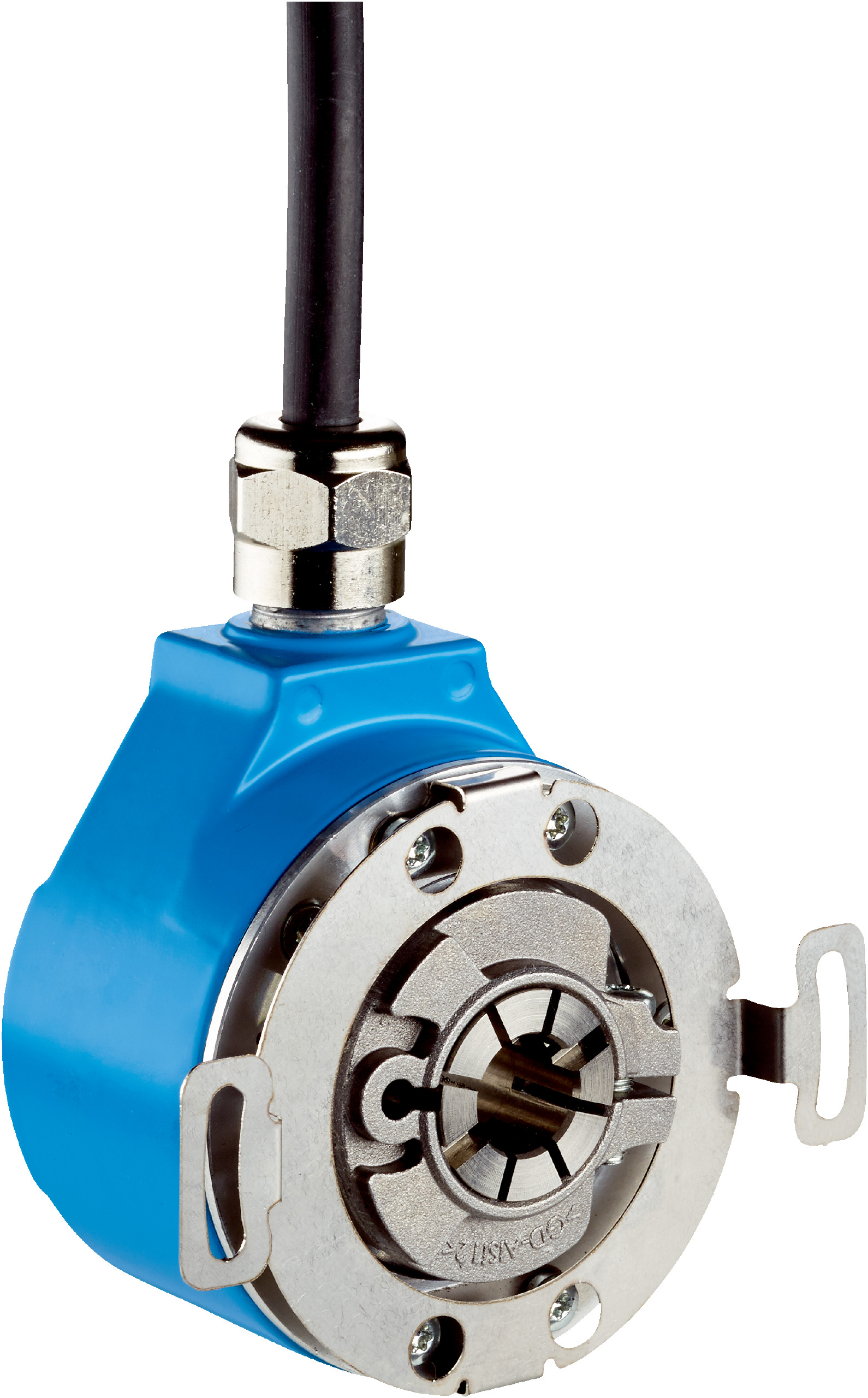

Incremental Encoder DFS22A-KCB1L065536 | 65,536 Pulses/Rev | IP65/IP67 Rated | by SICK
The Incremental Encoder DFS22A-KCB1L065536 offers high precision with 65,536 pulses per revolution, making it ideal for industrial automation and robotics applications. Designed for reliability, it features a robust mechanical design with a blind hollow shaft and operates within a temperature range of -30 °C to +85 °C. With reverse polarity and short-circuit protection, this encoder ensures safe and efficient performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS22A-KCB1L065536 | 65,536 Pulses/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1078212
Alternatively Known As: Incremental rotary encoder, high resolution encoder, industrial encoder, SICK encoder DFS22A, rotary position sensor
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step: ± 90°, electric/pulses per revolution
- Measuring step deviation: ± 0.002° pulses > 10,000
- Error limits: ± 0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- 0-set function: H-active, hardware pin controlled
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Cable, 9-wire, radial, 1.5 m
- Supply voltage: 8 to 30 V
- Reference signal: 1, positioned at 180°, gated with channel A
- Code sequence: Clockwise
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 3/8″ front clamp
- Flange type: 2-point stator coupling
- Shaft material: Stainless steel 1.4305
- Flange and housing material: Aluminum
- Start-up torque: 0.8 Ncm at +20 °C
- Operating torque: 0.6 Ncm at +20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.05 mm radial, ± 0.1 mm axial
- Operating speed: up to 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: –30 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 100 g, 11 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- High resolution with 65,536 pulses per revolution
- 6-channel incremental HTL / Push pull communication interface
- Robust mechanical design with blind hollow shaft and 3/8″ front clamp
- IP65 rated on shaft side and IP67 on housing side for protection against dust and water
- Operating temperature range from –30 °C to +85 °C
- Reverse polarity and short-circuit protection
- Low start-up torque of 0.8 Ncm and operating torque of 0.6 Ncm
- High reliability with MTTFD of 330 years according to EN ISO 13849-1
- Fast initialization time of 40 ms
- Resistance to shocks (100 g, 11 ms) and vibration (30 g, 10 Hz to 2000 Hz)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and configuration to ensure proper operation and safety compliance.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor and material handling systems
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption of 0.7 W helps reduce energy usage in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS22A-KCB1L065536 incremental encoder is available for immediate purchase, ideal for high-precision industrial automation and safety-related applications.
