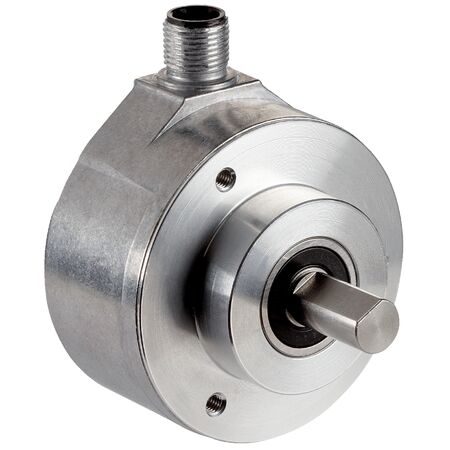

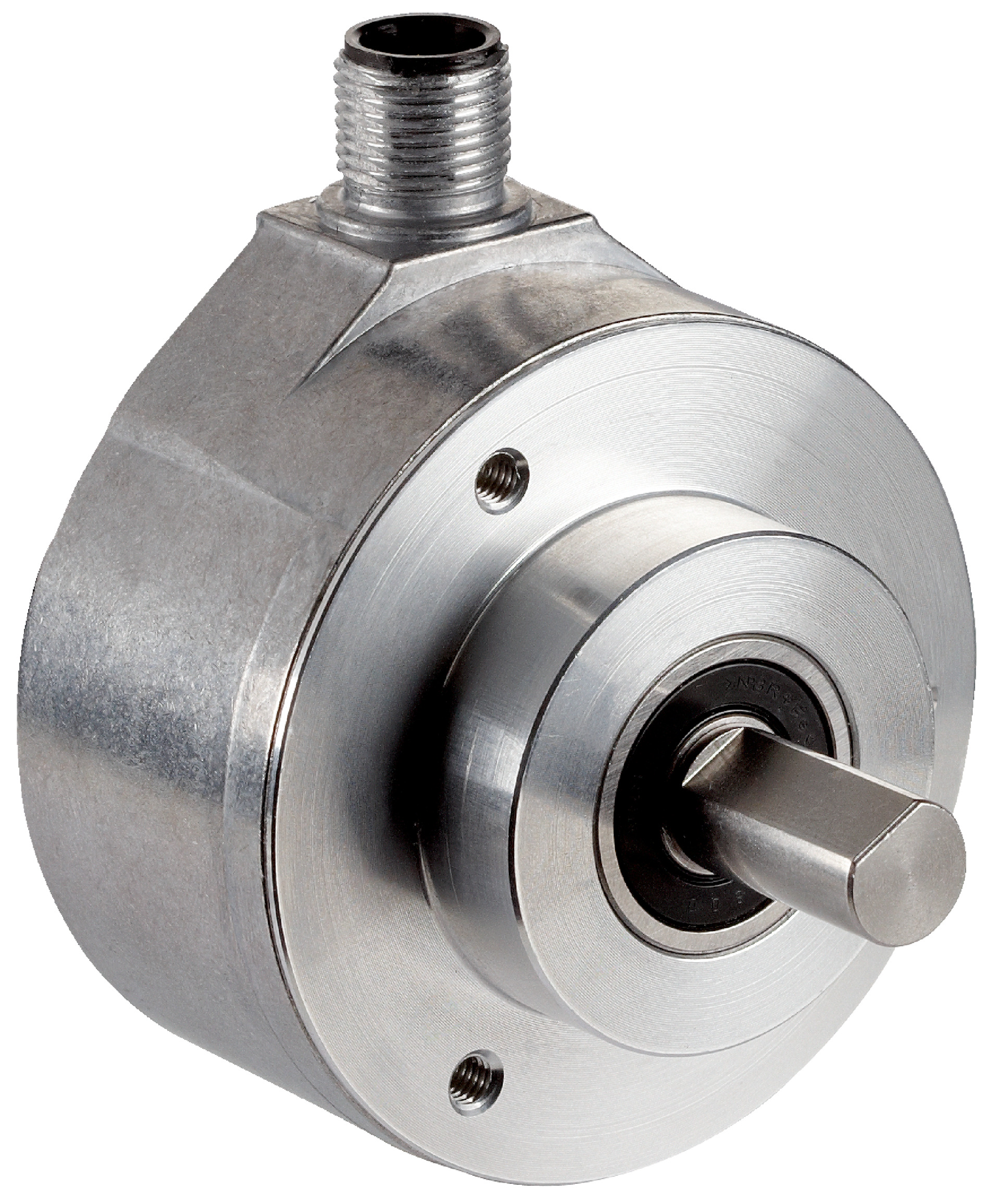

Incremental Encoder DFS60A-S4PC00S82 | 65,536 Pulses/Rev | IP67 Rated | by SICK
The Incremental Encoder DFS60A-S4PC00S82 offers high precision with 65,536 pulses per revolution and a robust design for industrial automation. Ideal for robotics and motion control, it features a TTL/HTL communication interface and operates in extreme temperatures from -40°C to +100°C. With low power consumption and high mechanical durability, this encoder is perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60A-S4PC00S82 | 65,536 Pulses/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1084201
Alternatively Known As: Incremental rotary encoder, high-resolution encoder, TTL encoder, industrial encoder, position encoder
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step deviation: ±0.0015°
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 32 V
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Operating speed: ≤ 9,000 min⁻¹
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 65,536 pulses per revolution
- TTL/HTL incremental communication interface
- 6-channel output with programmable configuration
- Robust solid shaft design with stainless steel shaft and aluminum housing
- IP67 rated housing side and IP65 shaft side for harsh environments
- Reverse polarity and short-circuit protection
- Operating temperature range from -40°C to +100°C
- Low power consumption of ≤ 0.7 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Machine tool feedback
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60A-S4PC00S82 Incremental Encoder is available for immediate purchase, ideal for precision industrial automation and motion control applications.
