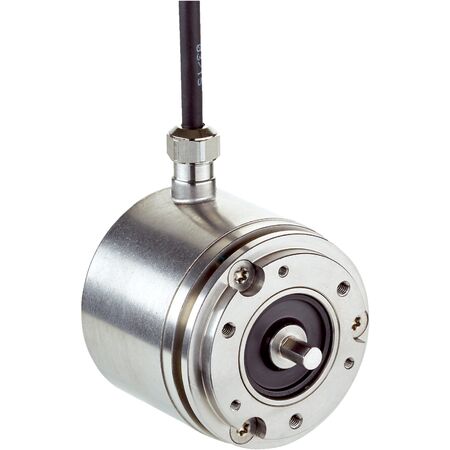

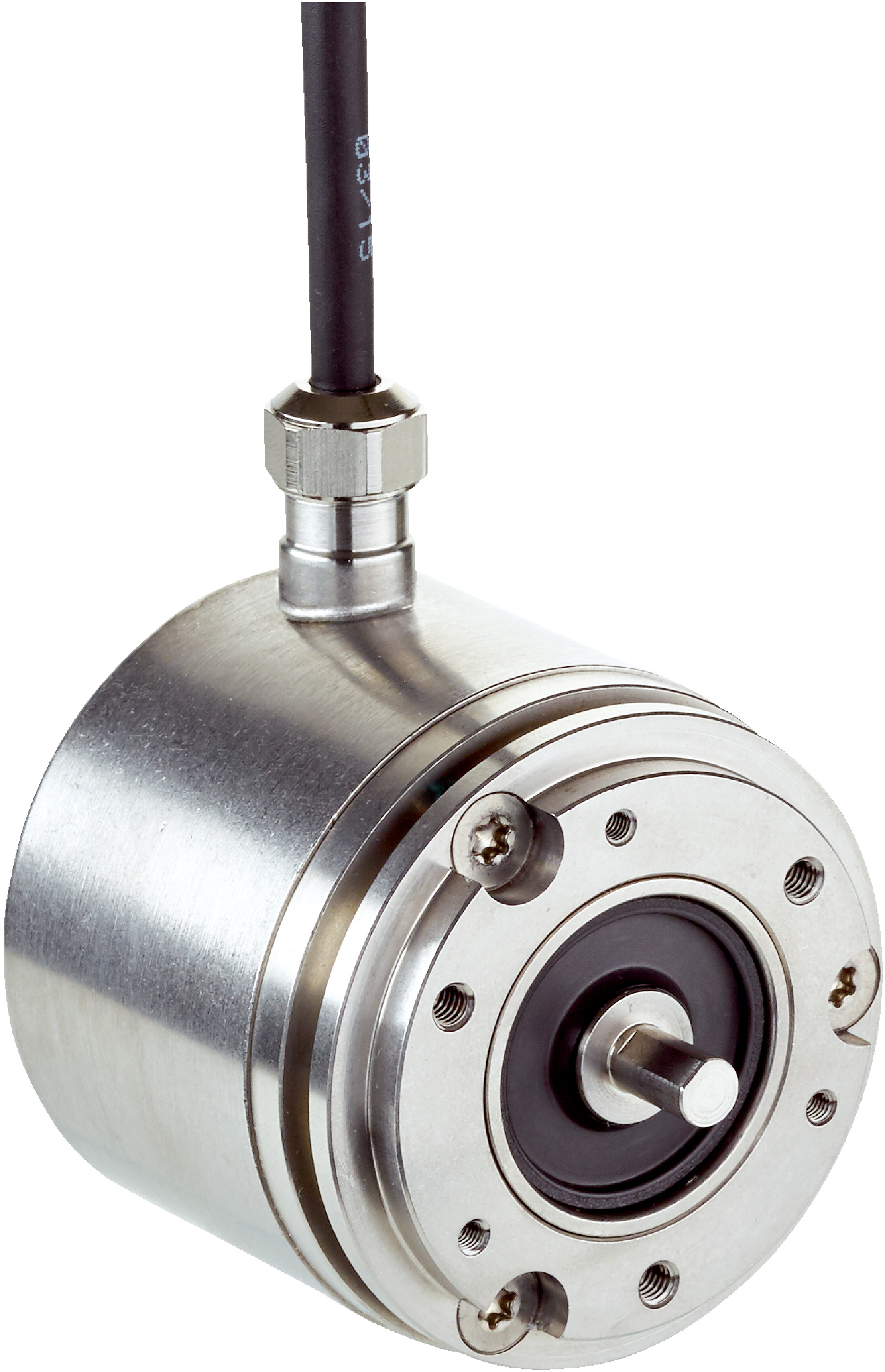

Incremental Encoder DFS60I-S1ML65536 | 65,536 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Encoder DFS60I-S1ML65536 offers high precision with 65,536 pulses per revolution, making it ideal for industrial automation and robotics. With an IP67 rated enclosure for dust and water protection, this encoder ensures reliable performance in harsh environments. Its robust stainless steel construction and low operating torque make it perfect for precise position and speed measurement in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-S1ML65536 | 65,536 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1131911
Alternatively Known As: Incremental rotary encoder, high resolution encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step deviation: ±0.0015°
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL, 6-channel
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.7 W (without load)
- Supply voltage: 4.5 to 32 V
- Connection type: 12-wire cable, 3 m radial
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Start-up torque: 1 Ncm
- Operating torque: 0.5 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Enclosure rating: IP67
- Operating temperature: -40°C to +100°C
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 65,536 pulses per revolution
- 6-channel incremental communication interface (TTL/HTL)
- Robust stainless steel V2A housing, shaft, and flange
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Operating temperature range from -40°C to +100°C
- Low start-up torque of 1 Ncm and operating torque of 0.5 Ncm
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
- Programmable and configurable output settings
- Fast initialization time of 30-32 ms
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring accurate rotary feedback
- Servo motor control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption of ≤ 0.7 W minimizes energy usage
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-S1ML65536 incremental encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
