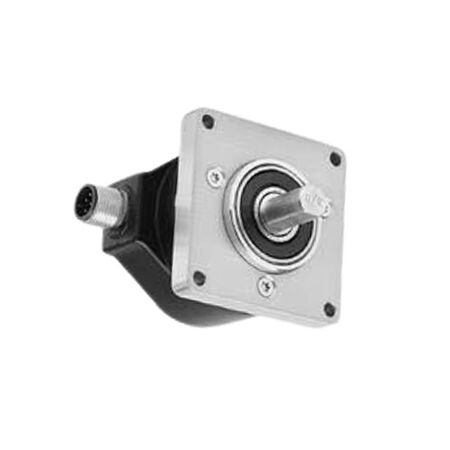

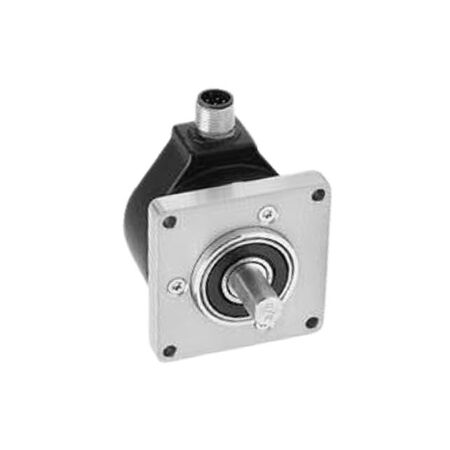

Incremental Encoder Allen-Bradley 847TDL1ARG02500 | 10 mm Shaft | 2500 Pulses/Rev | TTL Output | by Allen-Bradley
The Incremental Encoder Allen-Bradley 847TDL1ARG02500 features a standard square flange design and a 10 mm diameter shaft, making it ideal for industrial automation and control systems. With a TTL output and 2500 pulses per revolution, this encoder ensures precise rotational position and speed sensing, perfect for robotics and motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Standard square flange
- Shaft diameter: 10 mm with flat
- Voltage: 4.5-5.5 V line driver
- Output type: TTL (B-leads A, CW, Z gated with BN)
- Connector: MS 10-pin with mating connector
- Pulses per revolution: 2500
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.2 kg
Key Features
- Standard square flange design
- 10 mm diameter shaft with flat
- 4.5-5.5 volt line driver
- TTL output with B-leads A, CW, Z gated with BN
- MS connector with 10-pin and mating connector
- 2500 pulses per revolution
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with incremental encoders and electrical wiring standards.
Applications
- Industrial automation and control systems
- Rotational position and speed sensing
- Factory automation equipment
- Robotics and motion control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient machine operation reducing energy waste
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847TDL1ARG02500 Incremental Encoder is available for immediate purchase, ideal for industrial automation and control applications.
