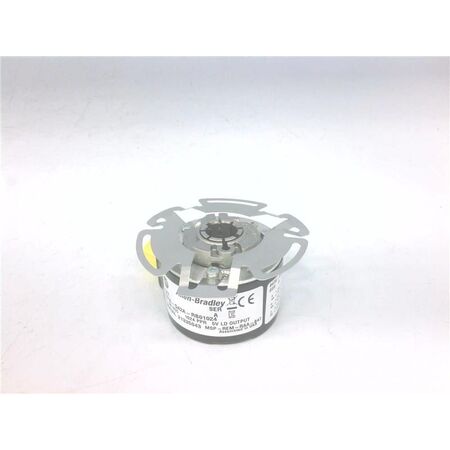

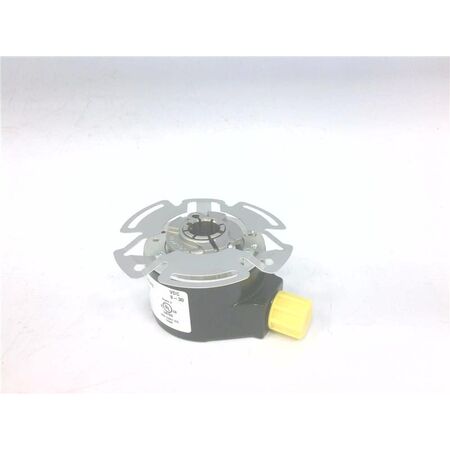

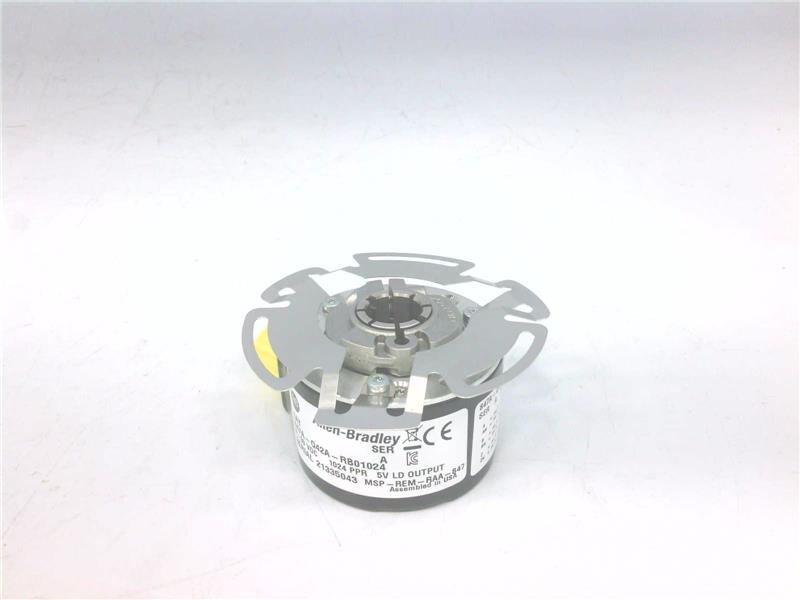

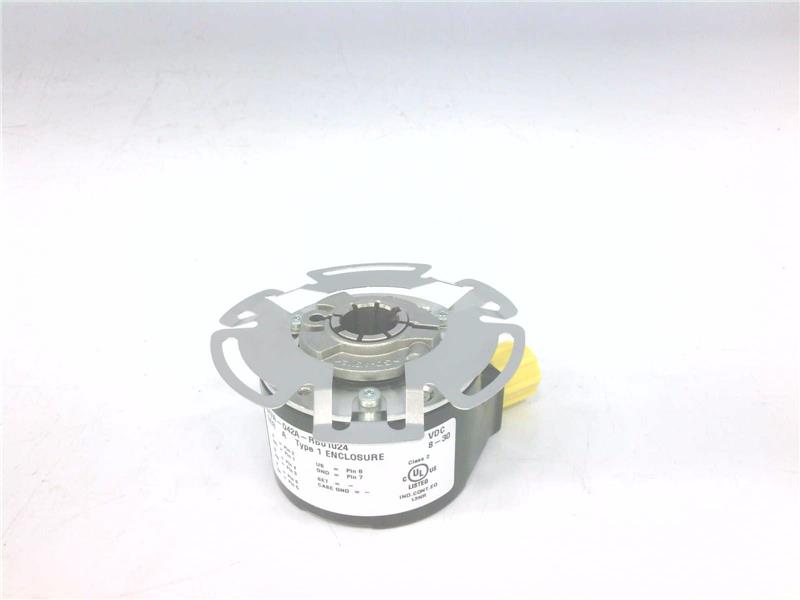

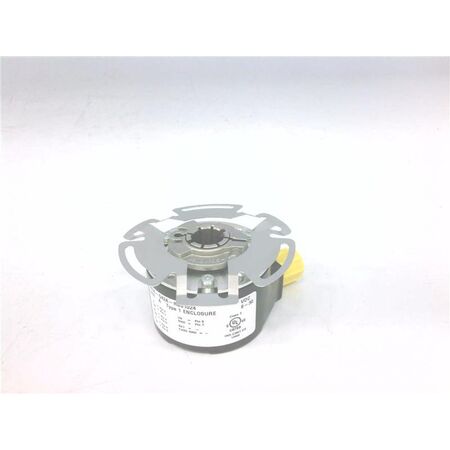

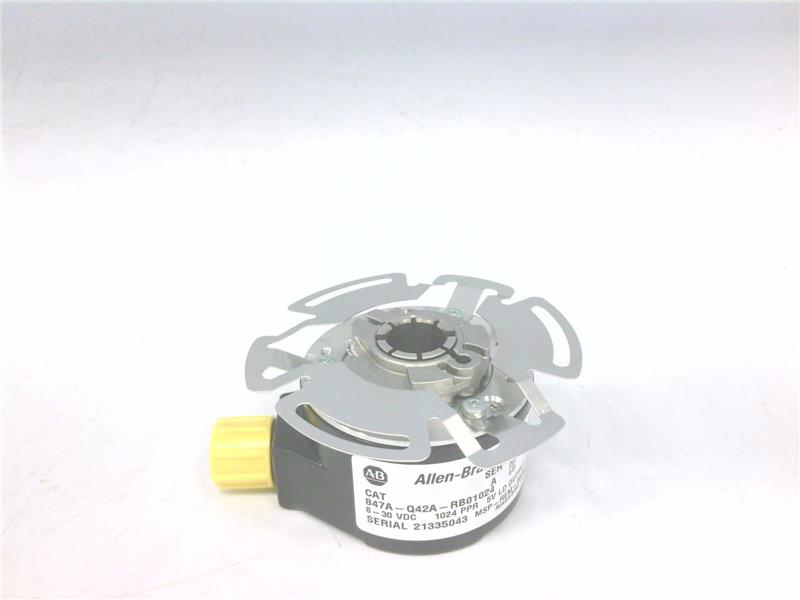

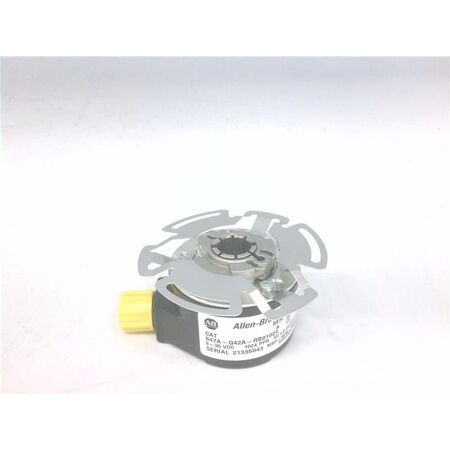

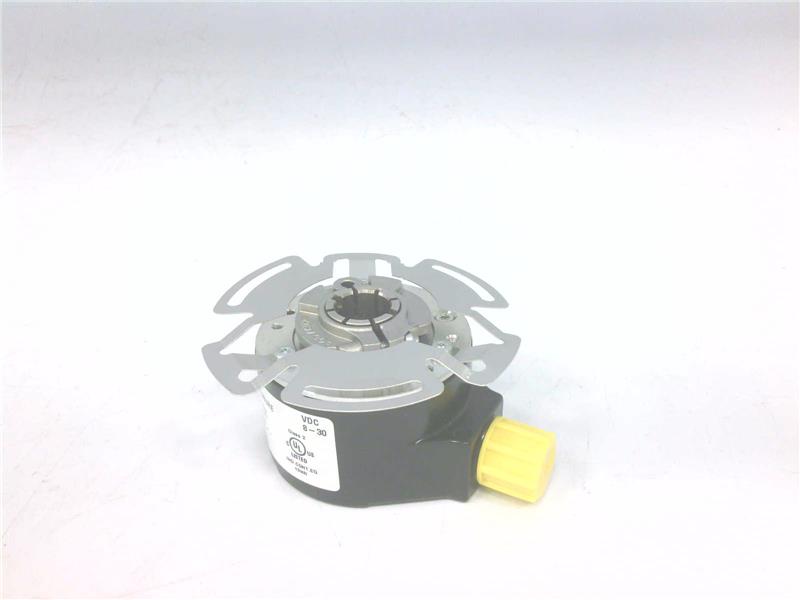

Product Name/Title: Allen-Bradley 847AQ42ARB01024 Incremental Encoder
Brand: Allen-Bradley
SKU: 847AQ42ARB01024
Alternatively Known As: Incremental rotary encoder, 1/2 inch hollow shaft encoder, Allen-Bradley rotary encoder
Technical Specifications
- Type: Incremental encoder
- Shaft: Blind hollow, 1/2 inch diameter
- Mounting: 3-point
- Output: 4.5-5.5 V TTL line driver
- Connector: M12 8-pin radial exit without mating connector
- Power Supply: 8-30 V DC
- Pulses Per Revolution: 1024 PPR
- Rotation: Clockwise (B leads A), Z gated with BN
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- Incremental encoder with 1024 pulses per revolution (PPR)
- Blind hollow shaft with 1/2 inch diameter
- 3-point mounting for secure installation
- Radial exit with M12 8-pin connector without mating connector
- Operates on 8-30 V DC power supply
- 4.5-5.5 V line driver (TTL) output
- B leads A, clockwise rotation, Z gated with BN
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connections.
Applications
- Industrial automation and control systems
- Robotics and machinery requiring precise position feedback
- Conveyor systems and motor feedback
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances energy efficiency by providing accurate motor feedback to reduce power consumption
- Durable design reduces waste and replacement frequency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847AQ42ARB01024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and control applications.
