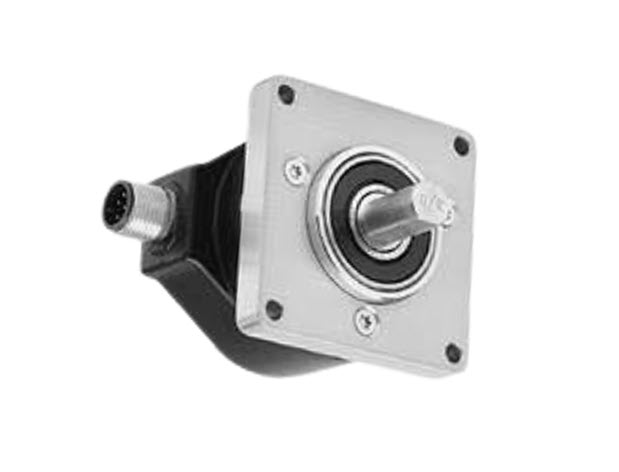

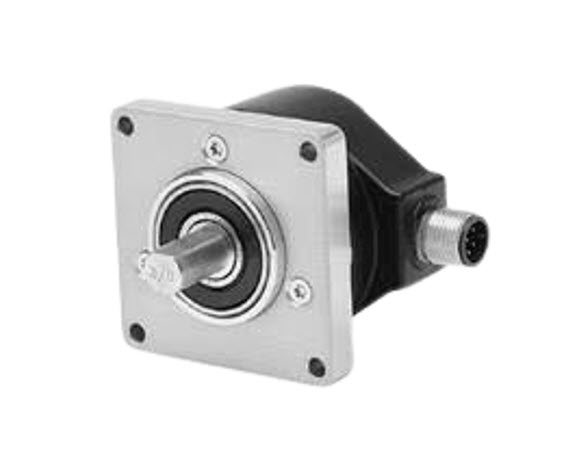

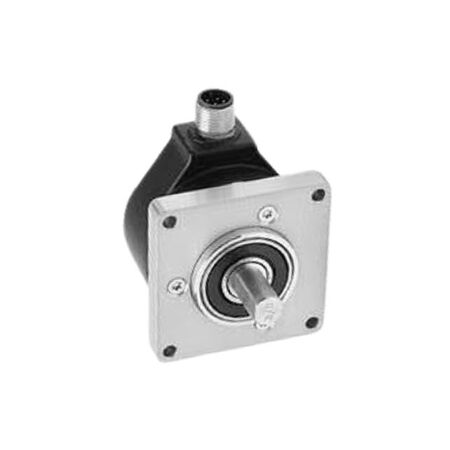

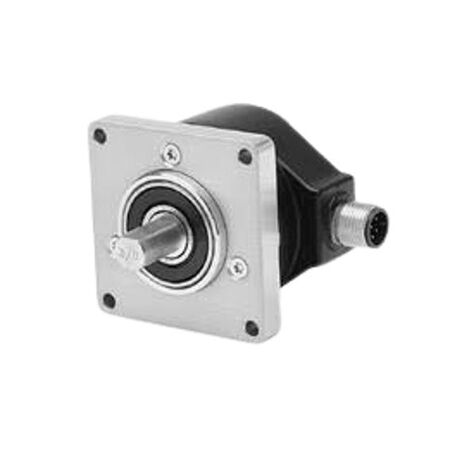

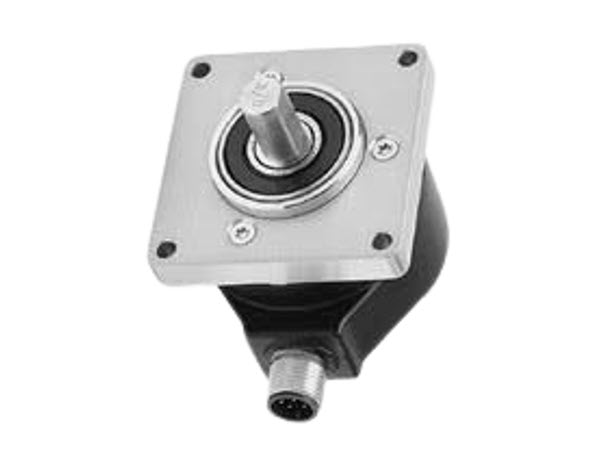

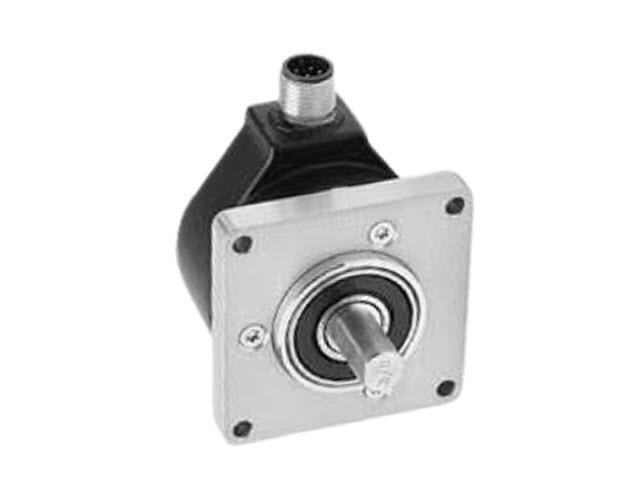

Product Name/Title: Allen-Bradley 847TDL1ARG02500 Incremental Encoder
Brand: Allen-Bradley
SKU: 847TDL1ARG02500
Alternatively Known As: Incremental rotary encoder, Allen-Bradley encoder, 10 mm shaft encoder, TTL incremental encoder
Technical Specifications
- Standard square flange
- Shaft diameter: 10 mm with flat
- Voltage: 4.5-5.5 V line driver
- Output type: TTL (B-leads A, CW, Z gated with BN)
- Connector: MS 10-pin with mating connector
- Pulses per revolution: 2500
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.2 kg
Key Features
- Standard square flange design
- 10 mm diameter shaft with flat
- 4.5-5.5 volt line driver
- TTL output with B-leads A, CW, Z gated with BN
- MS connector with 10-pin and mating connector
- 2500 pulses per revolution
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with incremental encoders and electrical wiring standards.
Applications
- Industrial automation and control systems
- Rotational position and speed sensing
- Factory automation equipment
- Robotics and motion control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient machine operation reducing energy waste
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847TDL1ARG02500 Incremental Encoder is available for immediate purchase, ideal for industrial automation and control applications.
