Incremental Encoder Allen-Bradley 847TDN2ARG02000 | 2000 Pulses/Rev | 3/8 Inch Shaft | TTL Output | by Allen-Bradley
Incremental Encoder Allen-Bradley 847TDN2ARG02000 | 2000 Pulses/Rev | 3/8 Inch Shaft | TTL Output | by Allen-Bradley
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

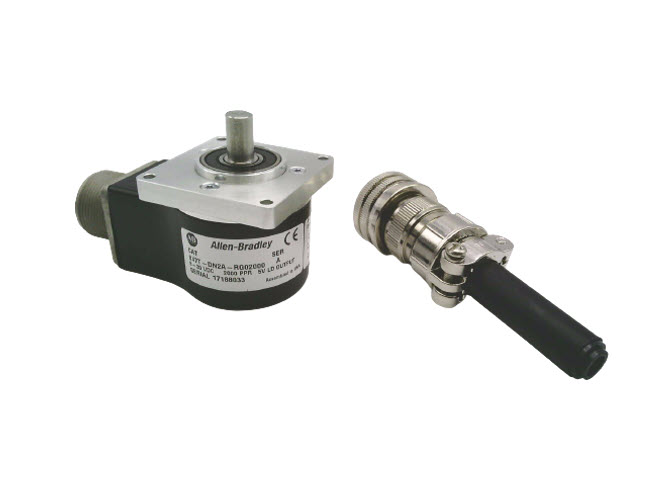

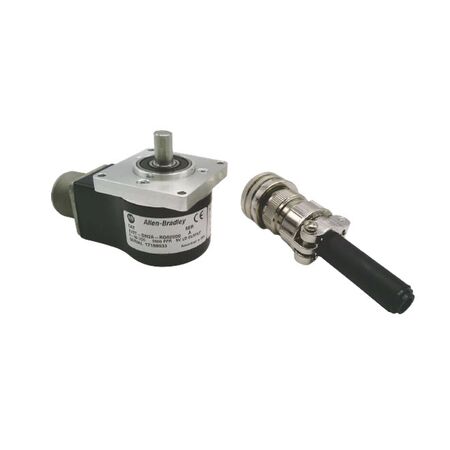

Product Name/Title: Allen-Bradley 847TDN2ARG02000 Incremental Encoder
Brand: Allen-Bradley
SKU: 847TDN2ARG02000
Alternatively Known As: Incremental rotary encoder, Allen-Bradley shaft encoder, 847TDN2ARG encoder
Technical Specifications
- Type: Incremental encoder
- Flange: Standard square flange
- Shaft Diameter: 3/8 inch with flat
- Output: 4.5-5.5 V line driver, TTL (B-leads-A, CW, Z gated with BN)
- Connector: MS 10-pin with mating connector
- Resolution: 2000 pulses per revolution
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.2 kg
Key Features
- Standard square flange design
- 3/8 inch diameter shaft with flat
- 4.5-5.5 volt line driver
- TTL output with B-leads and A, B, Z gated signals
- MS 10-pin connector with mating connector included
- 2000 pulses per revolution for high resolution
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and machinery requiring precise position feedback
- Conveyor systems and motor feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports energy-efficient motor control by providing accurate feedback
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847TDN2ARG02000 Incremental Encoder is available now for immediate purchase. Ideal for industrial automation and precise motion control applications.
