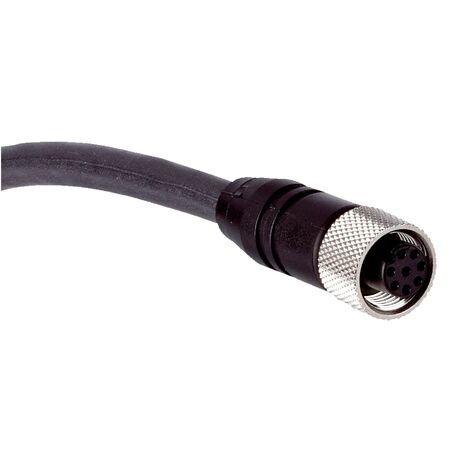

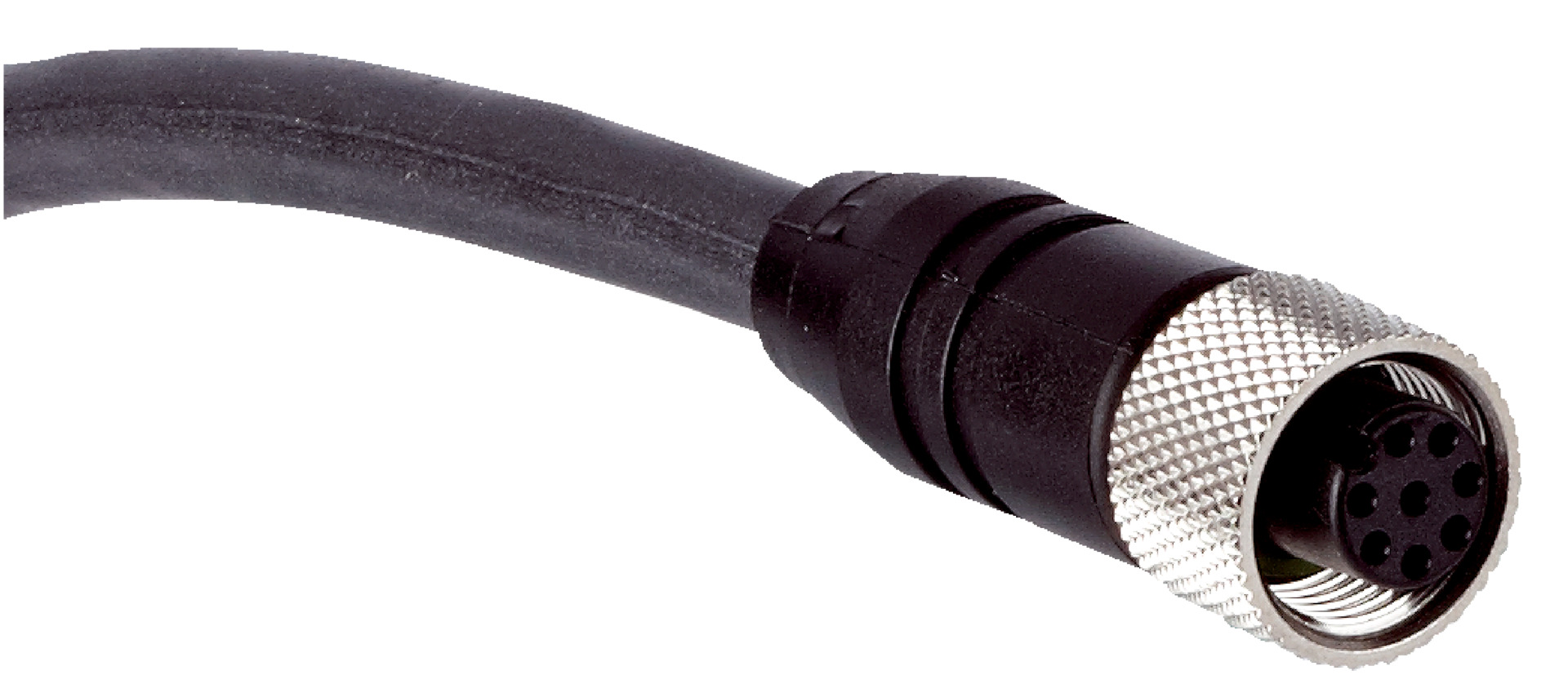

Incremental Encoder Cable | M12 8-Pin Female Connector | Shielded & Halogen-Free | IP67 Rated | by SICK
The Incremental Encoder Cable is designed for reliable signal transmission in industrial automation systems. Featuring a female M12 8-pin straight connector and flying leads, this shielded cable ensures flexibility and durability in harsh environments. With an IP67 rating and an operating temperature range of -50°C to +80°C, it's perfect for incremental encoder connections and other demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder Cable | M12 8-Pin Female Connector | Shielded & Halogen-Free | IP67 Rated | by SICK
Brand: SICK
SKU: 6032867
Alternatively Known As: Incremental encoder cable, SSI sensor cable, M12 8-pin sensor cable, shielded sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: CuZn, nickel-plated brass
- Tightening torque: 0.5 Nm
- Cable length: 5 m
- Cable type: 8-wire, PUR, halogen-free
- Cable diameter: 7 mm
- Conductor cross section: 0.25 mm², 4 x 2 x 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: > 2,000,000
- Reference voltage: ≤ 36 V AC/DC
- Current loading: 2 A
- Signal type: Incremental, SSI
- Enclosure rating: IP67
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -50 °C to +80 °C
- Operating temperature head: -25 °C to +80 °C
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.2 kg
Key Features
- Female M12 8-pin straight connector on head A
- Flying leads on head B for flexible connection
- Shielded cable with PUR halogen-free jacket
- High bending radius for flexible and stationary use
- Operating temperature range from -50°C to +80°C
- IP67 rated enclosure for dust and water protection
- Supports incremental and SSI signal types
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation systems
- Incremental encoder connections
- Signal transmission in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-1208-G05MAC1 sensor cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
