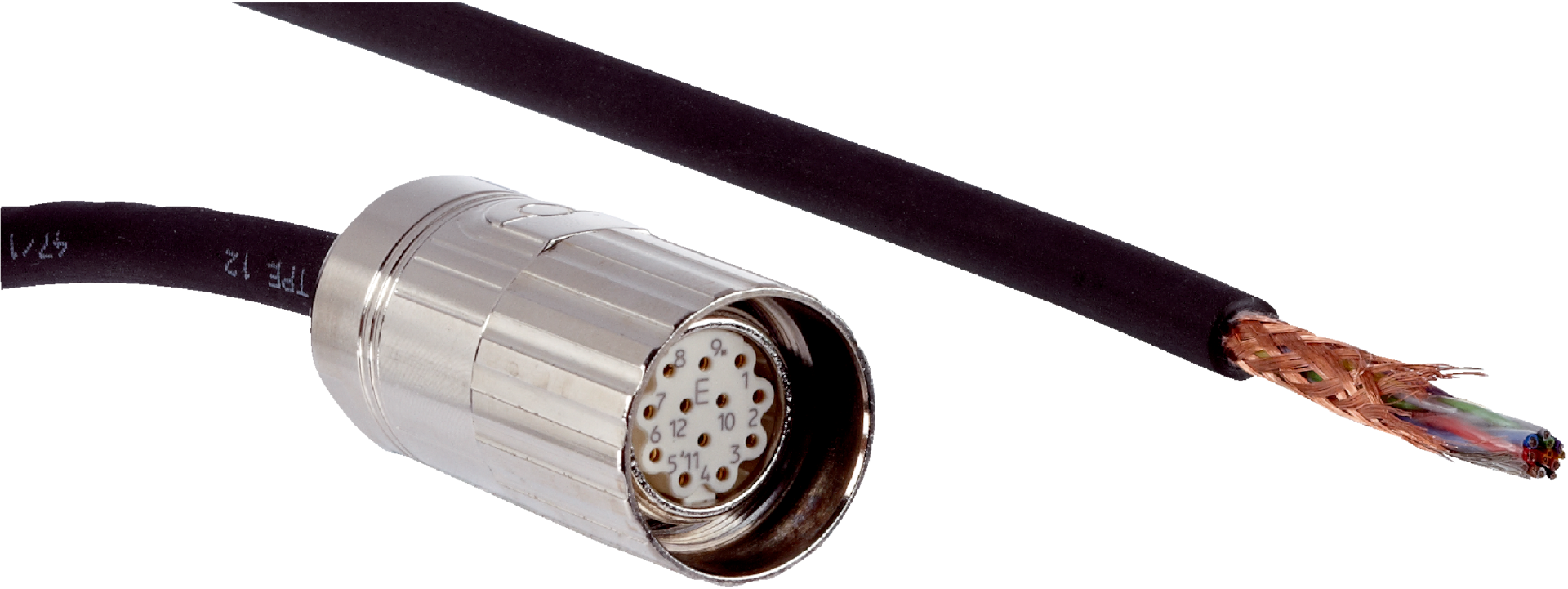

Incremental Encoder Cable M23 12-Pin | 10m PUR Halogen-Free | IP66/IP67 Rated | by SICK
The Incremental Encoder Cable M23 12-Pin is designed for reliable signal transmission in industrial automation systems. With a 10m halogen-free PUR cable and IP66/IP67 enclosure rating, it’s perfect for environments with oils and lubricants. Featuring a female connector and flying leads, this cable ensures robust performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Incremental encoder cable, M23 12-pin encoder cable, SICK encoder connector cable
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight
- Connection type head B: Flying leads
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m
- Cable type: 12-wire, PUR, halogen-free
- Jacket color: Black
- Cable diameter: 7.8 mm
- Conductor cross section: 4 x 2 x 0.25 mm² + 2 x 0.5 mm² + 2 x 0.14 mm²
- Shielding: Shielded
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 7.5 x cable diameter
- Reference voltage: ≤ 160 V
- Current loading: 7 A
- Signal type: Incremental
- Enclosure rating: IP66/IP67
- Dimensions (H x L x W): 20mm x 10000mm x 20mm
- Weight: 0.5 kg
Key Features
- Female connector, M23, 12-pin, straight on head A
- Flying leads on head B
- Zinc die-cast, nickel-plated locking nut
- 10 m PUR halogen-free cable, black jacket
- Shielded cable with multiple conductor cross sections
- High bending radius for stationary and drag chain operation
- IP66/IP67 enclosure rating for robust protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation systems
- Zones with oils and lubricants
- Machinery requiring incremental signal transmission
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces environmental impact and improves safety in case of fire.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

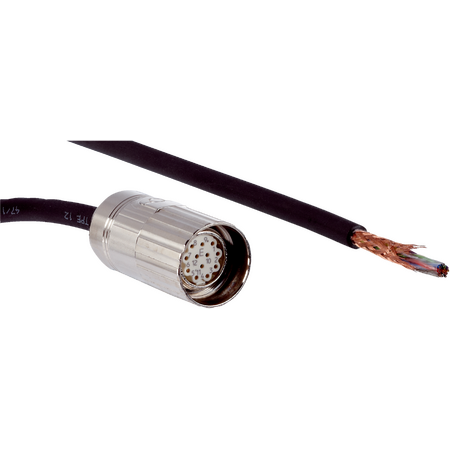

The SICK DOL-2312-G10MMA3 incremental encoder cable assembly is available for immediate purchase, ideal for industrial automation and machinery applications requiring robust and reliable signal transmission.
