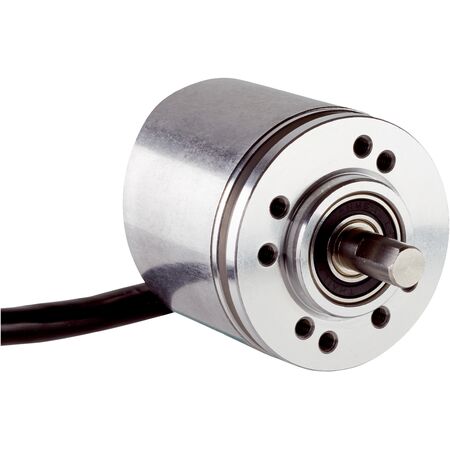

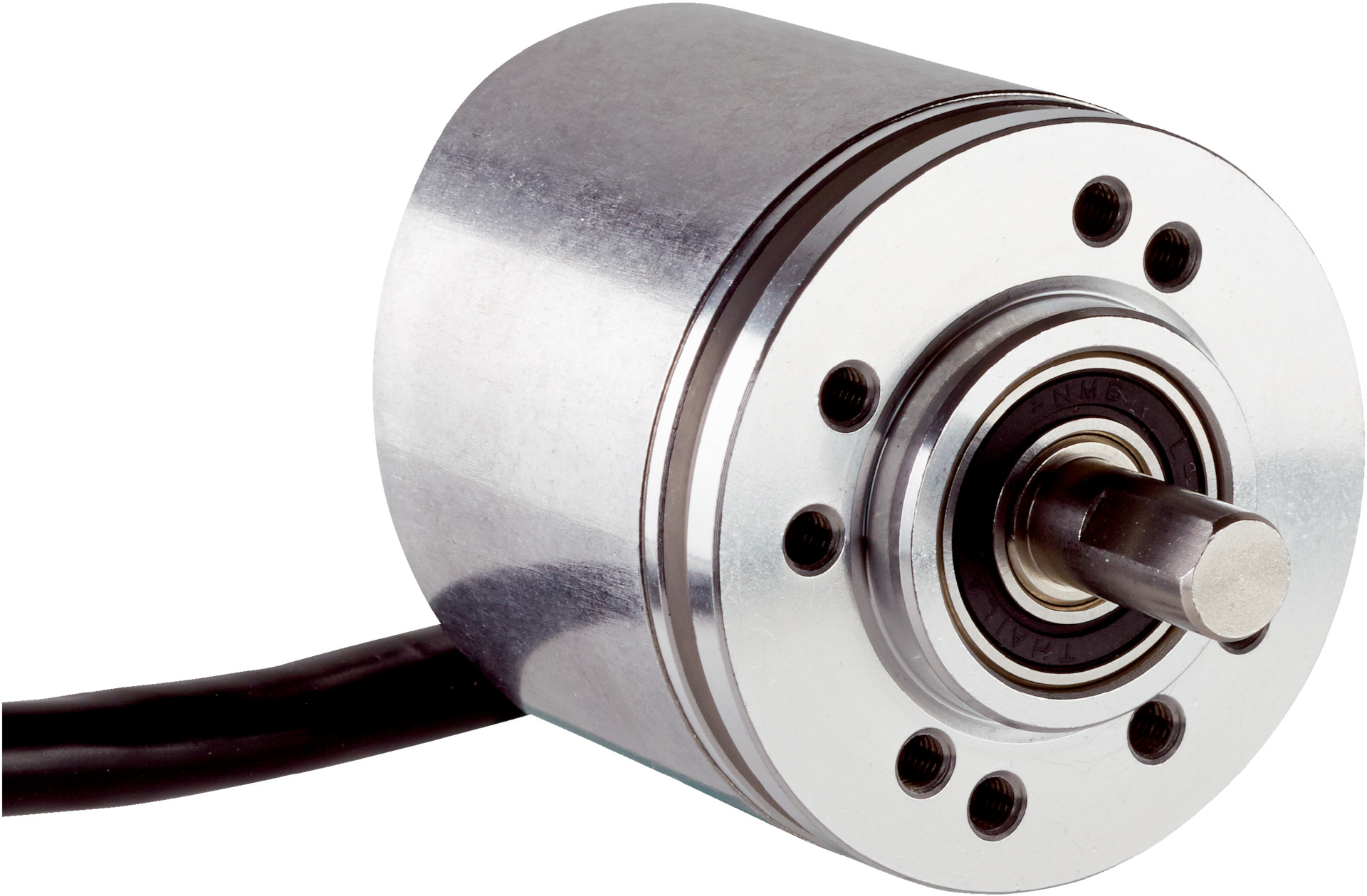

Incremental Encoder DBS36E-S3AM00600 | 600 PPR | 6-Channel TTL/RS-422 | IP65 Rated | by SICK
The Incremental Encoder DBS36E-S3AM00600 features 600 pulses per revolution and a 6-channel incremental communication interface, making it ideal for precise position and speed measurement in industrial automation. With a robust IP65 rated enclosure, it ensures reliable performance in harsh environments, perfect for robotics, conveyor systems, and machine tool feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS36E-S3AM00600 | 600 PPR | 6-Channel TTL/RS-422 | IP65 Rated | by SICK
Brand: SICK
SKU: 1081646
Alternatively Known As: Incremental rotary encoder, 600 PPR encoder, SICK rotary encoder, industrial position sensor
Technical Specifications
- Pulses per revolution: 600
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulse
- Error limits: ±54° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 3 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Operating current: ≤ 50 mA (no load)
- Connection type: 8-wire cable, 5 m length
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90° electric
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 6 mm with flat
- Shaft length: 12 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start-up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: 6,000 min⁻¹ typical, max 8,000 min⁻¹
- Moment of inertia of rotor: 0.6 gcm²
- Bearing lifetime: 2 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C (extended range on request)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.15 kg
Key Features
- 600 pulses per revolution for precise measurement
- 6-channel incremental communication interface with TTL / RS-422
- Solid shaft with 6 mm diameter and face mount flange
- High operating speed up to 8,000 min⁻¹
- IP65 rated enclosure for dust and water protection
- Short-circuit protected outputs
- Low start-up torque of 0.5 Ncm
- Operating temperature range from -20 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption electronics for energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS36E-S3AM00600 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
