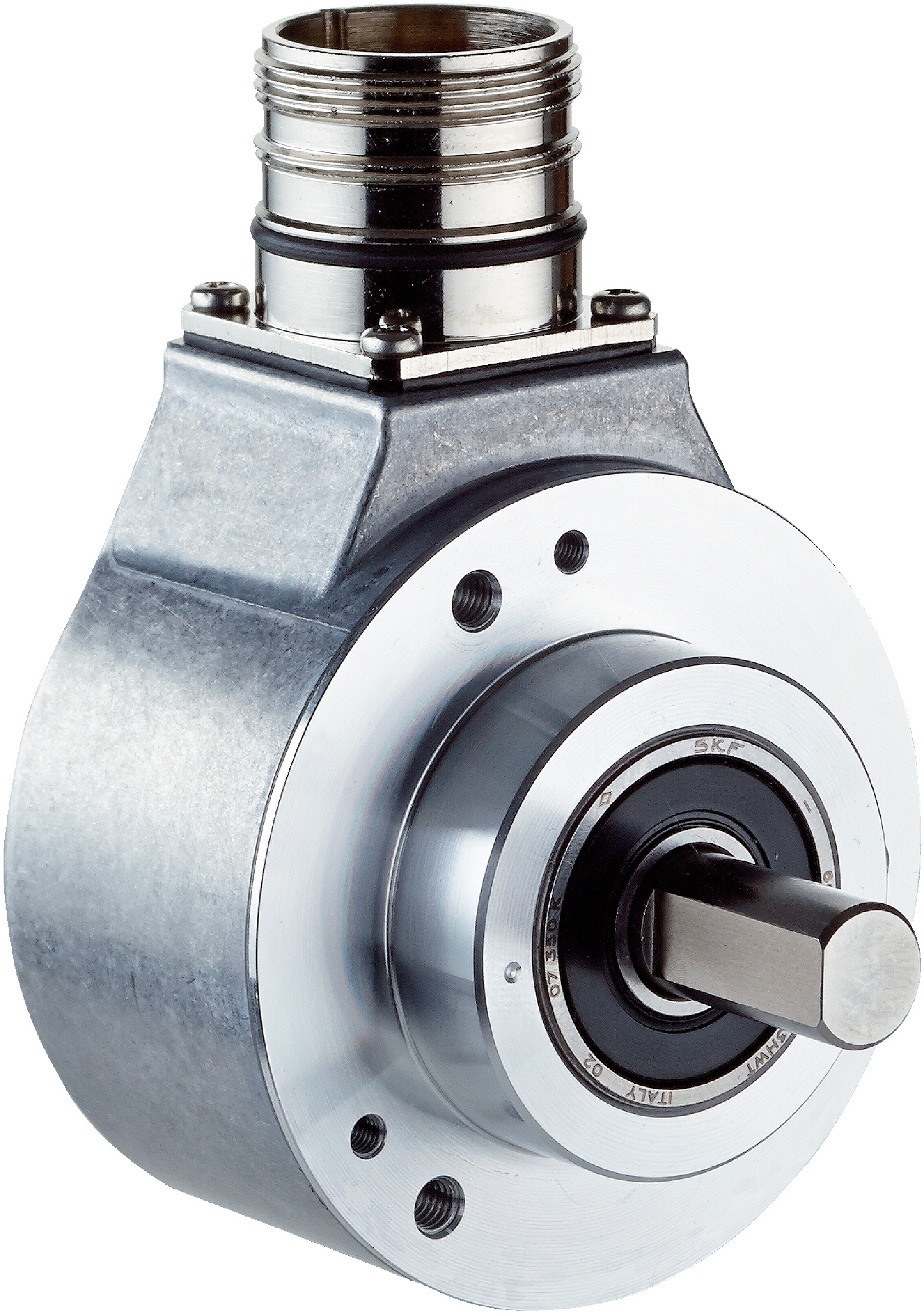

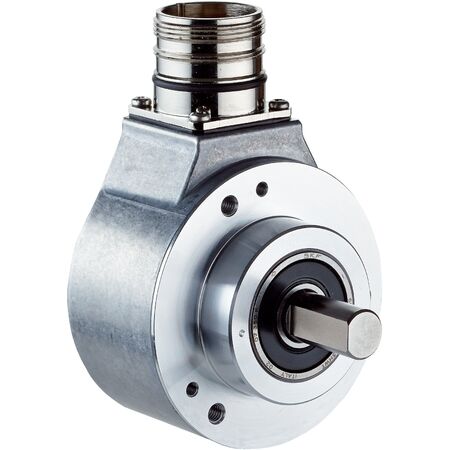

Incremental Encoder DBS60B-S4HA08192 | 8192 Pulses/Rev | IP67 & IP65 Rated | by SICK
The Incremental Encoder DBS60B-S4HA08192 features a high resolution of 8,192 pulses per revolution, making it ideal for precise motion control in industrial automation. With an incremental TTL/RS-422 communication interface and robust mechanical design, it ensures reliable performance in harsh environments. Perfect for robotics, conveyor systems, and machine tool feedback, this encoder is built to withstand extreme temperatures and offers long-lasting durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60B-S4HA08192 | 8192 Pulses/Rev | IP67 & IP65 Rated | by SICK
Brand: SICK
SKU: 1092457
Alternatively Known As: Incremental rotary encoder, high resolution encoder, industrial encoder, SICK DBS60 encoder
Technical Specifications
- Pulses per revolution: 8,192
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 36° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 10%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: 1.2 Ncm at 20°C
- Operating torque: 1.1 Ncm at 20°C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 60mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 8,192 pulses per revolution
- Incremental TTL / RS-422 communication interface
- 6-channel output with reference signal logically gated with A and B
- Robust mechanical design with solid shaft and face mount flange
- IP67 rated housing side and IP65 shaft side for harsh environments
- Wide operating temperature range from -20°C to +85°C
- Reverse polarity and short-circuit protection
- Low power consumption of ≤ 1 W without load
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime and high resistance to shock and vibration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety compliance.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool feedback and positioning
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60B-S4HA08192 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
