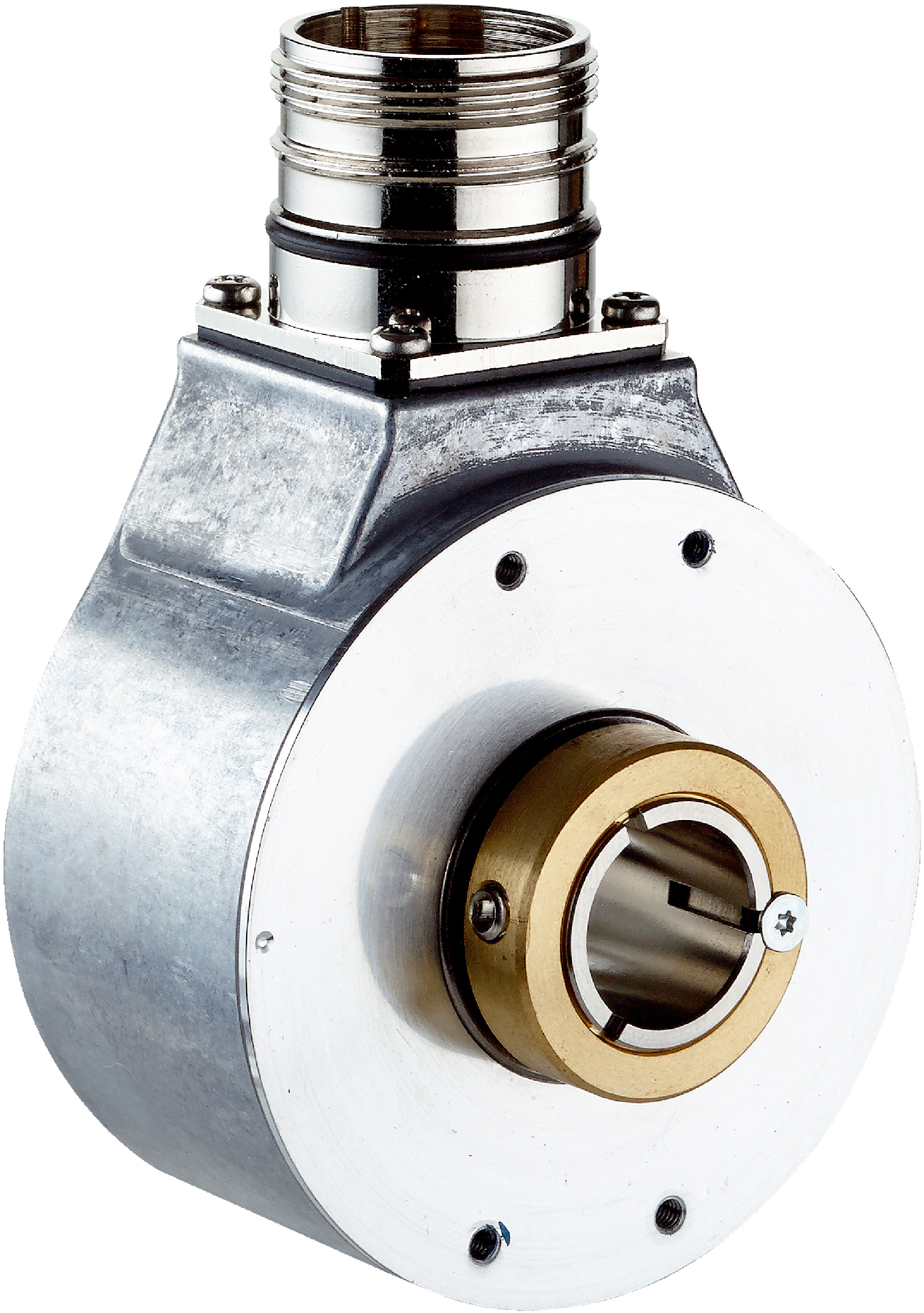

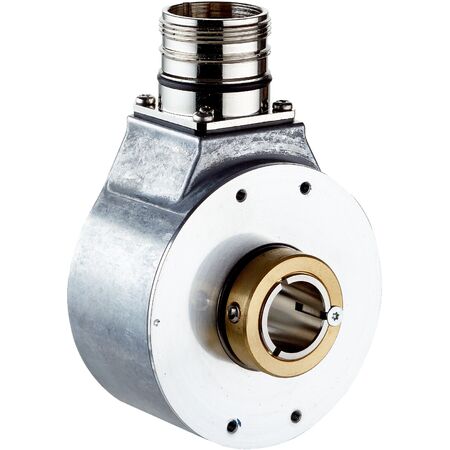

Incremental Encoder DBS60E-TDCAA1024 | 1024 Pulses/Rev | TTL/RS-422 Interface | IP65 Rated | by SICK
The Incremental Encoder DBS60E-TDCAA1024 features 1024 pulses per revolution and a TTL/RS-422 communication interface with 6 signal channels. Designed for industrial automation, robotics, and motion control systems, it offers high reliability and operates in extreme temperatures from -30 °C to +100 °C. With a robust aluminum housing and IP65 protection, this encoder ensures precise position and speed measurement in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-TDCAA1024 | 1024 Pulses/Rev | TTL/RS-422 Interface | IP65 Rated | by SICK
Brand: SICK
SKU: 1073146
Alternatively Known As: Incremental rotary encoder, SICK DBS60 encoder, 1024 PPR encoder, rotary position sensor
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 10 mm (front clamp)
- Flange type: Without stator coupling, flange with 4 x M2.5
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: > 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6000 min⁻¹
- Maximum operating speed: 9000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 housing and shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- TTL / RS-422 communication interface with 6 signal channels
- Through hollow shaft mechanical design with 10 mm shaft diameter
- High operating speed up to 6000 min⁻¹, max 9000 min⁻¹
- Robust aluminum housing and flange with IP65 protection
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- High reliability with MTTFD of 500 years (EN ISO 13849-1)
- Operating temperature range from -30 °C to +100 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-TDCAA1024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
