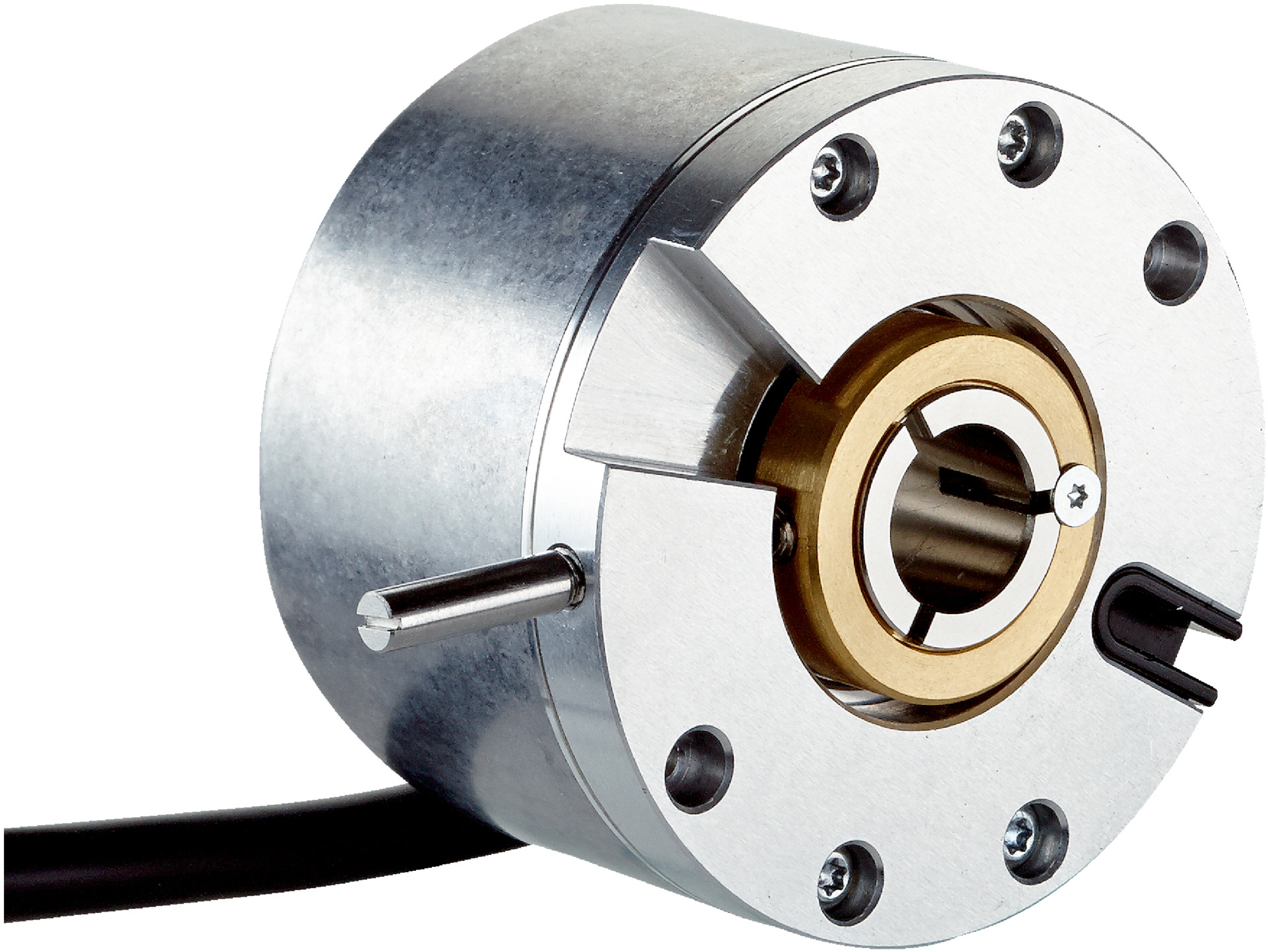

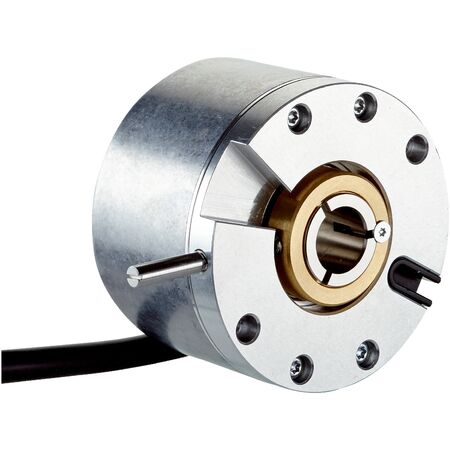

Incremental Encoder DBS60E-B5AJC1024 | 1024 Pulses/Rev | IP67 & IP65 Protection | High Speed 9000 min⁻¹ | by SICK
The Incremental Encoder DBS60E-B5AJC1024 features 1024 pulses per revolution and a robust aluminum housing with IP67 and IP65 protection, making it ideal for industrial automation and robotics applications. With a high operating speed of up to 9000 min⁻¹ and reverse polarity protection, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-B5AJC1024 | 1024 Pulses/Rev | IP67 & IP65 Protection | High Speed 9000 min⁻¹ | by SICK
Brand: SICK
SKU: 1119588
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, pulse encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA (without load)
- Connection type: Cable, 8-wire, universal, 0.5 m
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 12 mm front clamp
- Flange type: Axial and radial register pin mounting for 4 mm register pin
- Shaft material: Stainless steel with plastic shaft
- Flange material: Aluminum
- Housing material: Aluminum
- Cable material: PVC
- Start-up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 200,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 200 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- TTL / RS-422 communication interface with 6 signal channels
- Robust aluminum housing with IP67 (housing side) and IP65 (shaft side) protection
- Blind hollow shaft design with 12 mm stainless steel shaft
- High operating speed up to 9000 min⁻¹
- Reverse polarity and short-circuit protection
- Low start-up torque of 0.5 Ncm and operating torque of 0.4 Ncm
- High bearing lifetime of 3.6 x 10⁹ revolutions
- Operating temperature range from -20 °C to +85 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper alignment, wiring, and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Rotational speed and position measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption electronics contribute to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-B5AJC1024 Incremental Encoder is available for immediate purchase, ideal for industrial automation, robotics, and motion control applications.
