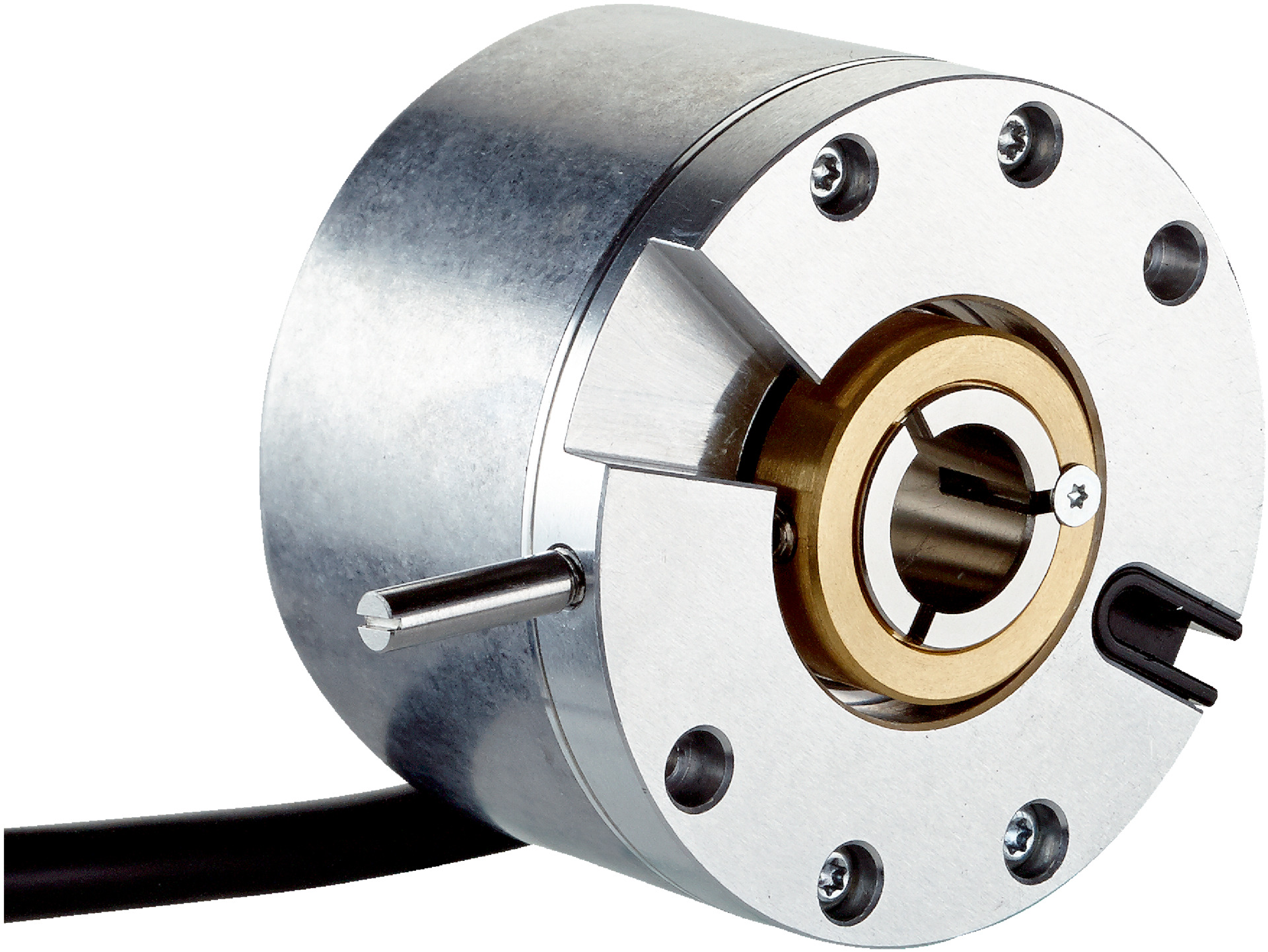

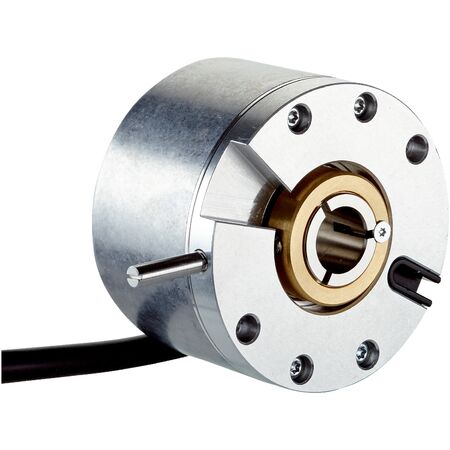

Incremental Encoder DBS60E-B5EPC1024 | 1024 Pulses/Rev | 6-Channel HTL | IP67 Rated | by SICK
The Incremental Encoder DBS60E-B5EPC1024 features 1024 pulses per revolution and a robust 6-channel HTL communication interface, making it ideal for industrial automation and precise motion control. With a blind hollow shaft design and high operating speed of up to 9,000 min⁻¹, this encoder ensures reliable performance in demanding environments, while its IP67 rating provides excellent protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-B5EPC1024 | 1024 Pulses/Rev | 6-Channel HTL | IP67 Rated | by SICK
Brand: SICK
SKU: 1091992
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, pulse encoder
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6-channel
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Cable, 8-wire, with male M12 8-pin connector, 0.5 m
- Supply voltage: 10 ... 27 V
- Reference signal: 1 at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 12 mm front clamp
- Flange type: Axial and radial register pin mounting for 4 mm register pin
- Shaft material: Stainless steel with plastic shaft
- Flange material: Aluminum
- Housing material: Aluminum
- Cable material: PVC
- Start up torque: + 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 200,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –20 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 200 g, 3 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- 6-channel HTL / Push pull communication interface
- Blind hollow shaft mechanical design with 12 mm shaft diameter
- High operating speed up to 9,000 min⁻¹
- Robust aluminum housing with IP67 rating on housing side
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 1 W without load
- Operating temperature range from –20 °C to +85 °C
- High resistance to shocks (200 g) and vibration (30 g)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-B5EPC1024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
