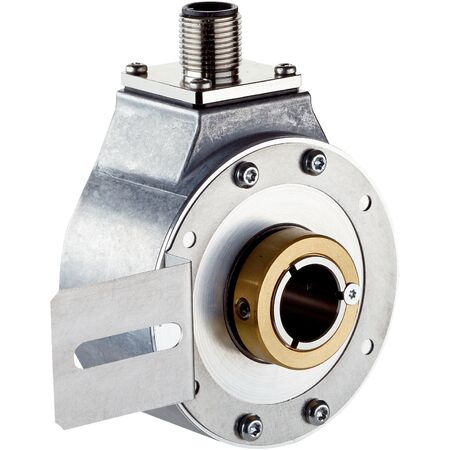

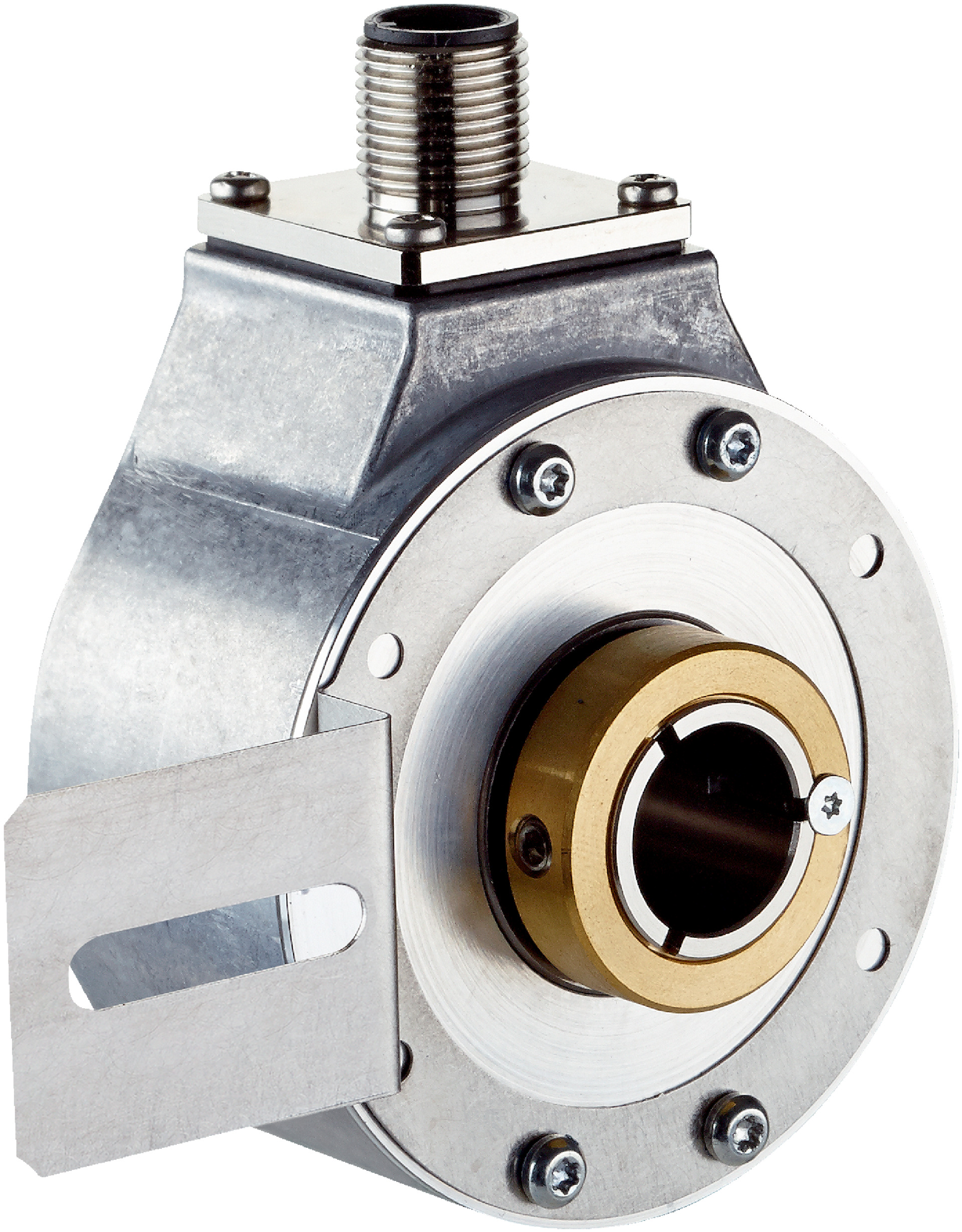

Incremental Encoder DBS60E-BAACD1024 | 1024 Pulses/Rev | 6-Channel TTL/RS-422 | IP67 Rated | by SICK
The Incremental Encoder DBS60E-BAACD1024 features 1024 pulses per revolution and a robust 6-channel TTL/RS-422 communication interface, making it ideal for industrial automation and robotics. With a blind hollow shaft design and high operating speeds up to 6000 min⁻¹, this encoder ensures precise position and speed measurement, while its IP67 rating provides excellent dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-BAACD1024 | 1024 Pulses/Rev | 6-Channel TTL/RS-422 | IP67 Rated | by SICK
Brand: SICK
SKU: 1082501
Alternatively Known As: Incremental rotary encoder, rotary encoder 1024 PPR, SICK DBS60 encoder, incremental shaft encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 6 mm front clamp
- Flange type: 1-sided stator coupling with slot
- Weight: approx. 0.25 kg
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start-up torque: approx. 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6000 min⁻¹
- Maximum operating speed: 9000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- 6-channel TTL / RS-422 communication interface
- Blind hollow shaft design with 6 mm shaft diameter
- High operating speed up to 6000 min⁻¹, max 9000 min⁻¹
- Robust aluminum housing and flange with stainless steel shaft
- IP67 rated housing side and IP65 shaft side for dust and water protection
- Reverse polarity and short-circuit protection
- Low start-up torque of 0.5 Ncm and operating torque of 0.4 Ncm
- Operating temperature range from -20 °C to +85 °C
- High resistance to shocks (250 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- Safety-related applications requiring reliable encoder feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BAACD1024 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
