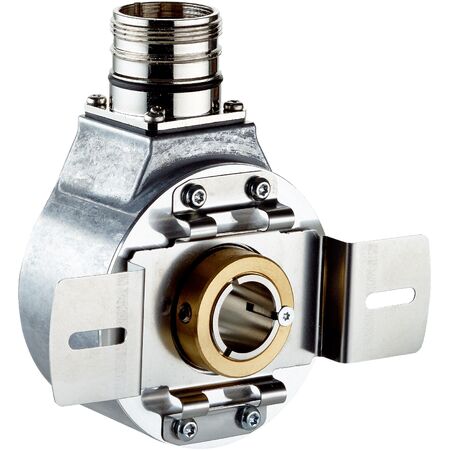

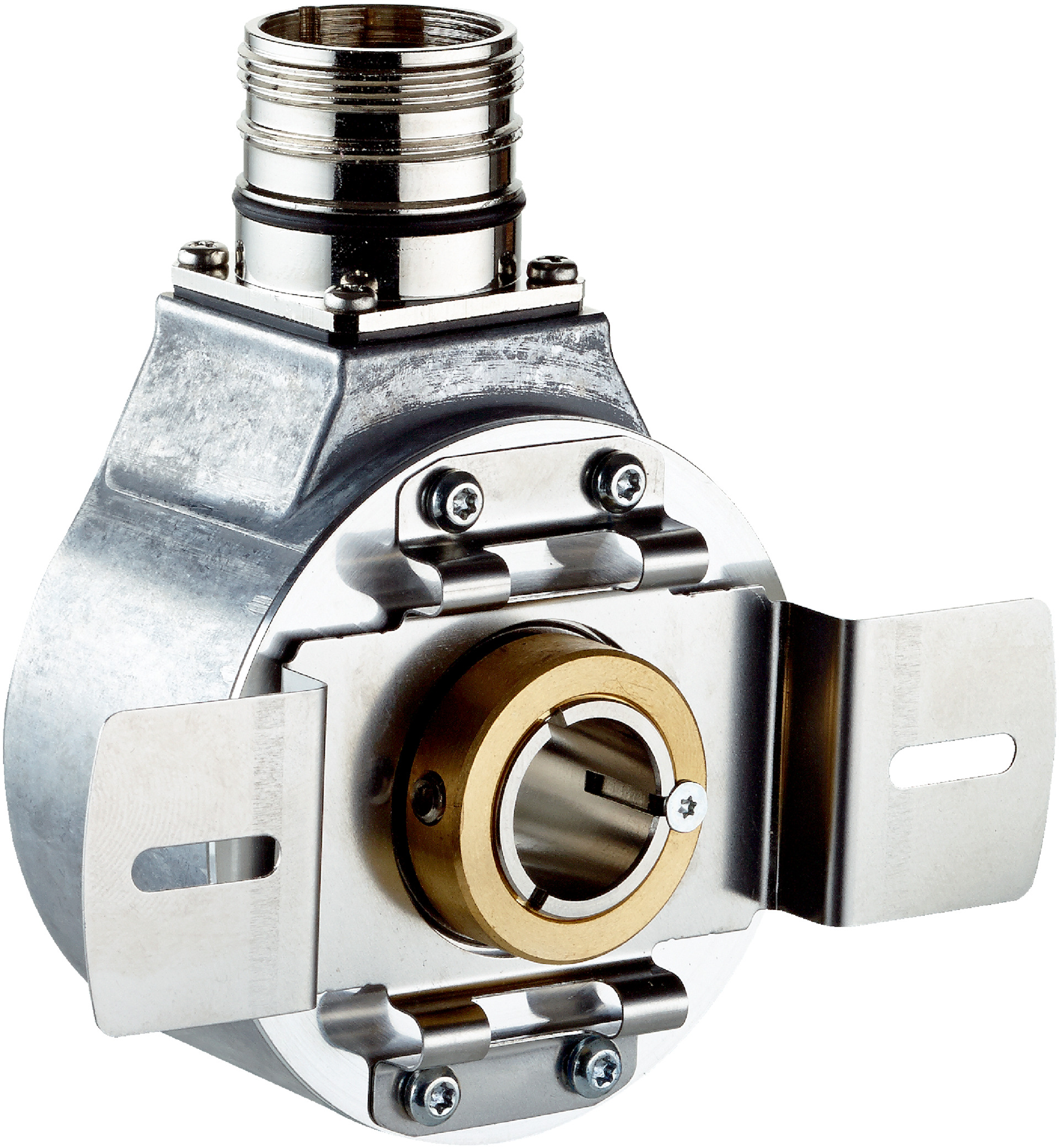

Incremental Encoder DBS60E-BDAA05000 | 5000 Pulses/Rev | IP67 Rated | High Speed up to 9000 min⁻¹ | by SICK
The Incremental Encoder DBS60E-BDAA05000 offers high resolution with 5,000 pulses per revolution, making it ideal for precise industrial automation and control systems. Designed for robust performance, it features a blind hollow shaft and an IP67 rated housing for protection against dust and water, ensuring reliability in demanding environments. With a fast initialization time of less than 5 ms and a high operating speed of up to 9,000 min⁻¹, this encoder is perfect for robotics, conveyor systems, and machine tool positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-BDAA05000 | 5000 Pulses/Rev | IP67 Rated | High Speed up to 9000 min⁻¹ | by SICK
Brand: SICK
SKU: 1081060
Alternatively Known As: Incremental rotary encoder, SICK DBS60 encoder, high resolution encoder, industrial shaft encoder
Technical Specifications
- Pulses per revolution: 5,000
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 36° per pulse
- Duty cycle: ≤ 0.5 ± 10%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 10 mm (front clamp)
- Flange type: 2-sided stator coupling with slot, screw hole circle 63–83 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- High resolution with 5,000 pulses per revolution
- Robust blind hollow shaft mechanical design
- IP67 rated housing for protection against dust and water
- Fast initialization time of less than 5 ms
- Reverse polarity and short-circuit protection
- Operating temperature range from -20°C to +85°C
- High operating speed up to 9,000 min⁻¹
- 6-channel incremental TTL/RS-422 communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety compliance.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption in control systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BDAA05000 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
