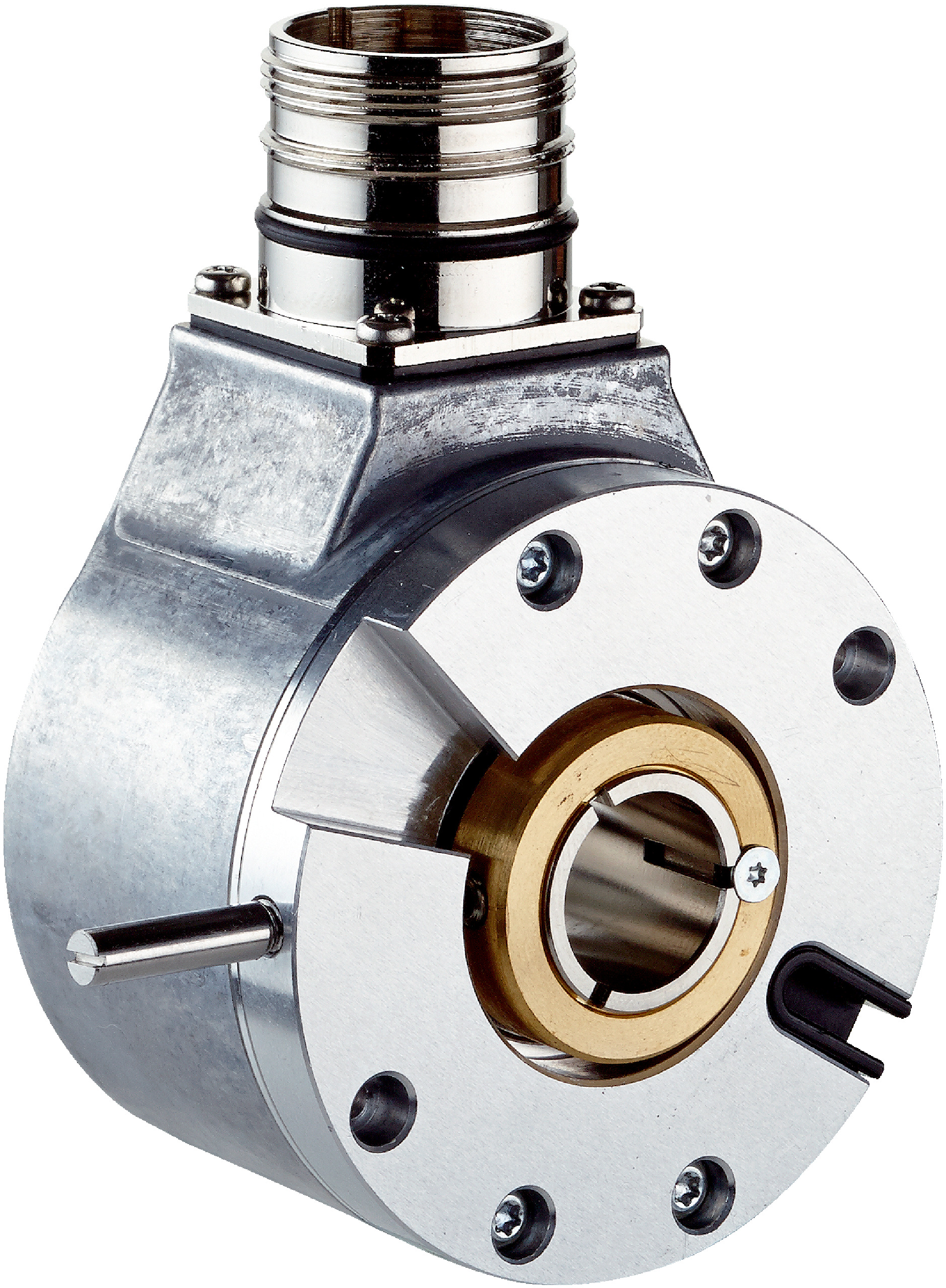

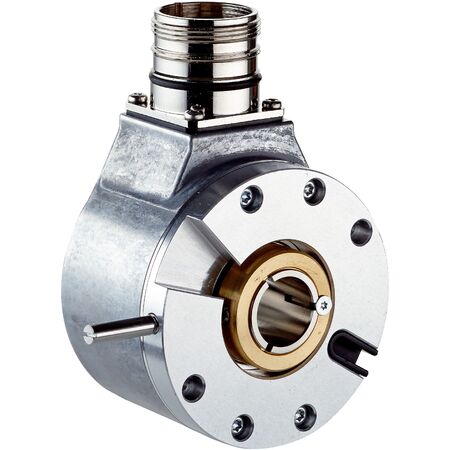

Incremental Encoder DBS60E-BDEAC1024 | 1024 Pulses/Rev | 6-Channel HTL | IP67 Rated | by SICK
The Incremental Encoder DBS60E-BDEAC1024 features 1024 pulses per revolution and a robust 6-channel HTL communication interface, making it ideal for industrial automation and precise motion control. With a blind hollow shaft design and high operating speeds up to 6000 min⁻¹, this encoder ensures reliable performance in robotics, conveyor systems, and machine tools, all while maintaining low power consumption and high resistance to shocks and vibrations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-BDEAC1024 | 1024 Pulses/Rev | 6-Channel HTL | IP67 Rated | by SICK
Brand: SICK
SKU: 1083813
Alternatively Known As: Incremental rotary encoder, rotary encoder 1024 PPR, SICK incremental encoder, DBS60 encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 to 27 V
- Reference signal: 1 at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 10 mm front clamp
- Flange type: Axial and radial register pin mounting for 4 mm register pin
- Start up torque: > 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6000 min⁻¹
- Maximum operating speed: 9000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –20 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 58mm x 60mm x 58mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- 6-channel HTL / Push pull communication interface
- Blind hollow shaft mechanical design with 10 mm shaft diameter
- High operating speed up to 6000 min⁻¹, max 9000 min⁻¹
- Robust aluminum housing and flange with stainless steel shaft
- IP67 rated housing side and IP65 shaft side for protection
- Reverse polarity and short-circuit protection on outputs
- Low power consumption ≤ 1 W without load
- Operating temperature range from –20 °C to +85 °C
- High resistance to shocks (250 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate motion control
- Machine tools and packaging machinery
- General use in manufacturing processes needing incremental feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DBS60E-BDEAC1024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
