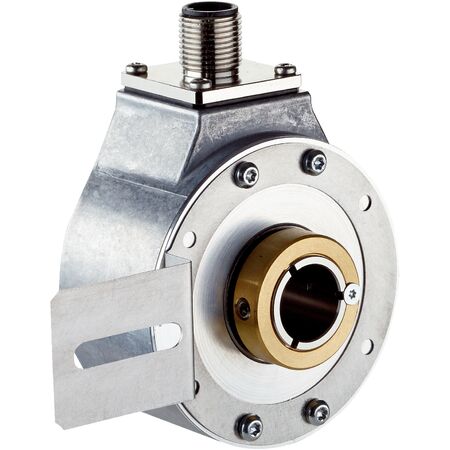

Incremental Encoder DBS60E-BDFCD1024 | 1024 Pulses/Rev | 6-Channel Output | IP67 Rated | by SICK
The Incremental Encoder DBS60E-BDFCD1024 features 1024 pulses per revolution and a robust 6-channel output with TTL/HTL interface options. Designed for industrial automation, this encoder ensures precise position and speed measurement, making it ideal for robotics, conveyor systems, and machine tools. With an IP67-rated aluminum housing and a wide operating temperature range of -30°C to +100°C, it offers durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-BDFCD1024 | 1024 Pulses/Rev | 6-Channel Output | IP67 Rated | by SICK
Brand: SICK
SKU: 1126733
Alternatively Known As: Incremental rotary encoder, SICK DBS60 encoder, 1024 PPR encoder, industrial position sensor
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male M12, 8-pin radial connector
- Supply voltage: 4.5 to 30 V
- Reference signal: 1 at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 10 mm front clamp
- Flange type: 1-sided stator coupling with slot
- Housing material: Aluminum
- Shaft material: Stainless steel
- Start up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6000 min⁻¹
- Maximum operating speed: 9000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature: -30°C to +100°C
- Storage temperature: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- 6-channel output with TTL / HTL interface options
- Robust aluminum housing with IP67 protection on housing side
- Blind hollow shaft design with 10 mm stainless steel shaft
- High operating speed up to 6000 min⁻¹, max 9000 min⁻¹
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10⁹ revolutions
- Operating temperature range from -30 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- General motion control applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in automation systems
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BDFCD1024 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
