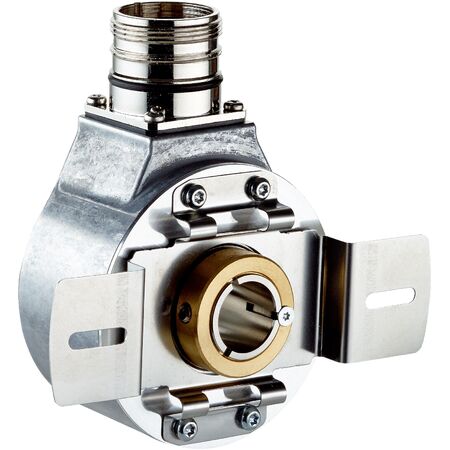

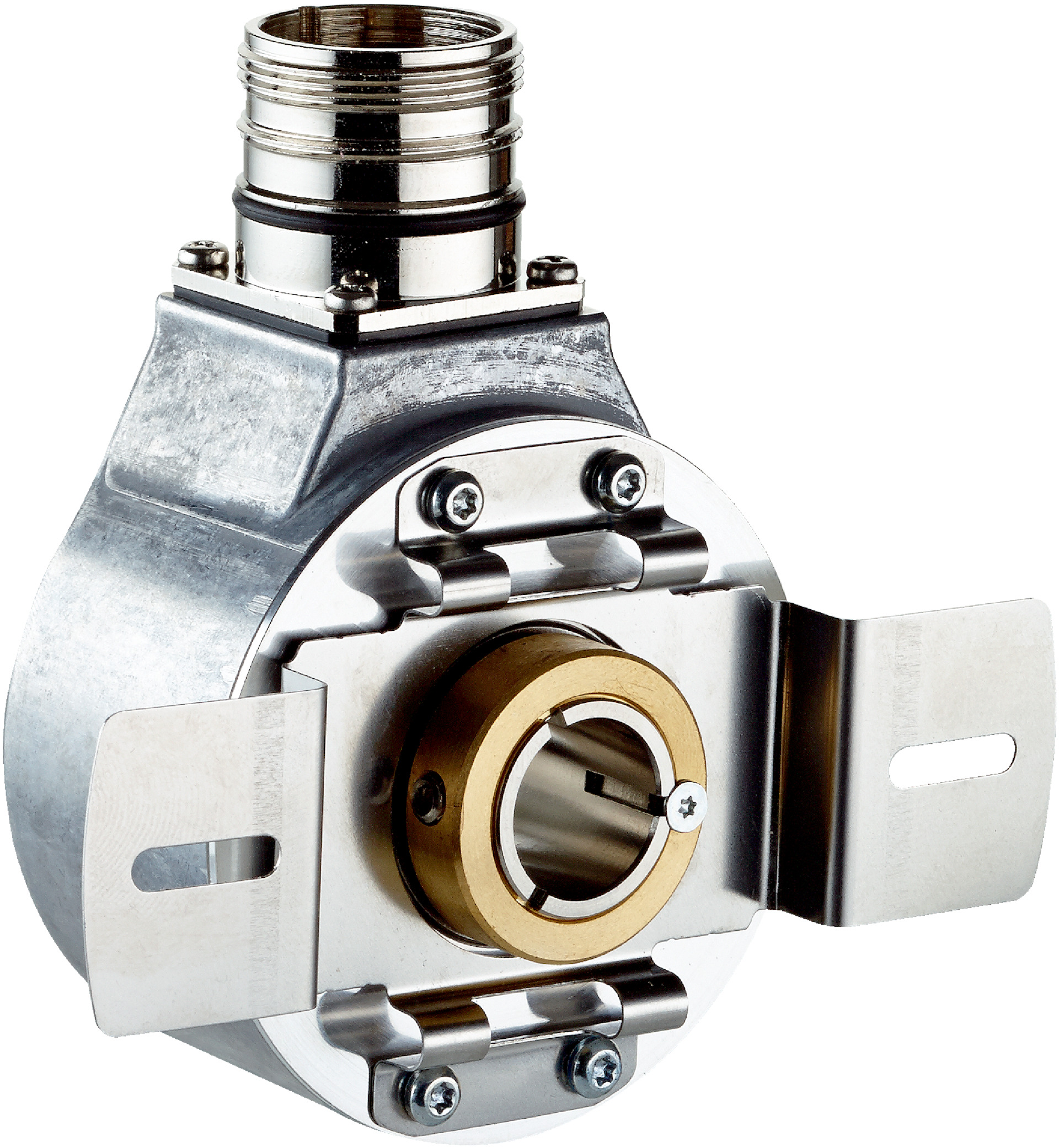

Incremental Encoder DBS60E-BEAA01024 | 1024 Pulses/Rev | 6-Channel TTL/RS-422 | IP67 Rated | by SICK
The Incremental Encoder DBS60E-BEAA01024 features 1024 pulses per revolution and a robust 6-channel TTL/RS-422 communication interface, making it ideal for industrial automation and robotics. With a blind hollow shaft design and high operating speeds up to 6000 min⁻¹, this encoder ensures precise position and speed measurement in demanding applications. Its durable aluminum housing is rated IP67, providing excellent protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-BEAA01024 | 1024 Pulses/Rev | 6-Channel TTL/RS-422 | IP67 Rated | by SICK
Brand: SICK
SKU: 1100409
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, pulse encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 12 mm front clamp
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6000 min⁻¹
- Maximum operating speed: 9000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- 6-channel TTL / RS-422 communication interface
- Blind hollow shaft mechanical design with 12 mm shaft diameter
- High operating speed up to 6000 min⁻¹, max 9000 min⁻¹
- Robust aluminum housing with IP67 rating on housing side and IP65 on shaft side
- Reverse polarity and short-circuit protection
- Low start-up torque of 0.5 Ncm and operating torque of 0.4 Ncm
- High bearing lifetime of 3.6 x 10⁹ revolutions
- Operating temperature range from -20 °C to +85 °C
- Complies with EMC standards EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BEAA01024 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
