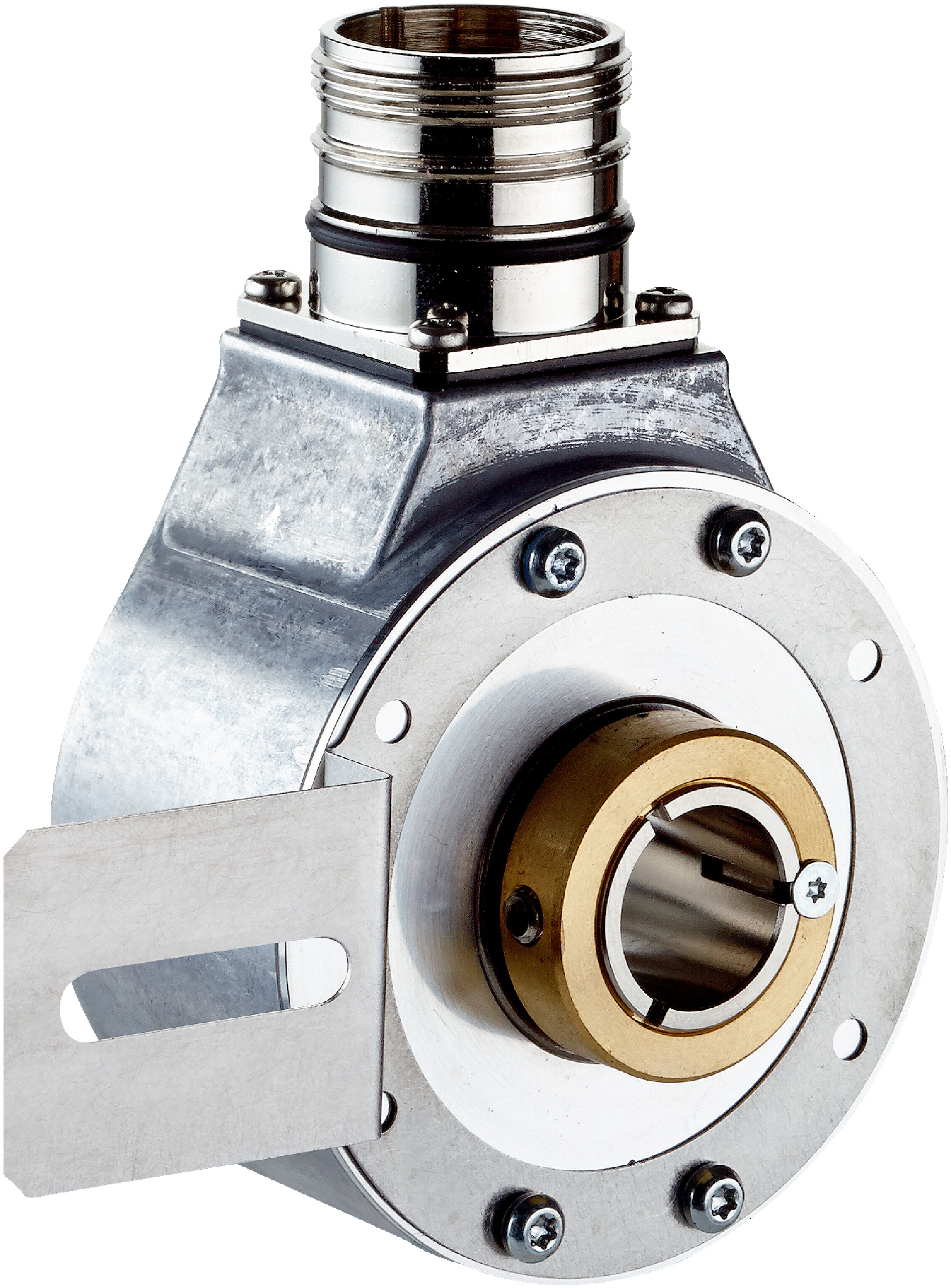

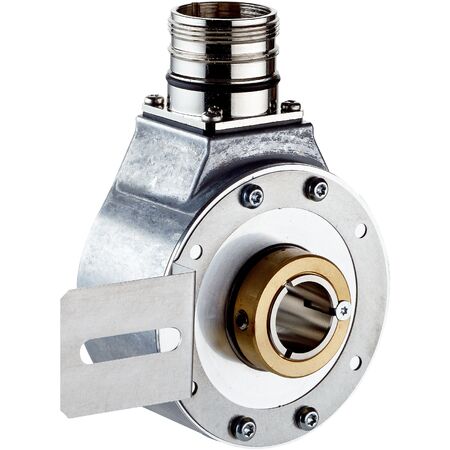

Incremental Encoder DBS60E-BECAD1024 | 1024 Pulses/Rev | TTL/RS-422 Interface | IP67 Rated | by SICK
The Incremental Encoder DBS60E-BECAD1024 features 1024 pulses per revolution and a TTL/RS-422 communication interface with 6 signal channels. Designed for industrial automation, robotics, and motion control systems, it offers robust performance with an IP67-rated aluminum housing, ensuring durability in demanding environments. With a high operating speed of up to 6000 min⁻¹ and a wide temperature range from -30°C to +100°C, this encoder is perfect for precise position and speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-BECAD1024 | 1024 Pulses/Rev | TTL/RS-422 Interface | IP67 Rated | by SICK
Brand: SICK
SKU: 1115759
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, pulse encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male M23, 12-pin radial connector
- Supply voltage: 10 to 30 V
- Reference signal: 1 at 90° electric, gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 12 mm front clamp
- Flange type: 1-sided stator coupling with slot
- Housing material: Aluminum
- Shaft material: Stainless steel
- Start up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6000 min⁻¹
- Maximum operating speed: 9000 min⁻¹
- Moment of inertia: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature: -30°C to +100°C
- Storage temperature: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- TTL / RS-422 communication interface with 6 signal channels
- Robust aluminum housing with IP67 rating on housing side and IP65 on shaft side
- Blind hollow shaft design with 12 mm diameter stainless steel shaft
- High operating speed up to 6000 min⁻¹, max 9000 min⁻¹
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10⁹ revolutions
- Operating temperature range from -30 °C to +100 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BECAD1024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
