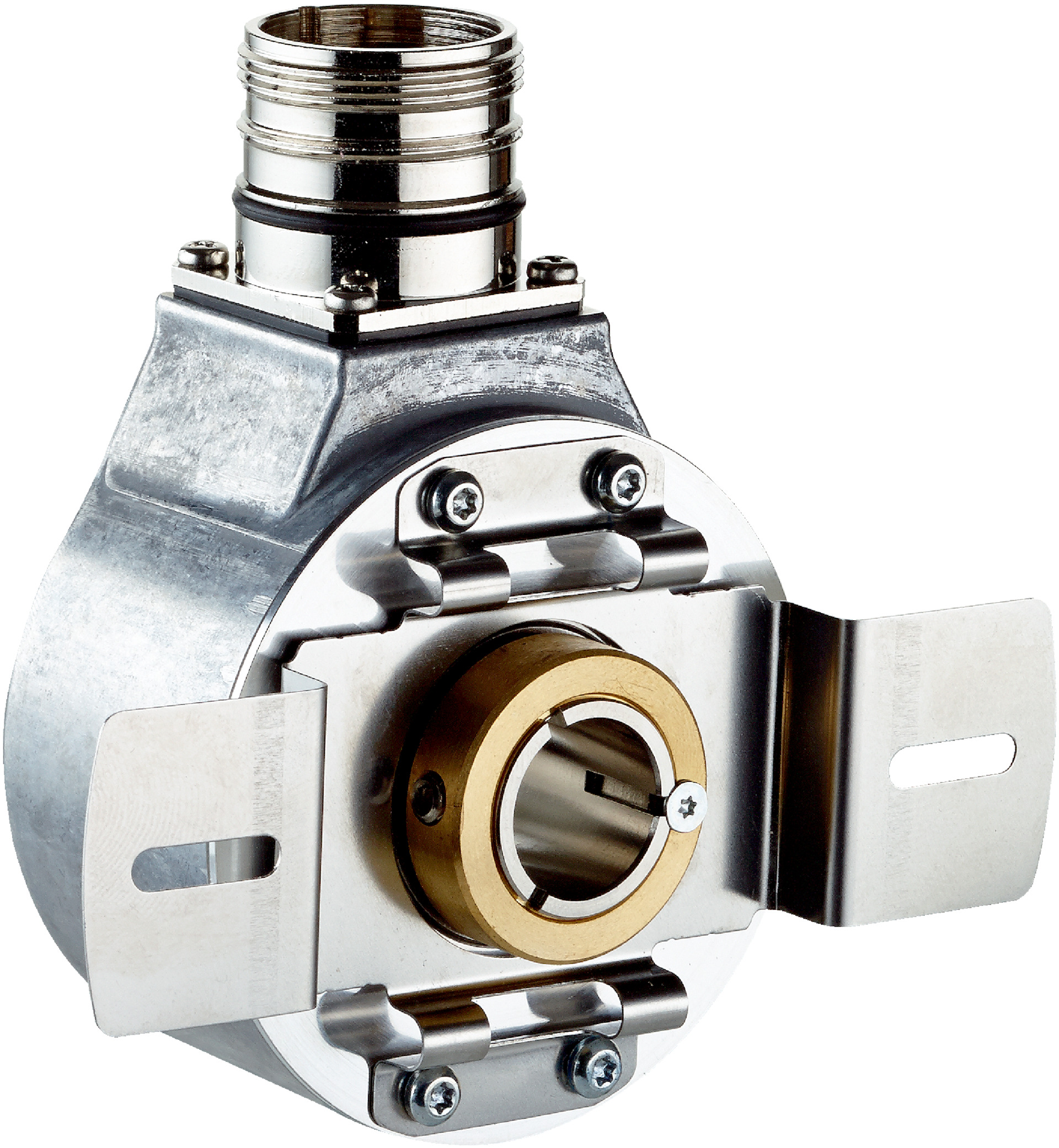

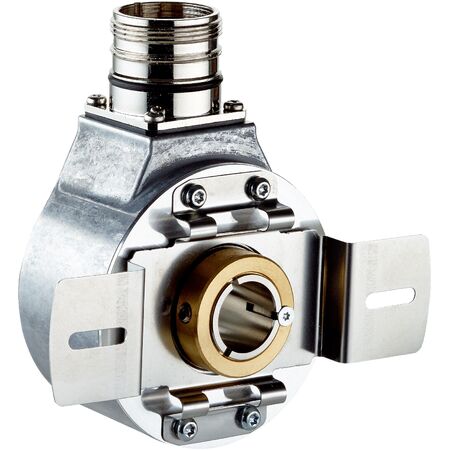

Incremental Encoder DBS60E-BEFA01024 | 1024 Pulses/Rev | 6-Channel Output | IP67 Protection | by SICK
The Incremental Encoder DBS60E-BEFA01024 features 1024 pulses per revolution and a robust 6-channel output with TTL/HTL interface options. Designed for industrial automation, it excels in precise position and speed measurement, making it ideal for robotics, conveyor systems, and motion control applications. With an operating temperature range of -30 °C to +100 °C and IP67 protection, this encoder ensures reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-BEFA01024 | 1024 Pulses/Rev | 6-Channel Output | IP67 Protection | by SICK
Brand: SICK
SKU: 1090913
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, pulse encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 30 V
- Reference signal: 1 at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 12 mm
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6000 min⁻¹
- Maximum operating speed: 9000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- 6-channel output with TTL / HTL interface options
- Robust aluminum housing with IP67 protection on housing side
- Blind hollow shaft design with 12 mm stainless steel shaft
- High operating speed up to 9000 min⁻¹
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- Operating temperature range from -30 °C to +100 °C
- High resistance to shock (250 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- Motion control systems in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BEFA01024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
