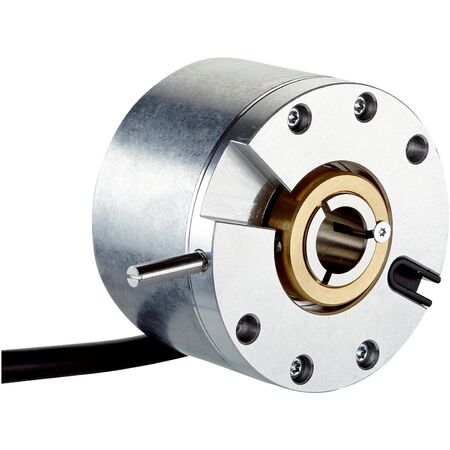

Incremental Encoder DBS60E-BFCJC1024 | 1024 Pulses/Rev | IP67 & IP65 Rated | High Speed 9000 min⁻¹ | by SICK
The Incremental Encoder DBS60E-BFCJC1024 features 1024 pulses per revolution and a robust design with a stainless steel shaft and aluminum housing. Ideal for industrial automation and motion control applications, it operates at speeds up to 9000 min⁻¹ and is protected against dust and water with IP67 and IP65 ratings. With low power consumption and high mechanical durability, this encoder is perfect for precise position and speed measurement in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-BFCJC1024 | 1024 Pulses/Rev | IP67 & IP65 Rated | High Speed 9000 min⁻¹ | by SICK
Brand: SICK
SKU: 1143989
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, pulse encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, universal, 0.5 m
- Supply voltage: 10 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 1/2 inch front clamp
- Flange type: Axial and radial register pin mounting for 4 mm register pin
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start up torque: > 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- TTL / RS-422 communication interface with 6 signal channels
- Robust blind hollow shaft design with stainless steel shaft and aluminum housing
- High operating speed up to 9,000 min⁻¹
- IP67 rated housing side and IP65 shaft side for protection against dust and water
- Reverse polarity and short-circuit protection on outputs
- Low power consumption ≤ 0.5 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10⁹ revolutions
- Operating temperature range from -30 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper alignment and electrical connections.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems
- Machine tool feedback and control
- Motion control systems requiring incremental position feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BFCJC1024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
