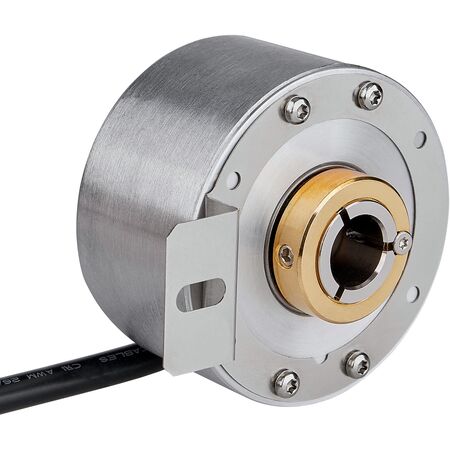

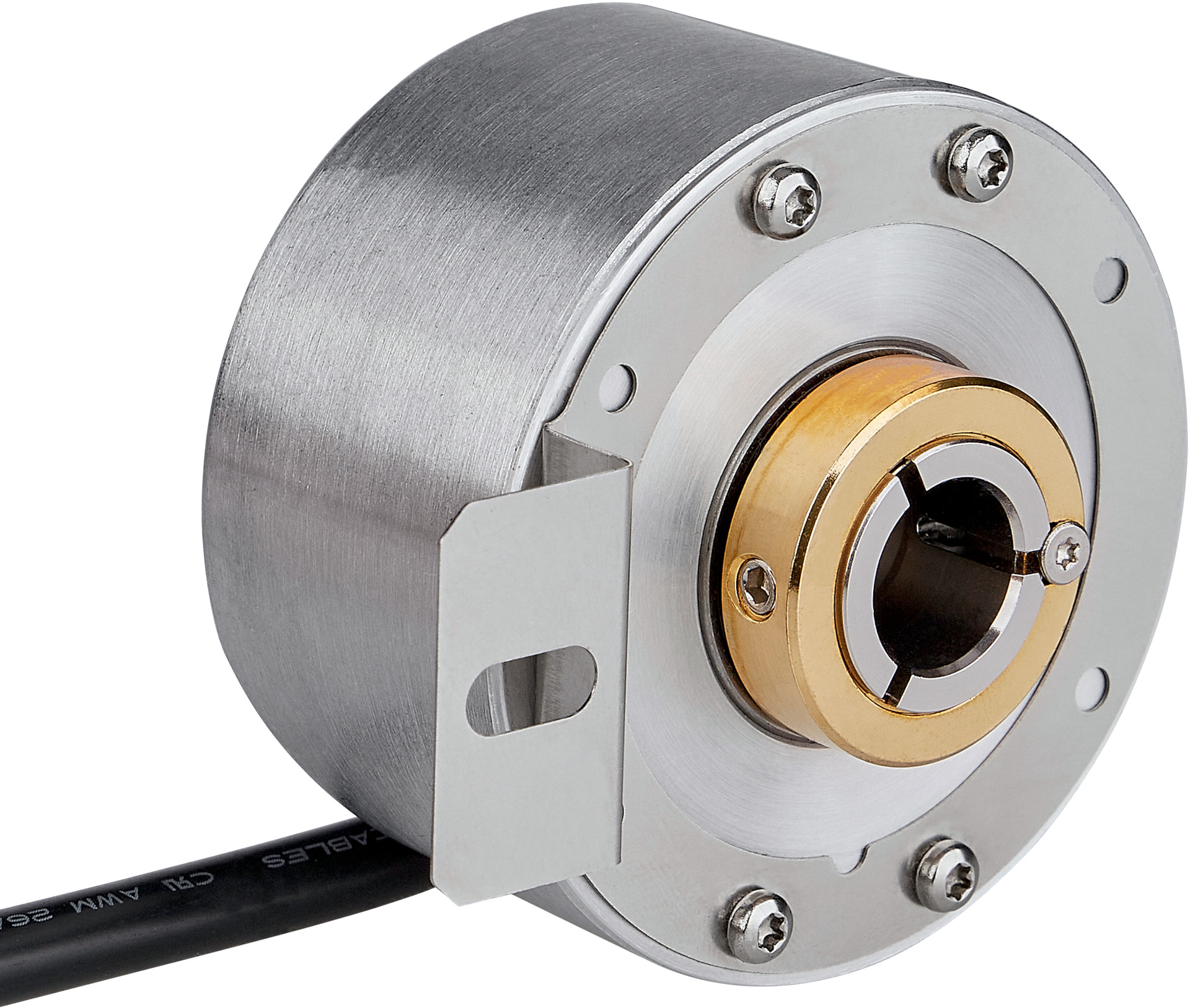

Incremental Encoder DBS60E-BGFQG0500 | 500 PPR | 6-Channel Output | IP67 Protection | by SICK
The Incremental Encoder DBS60E-BGFQG0500 features 500 pulses per revolution and a robust 6-channel output with TTL/HTL interface options. Designed for industrial automation, this encoder ensures precise position and speed measurement, making it ideal for robotics, conveyor systems, and machine tools. With a durable aluminum housing and IP67 protection, it operates efficiently in challenging environments, providing reliable feedback for safety-related applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-BGFQG0500 | 500 PPR | 6-Channel Output | IP67 Protection | by SICK
Brand: SICK
SKU: 1142263
Alternatively Known As: Incremental rotary encoder, SICK DBS60 encoder, 500 PPR encoder, industrial position sensor
Technical Specifications
- Pulses per revolution: 500
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, with male M23 12-pin connector, 0.5 m
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 14 mm front clamp
- Flange type: 1-sided stator coupling with slot
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start up torque: > 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: –30 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 500 pulses per revolution
- 6-channel output with TTL / HTL interface options
- Robust aluminum housing with IP67 protection on housing side and IP65 on shaft side
- Blind hollow shaft design with 14 mm stainless steel shaft
- High operating speed up to 9,000 min⁻¹
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10⁹ revolutions
- Operating temperature range from –30 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate motion control
- Machine tools and packaging machinery
- Safety-related applications requiring reliable encoder feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BGFQG0500 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position feedback.
