Incremental Encoder DBS60E-BGFQG1024 | 1024 Pulses/Rev | 6-Channel TTL/HTL | IP67 Rated | by SICK
The Incremental Encoder DBS60E-BGFQG1024 features 1024 pulses per revolution and a robust 6-channel output with TTL/HTL interface options. Designed for industrial automation, robotics, and motion control systems, this encoder ensures precise position and speed measurement. With a durable aluminum housing rated IP67, it withstands harsh environments while providing low power consumption and high mechanical durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

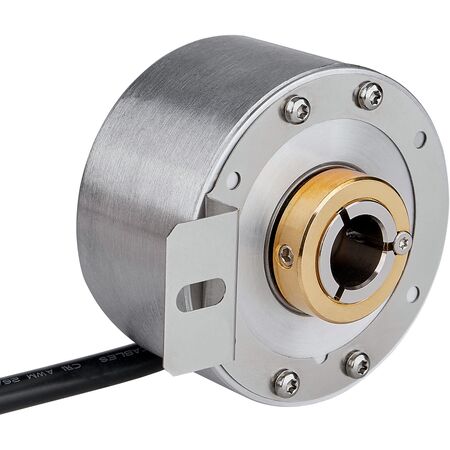

Product Name/Title: Incremental Encoder DBS60E-BGFQG1024 | 1024 Pulses/Rev | 6-Channel TTL/HTL | IP67 Rated | by SICK
Brand: SICK
SKU: 1148456
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, pulse encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, with male M23 12-pin connector, 0.5 m
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 14 mm front clamp
- Flange type: 1-sided stator coupling with slot
- Housing material: Aluminum
- Shaft material: Stainless steel
- Cable material: PVC
- Start up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -30°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
