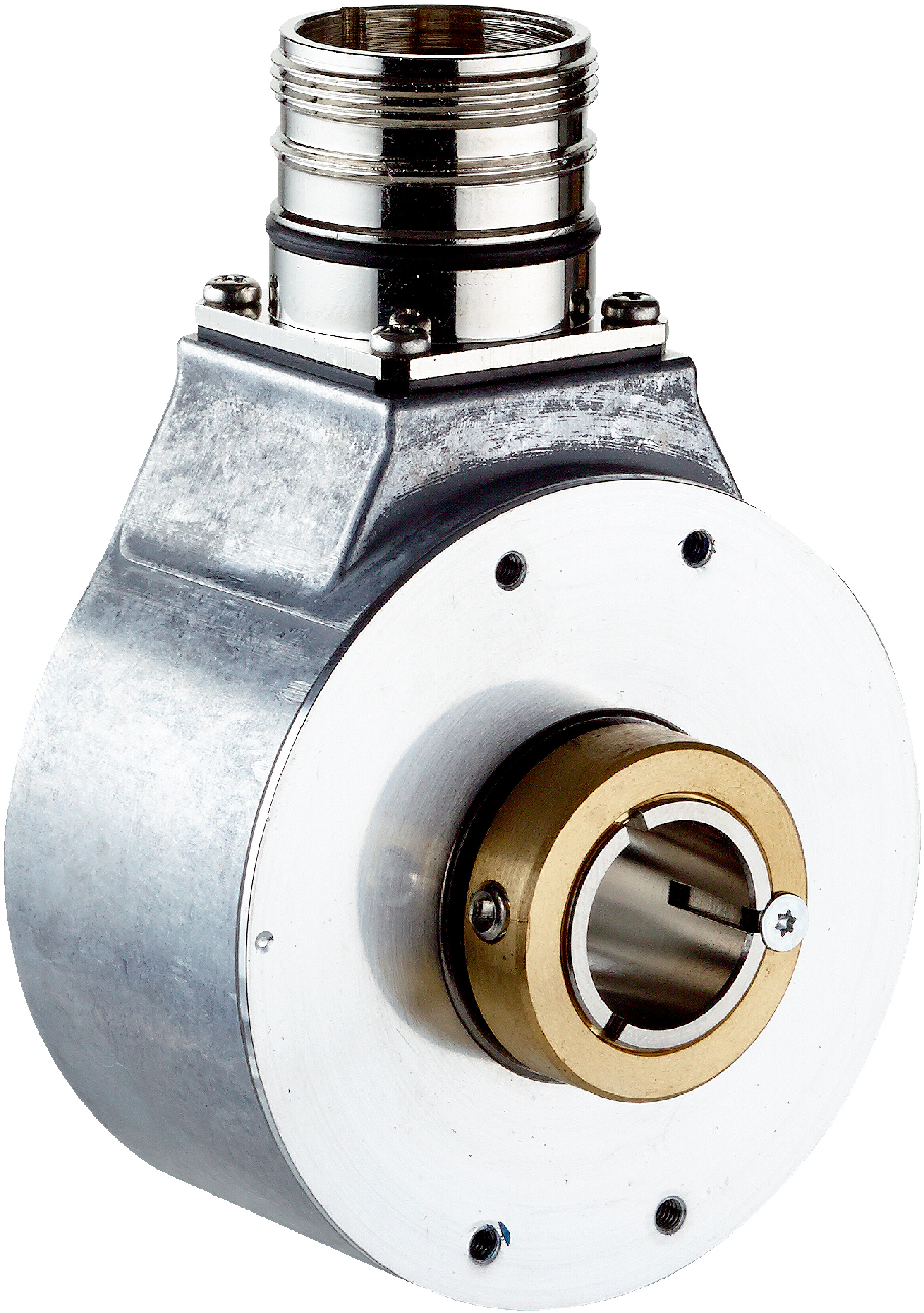

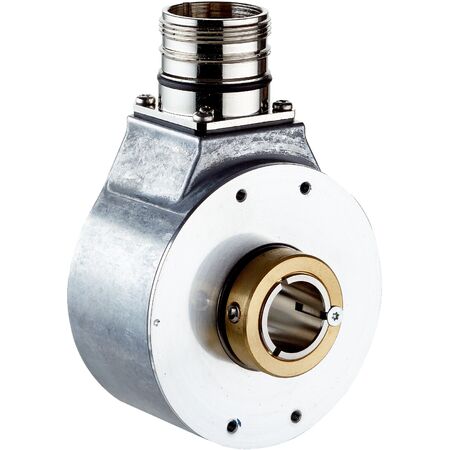

Incremental Encoder DBS60E-BHAAA2048 | 2048 Pulses/Rev | IP67 Rated | High Speed up to 9000 min⁻¹ | by SICK
The Incremental Encoder DBS60E-BHAAA2048 offers high precision with 2048 pulses per revolution, making it ideal for industrial automation and robotics. With an IP67 rated housing for dust and water protection, this encoder ensures reliable performance in harsh environments. Designed for applications requiring precise position and speed measurement, it features a robust blind hollow shaft and a high operating speed of up to 9000 min⁻¹.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-BHAAA2048 | 2048 Pulses/Rev | IP67 Rated | High Speed up to 9000 min⁻¹ | by SICK
Brand: SICK
SKU: 1093427
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 2048
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA without load
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Blind hollow shaft with 15 mm diameter front clamp
- Flange: Aluminum with 4 x M2.5 screws
- Housing material: Aluminum
- Start up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6000 min⁻¹
- Maximum operating speed: 9000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 2048 pulses per revolution
- Robust blind hollow shaft mechanical design with stainless steel shaft
- IP67 rated housing for protection against dust and water
- TTL / RS-422 incremental communication interface with 6 signal channels
- Short-circuit and reverse polarity protection
- Operating temperature range from -20°C to +85°C
- High operating speed up to 9000 min⁻¹
- Low operating torque of 0.4 Ncm
- Long bearing lifetime of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BHAAA2048 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
