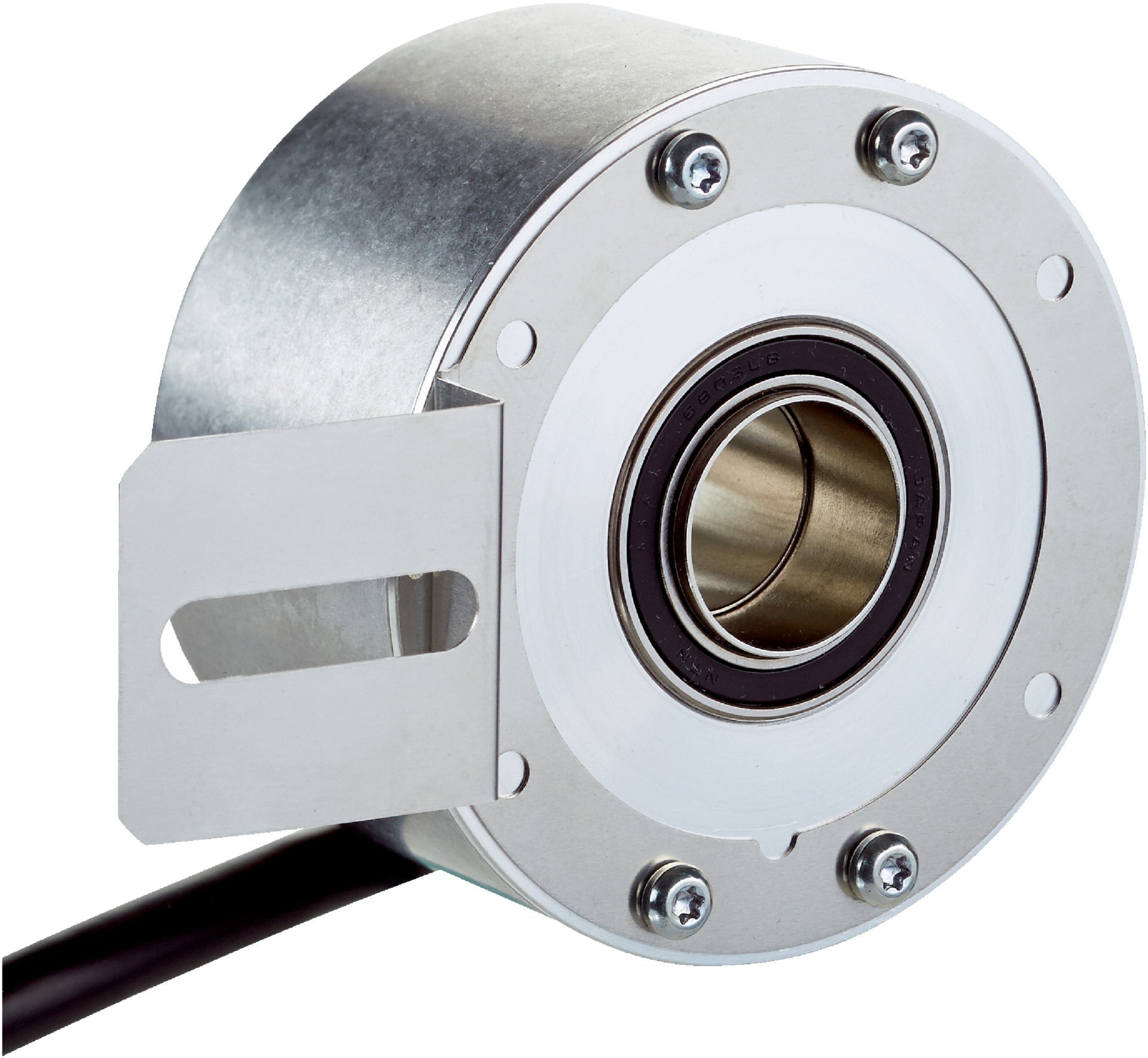

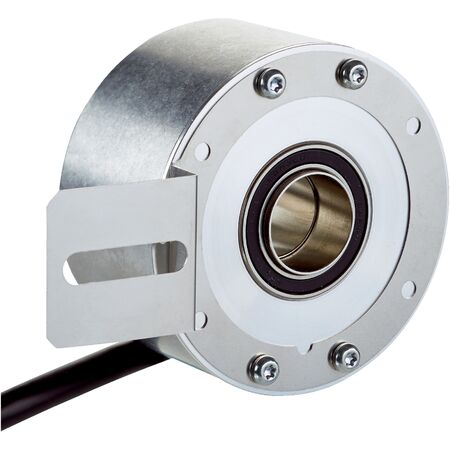

Incremental Encoder DBS60E-R4EJD1024 | 1024 Pulses/Rev | High Speed 6000 min⁻¹ | IP65 Rated | by SICK
The Incremental Encoder DBS60E-R4EJD1024 features 1024 pulses per revolution and a robust through hollow shaft design, making it ideal for industrial automation and precise motion control. With an impressive operating speed of up to 6000 min⁻¹ and an IP65 rated enclosure for dust and water protection, this encoder is built for durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-R4EJD1024 | 1024 Pulses/Rev | High Speed 6000 min⁻¹ | IP65 Rated | by SICK
Brand: SICK
SKU: 1104545
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, pulse encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Cable, 8-wire, universal, 0.5 m
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 10 mm rear clamping
- Flange type: 1-sided stator coupling with slot, screw hole circle radius 31.5–48.5 mm
- Shaft material: Stainless steel with plastic shaft
- Flange material: Aluminum
- Housing material: Aluminum
- Cable material: PVC
- Start up torque: +0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6000 min⁻¹
- Maximum operating speed: 9000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 200,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 housing and shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 200 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- Through hollow shaft design with 10 mm rear clamping shaft
- High operating speed up to 6000 min⁻¹, max 9000 min⁻¹
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for dust and water protection
- Short-circuit and reverse polarity protection
- Low power consumption ≤ 1 W without load
- 6-channel HTL / Push pull communication interface
- High mechanical durability with bearing lifetime of 3.6 x 10⁹ revolutions
- Operating temperature range from -20 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- Elevators and escalators control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-R4EJD1024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
