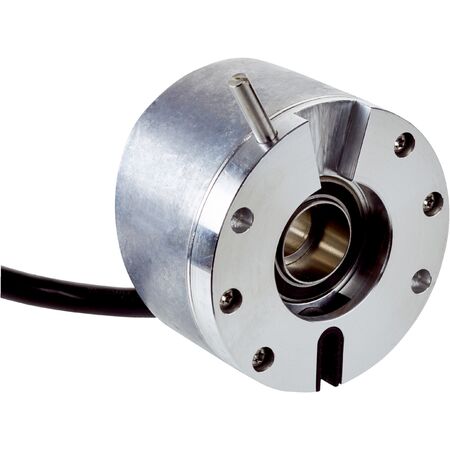

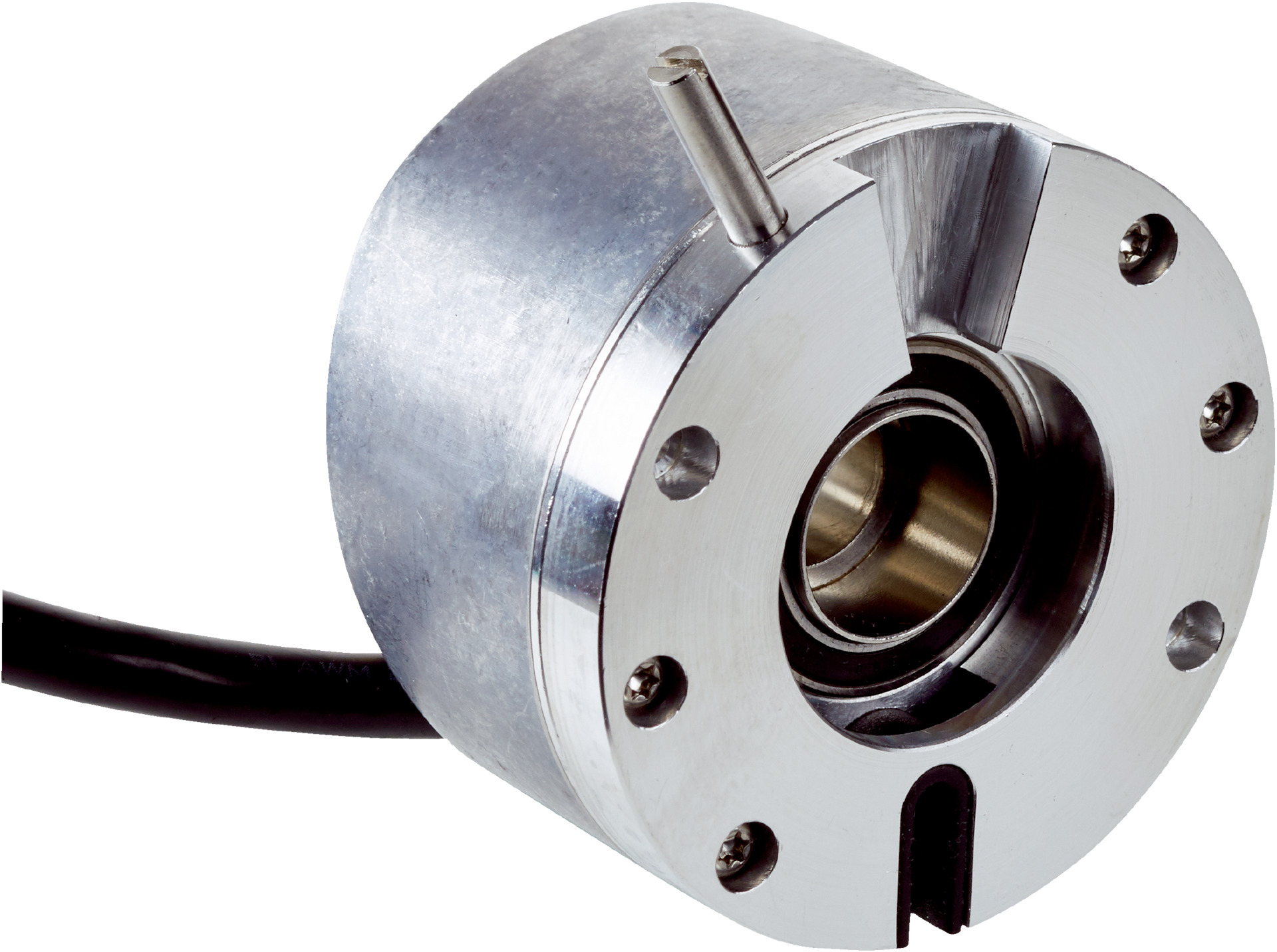

Incremental Encoder DBS60E-R4FJC1024 | 1024 Pulses/Rev | IP65 Protection | by SICK
The Incremental Encoder DBS60E-R4FJC1024 offers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and robotics. Designed for durability, it features a robust aluminum housing with an IP65 rating, ensuring reliable performance in harsh environments. With fast initialization under 5 ms and a wide operating temperature range from -30°C to +100°C, this encoder is perfect for motion control systems and machine tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-R4FJC1024 | 1024 Pulses/Rev | IP65 Protection | by SICK
Brand: SICK
SKU: 1135809
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, SICK DBS60 encoder
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: 8-wire cable, 0.5 m length
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 10 mm rear clamping
- Flange type: Axial and radial register pin mounting for 4 mm register pin
- Shaft material: Stainless steel with plastic shaft
- Flange and housing material: Aluminum
- Start up torque: +0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 200,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 housing and shaft side
- Operating temperature range: -30°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 200 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Through hollow shaft mechanical design with 10 mm shaft diameter
- Robust aluminum housing and flange with IP65 protection rating
- Supports TTL / HTL incremental communication interface
- 6-channel output with reference signal logically gated with A and B
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +100°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Fast initialization time under 5 ms and output frequency over 300 kHz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and manufacturing equipment
- Motion control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤ 0.5 W minimizes energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-R4FJC1024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
