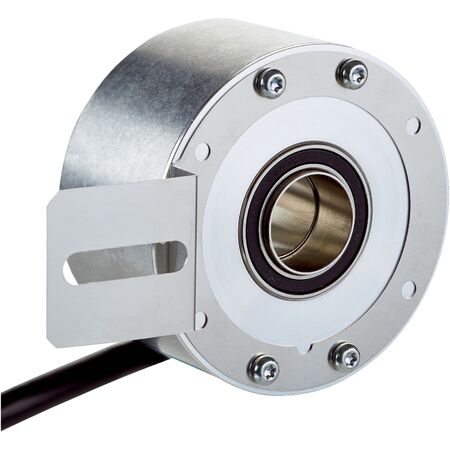

Incremental Encoder DBS60E-R5AJD1024 | 1024 PPR | IP65 Protection | Hollow Shaft Design | by SICK
The Incremental Encoder DBS60E-R5AJD1024 offers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and robotics. With a robust aluminum housing and IP65 protection, it ensures durability in harsh environments. Designed for accurate position and speed measurement, this encoder is perfect for machine tools and conveyor systems, providing reliable feedback for motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-R5AJD1024 | 1024 PPR | IP65 Protection | Hollow Shaft Design | by SICK
Brand: SICK
SKU: 1125095
Alternatively Known As: Incremental rotary encoder, rotary encoder 1024 PPR, SICK incremental encoder, hollow shaft encoder
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA (without load)
- Connection type: Cable, 8-wire, 0.5 m
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90° electric
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm rear clamping
- Flange type: 1-sided stator coupling with slot
- Shaft material: Stainless steel with plastic shaft
- Flange and housing material: Aluminum
- Cable material: PVC
- Start-up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 200,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 200 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- TTL / RS-422 incremental communication interface
- 6-channel signal output with reference signal
- Robust aluminum housing with IP65 protection
- Through hollow shaft design with 12 mm diameter
- Reverse polarity and short-circuit protection
- Wide operating temperature range from -20°C to +85°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Low start-up torque of 0.5 Ncm and operating torque of 0.4 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- General motion control applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-R5AJD1024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
