Incremental Encoder DBS60E-R8FLE0500 | 500 Pulses/Rev | IP65 Rated | High Speed Up to 9000 RPM | by SICK

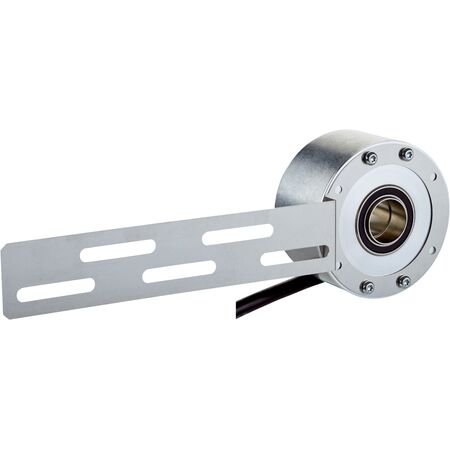

The Incremental Encoder DBS60E-R8FLE0500 is designed for precise position and speed measurement in industrial automation. With a robust aluminum housing and IP65 protection, it ensures durability in harsh environments. Featuring a 6-channel output with 500 pulses per revolution and high operating speeds up to 9,000 min⁻¹, this encoder is perfect for robotics, conveyor systems, and motor control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-R8FLE0500 | 500 Pulses/Rev | IP65 Rated | High Speed Up to 9000 RPM | by SICK
Brand: SICK
SKU: 1110201
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 500
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: 8-wire cable, 3 m length
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 15 mm rear clamping
- Flange type: One-sided stator coupling with slots
- Shaft material: Stainless steel with plastic shaft
- Housing material: Aluminum
- Operating torque: 0.4 Ncm at 20°C
- Start up torque: > 0.5 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 200,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Operating temperature range: -30°C to +100°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 200 g, 3 ms
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental communication interface with TTL / HTL signals
- 6-channel output with 500 pulses per revolution
- High operating speed up to 9,000 min⁻¹
- Robust aluminum housing with IP65 protection on housing and shaft sides
- Reverse polarity and short-circuit protection
- Through hollow shaft design with 15 mm rear clamping shaft
- Low power consumption ≤ 0.5 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and machinery requiring accurate rotational feedback
- Conveyor systems and motor control applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBS60E-R8FLE0500 incremental encoder is available for immediate purchase, ideal for industrial automation and precise rotational measurement applications.
