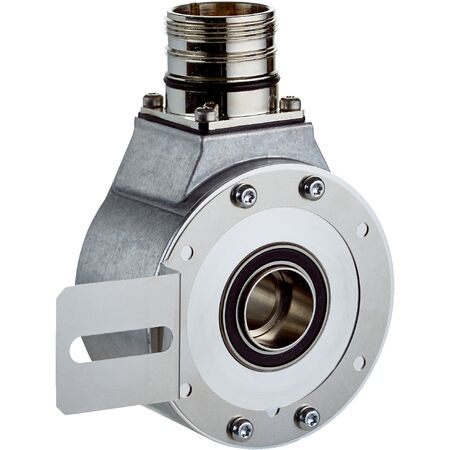

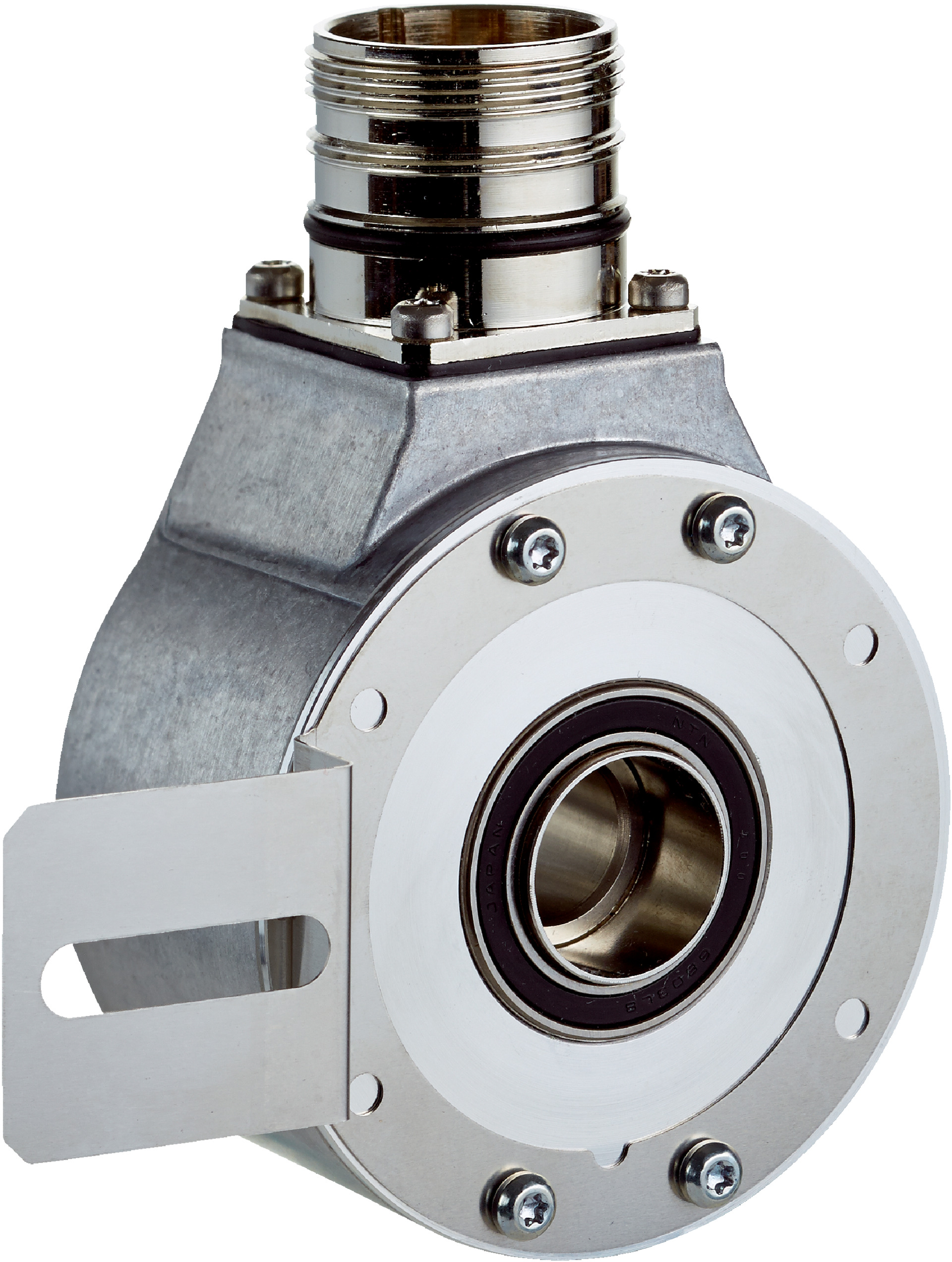

Incremental Encoder DBS60E-RAFAD2048 | 2048 Pulses/Rev | IP65 Rated | High Speed up to 9000 min⁻¹ | by SICK
The Incremental Encoder DBS60E-RAFAD2048 offers high precision with 2048 pulses per revolution, making it ideal for industrial automation and robotics. Designed for reliable performance, it features a robust aluminum housing, IP65 rating for dust and water protection, and a fast initialization time of less than 5 ms. Perfect for applications requiring precise position and speed measurement, this encoder ensures efficient operation in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-RAFAD2048 | 2048 Pulses/Rev | IP65 Rated | High Speed up to 9000 min⁻¹ | by SICK
Brand: SICK
SKU: 1082695
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 30 V
- Shaft diameter: 6 mm, rear clamping
- Mechanical design: Through hollow shaft
- Operating speed: 6,000 min⁻¹ (max 9,000 min⁻¹)
- Start up torque: > 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Bearing lifetime: 3.6 x 10^9 revolutions
- Operating temperature range: -30 °C to +100 °C
- Enclosure rating: IP65
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Through hollow shaft mechanical design with 6 mm shaft diameter
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Supports TTL / HTL incremental communication interface
- Short-circuit and reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Low power consumption ≤ 0.5 W without load
- 6-channel output with fast initialization time < 5 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-RAFAD2048 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
