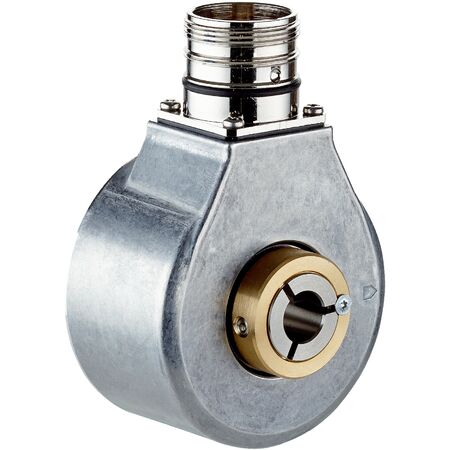

Incremental Encoder DBS60E-RDFAA1024 | 1024 Pulses/Rev | IP65 Rated | High Speed Up to 9000 RPM | by SICK
The Incremental Encoder DBS60E-RDFAA1024 offers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and motion control applications. Designed for robust performance, it features a through hollow shaft design and an IP65 rated aluminum housing, ensuring durability in demanding environments. With fast initialization under 5 ms and support for TTL/HTL communication, this encoder is perfect for robotics and conveyor systems requiring accurate feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-RDFAA1024 | 1024 Pulses/Rev | IP65 Rated | High Speed Up to 9000 RPM | by SICK
Brand: SICK
SKU: 1091710
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, motion encoder
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 10 mm rear clamping
- Flange type: Without stator coupling, flange with 4 x M2.5
- Materials: Shaft - stainless steel, Flange and housing - aluminum
- Start up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 housing and shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Through hollow shaft mechanical design with 10 mm rear clamping shaft
- Robust aluminum housing and flange with IP65 protection rating
- Supports TTL / HTL incremental communication interface
- Short-circuit and reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Low power consumption ≤ 0.5 W without load
- Fast initialization time under 5 ms
- 6 signal channels with load current ≤ 30 mA per channel
- Operating temperature range from –30 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- General motion control applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-RDFAA1024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications requiring precise position feedback.
