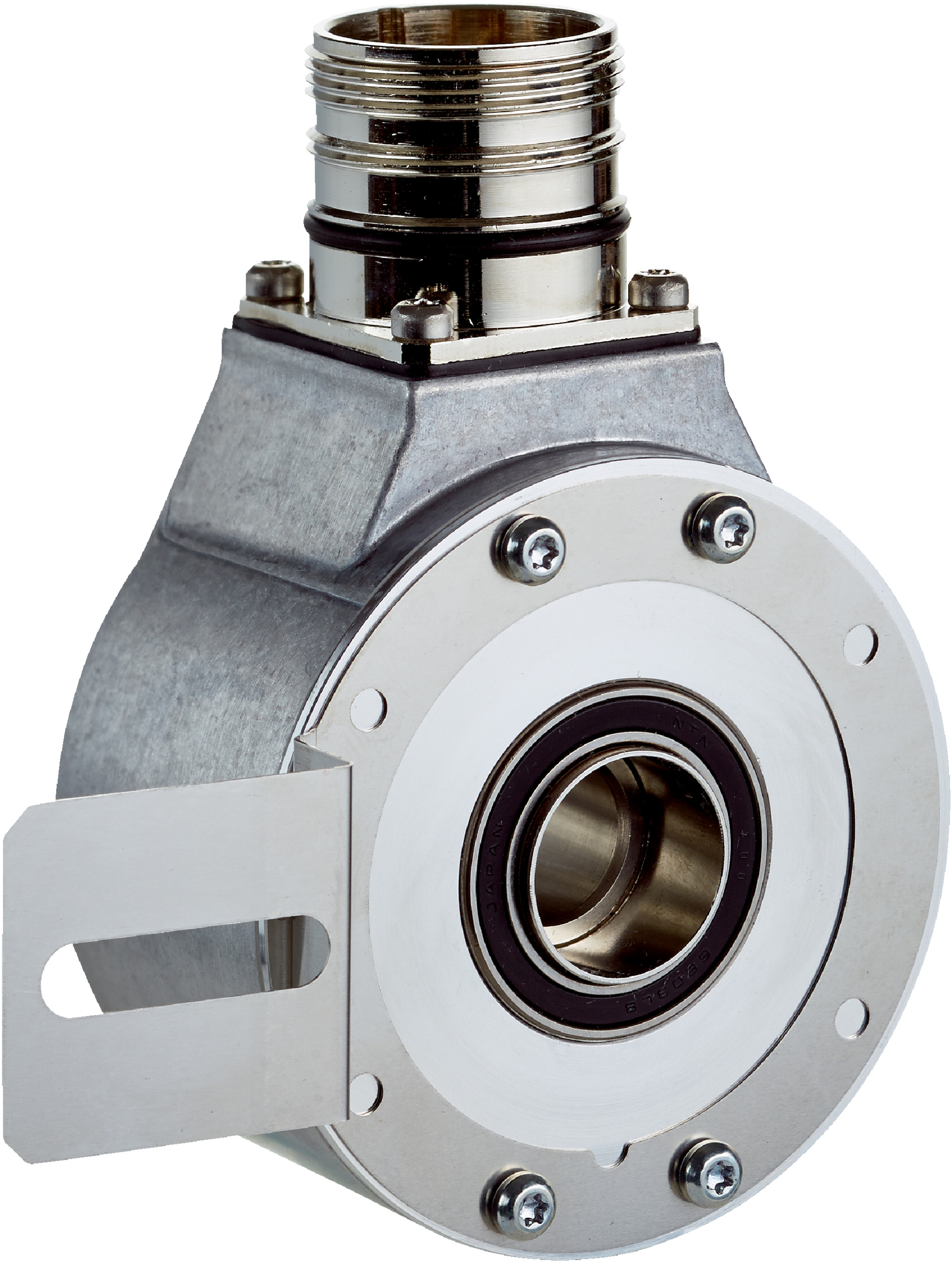

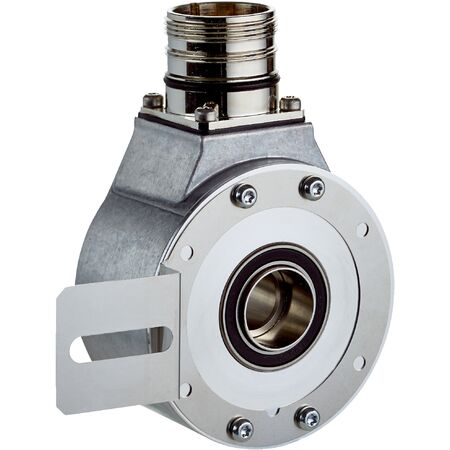

Incremental Encoder DBS60E-REAAD1024 | 1024 Pulses/Rev | IP65 Rated | Stainless Steel Shaft | by SICK
The Incremental Encoder DBS60E-REAAD1024 offers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and robotics applications. Its robust stainless steel shaft and IP65 rated housing ensure durability and protection against dust and water, while the fast initialization time of less than 5 ms enhances performance in motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-REAAD1024 | 1024 Pulses/Rev | IP65 Rated | Stainless Steel Shaft | by SICK
Brand: SICK
SKU: 1134103
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, SICK encoder DBS60E
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA without load
- Connection type: Male M23 12-pin radial connector
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1 at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Through hollow shaft, 12 mm diameter
- Flange: 1-sided stator coupling with slot, screw hole radius 31.5–48.5 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Start-up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Operating temperature: -20°C to +85°C
- Storage temperature: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust through hollow shaft mechanical design with stainless steel shaft
- IP65 rated housing and shaft side for dust and water protection
- Fast initialization time of less than 5 ms
- Reverse polarity and short-circuit protection
- Operating temperature range from -20°C to +85°C
- High operating speed up to 6,000 min⁻¹ with maximum speed of 9,000 min⁻¹
- Low start-up torque of 0.5 Ncm and operating torque of 0.4 Ncm
- 6-channel incremental TTL/RS-422 communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper alignment and electrical connections.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-REAAD1024 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
