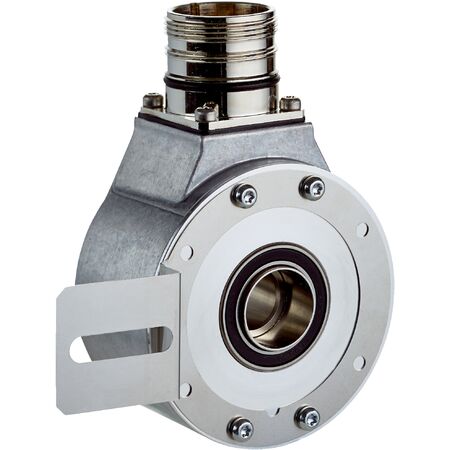

Incremental Encoder DBS60E-REEAD1024 | 1024 PPR | IP65 Rated | High Speed up to 9000 RPM | by SICK
The Incremental Encoder DBS60E-REEAD1024 features a high resolution of 1,024 pulses per revolution, making it ideal for precise motion control in industrial automation. With a robust aluminum housing and stainless steel shaft, it ensures durability and reliability. This encoder operates at speeds up to 9,000 min⁻¹ and is designed for applications such as robotics, conveyor systems, and machine tool positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-REEAD1024 | 1024 PPR | IP65 Rated | High Speed up to 9000 RPM | by SICK
Brand: SICK
SKU: 1117669
Alternatively Known As: Incremental rotary encoder, rotary encoder 1024 PPR, SICK encoder DBS60E, industrial encoder, shaft encoder
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6-channel
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 ... 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm rear clamping
- Flange type: 1-sided stator coupling, slot, screw hole circle radius 31.5–48.5 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: + 0.5 Ncm (+20 °C)
- Operating torque: 0.4 Ncm (+20 °C)
- Permissible movement static: ± 0.3 mm (radial), ± 0.5 mm (axial)
- Permissible movement dynamic: ± 0.1 mm (radial), ± 0.2 mm (axial)
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –20 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 250 g, 3 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Through hollow shaft mechanical design with 12 mm shaft diameter
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Short-circuit and reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Low start-up and operating torque for minimal mechanical load
- 6-channel incremental HTL / Push pull communication interface
- Fast initialization time under 5 ms
- Wide operating temperature range from -20 °C to +85 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Machine tool positioning and feedback
- Packaging and printing machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤ 1 W contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-REEAD1024 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
