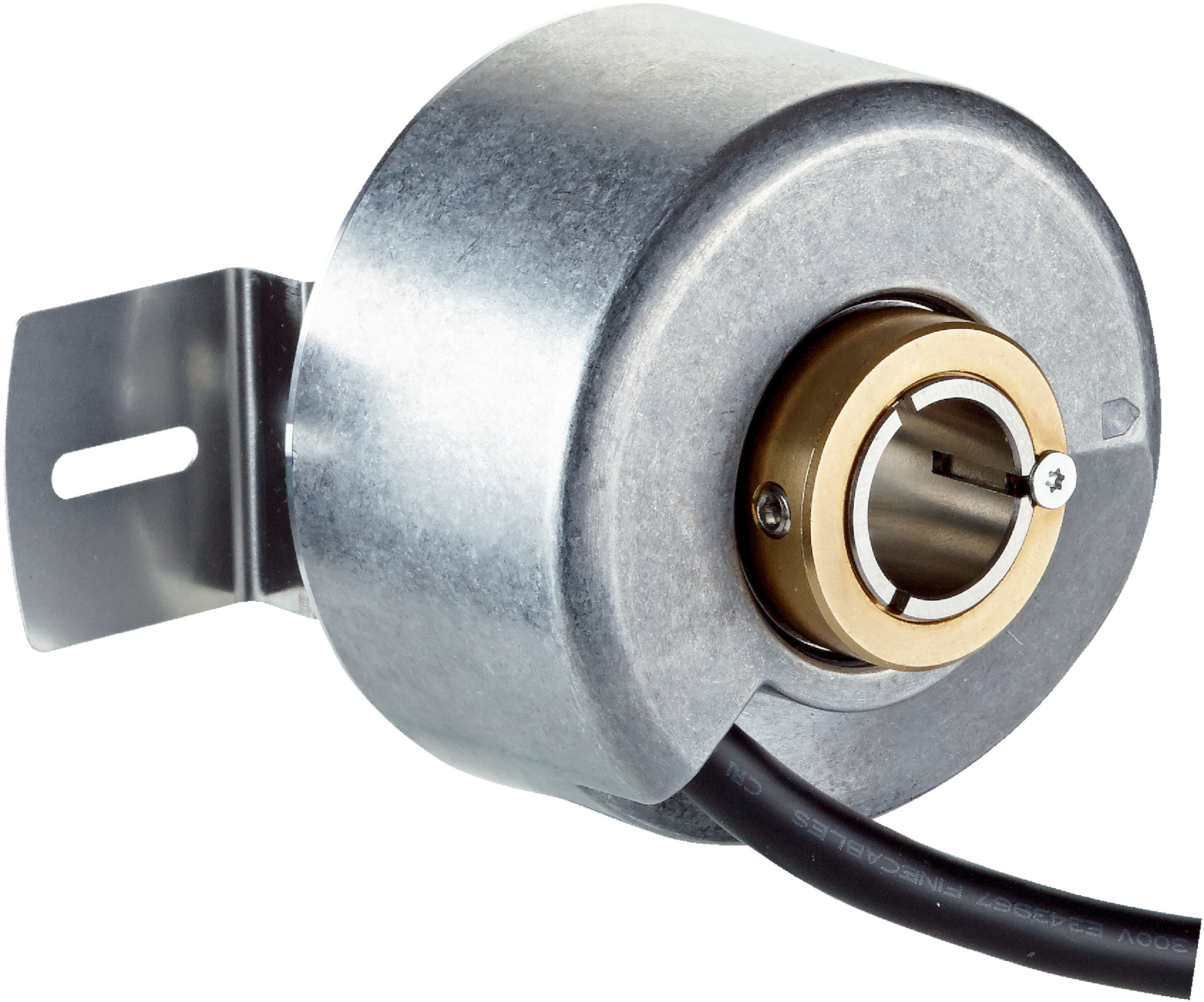

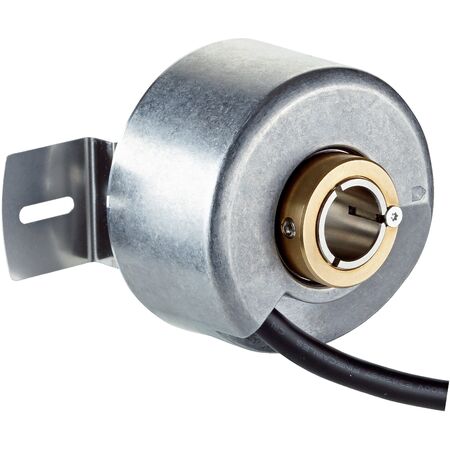

Incremental Encoder DBS60E-REEK02048 | 2048 Pulses/Rev | IP65 Rated | High Speed up to 9000 min⁻¹ | by SICK
The Incremental Encoder DBS60E-REEK02048 offers high precision with 2048 pulses per revolution, making it ideal for industrial automation and robotics. Designed for reliable performance, it features a robust aluminum housing, stainless steel shaft, and an IP65 rating for protection against dust and water. With a high operating speed of up to 9000 min⁻¹ and short-circuit protection, this encoder is perfect for applications requiring accurate position and speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-REEK02048 | 2048 Pulses/Rev | IP65 Rated | High Speed up to 9000 min⁻¹ | by SICK
Brand: SICK
SKU: 1098350
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, SICK encoder DBS60E
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Cable, 8-wire, universal, 1.5 m
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm rear clamping
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Materials: Shaft - stainless steel, Flange and housing - aluminum, Cable - PVC
- Start-up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Through hollow shaft mechanical design with 12 mm shaft diameter
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Short-circuit and reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Low start-up torque of 0.5 Ncm and operating torque of 0.4 Ncm
- 6-channel incremental HTL / Push pull communication interface
- Cable connection with 8-wire universal 1.5 m cable
- Operating temperature range from -20 °C to +85 °C
- Complies with EMC standards EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- Elevators and escalators control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption of ≤1 W contributes to energy efficiency
- Robust protection against environmental factors extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-REEK02048 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
