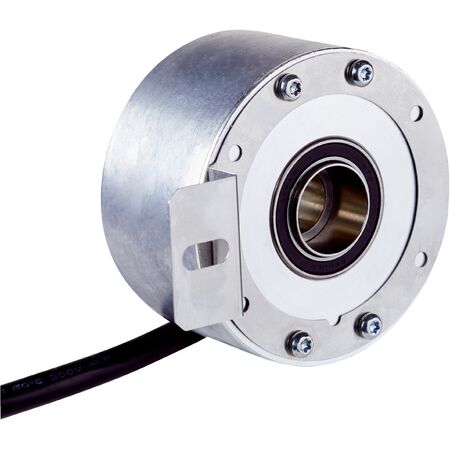

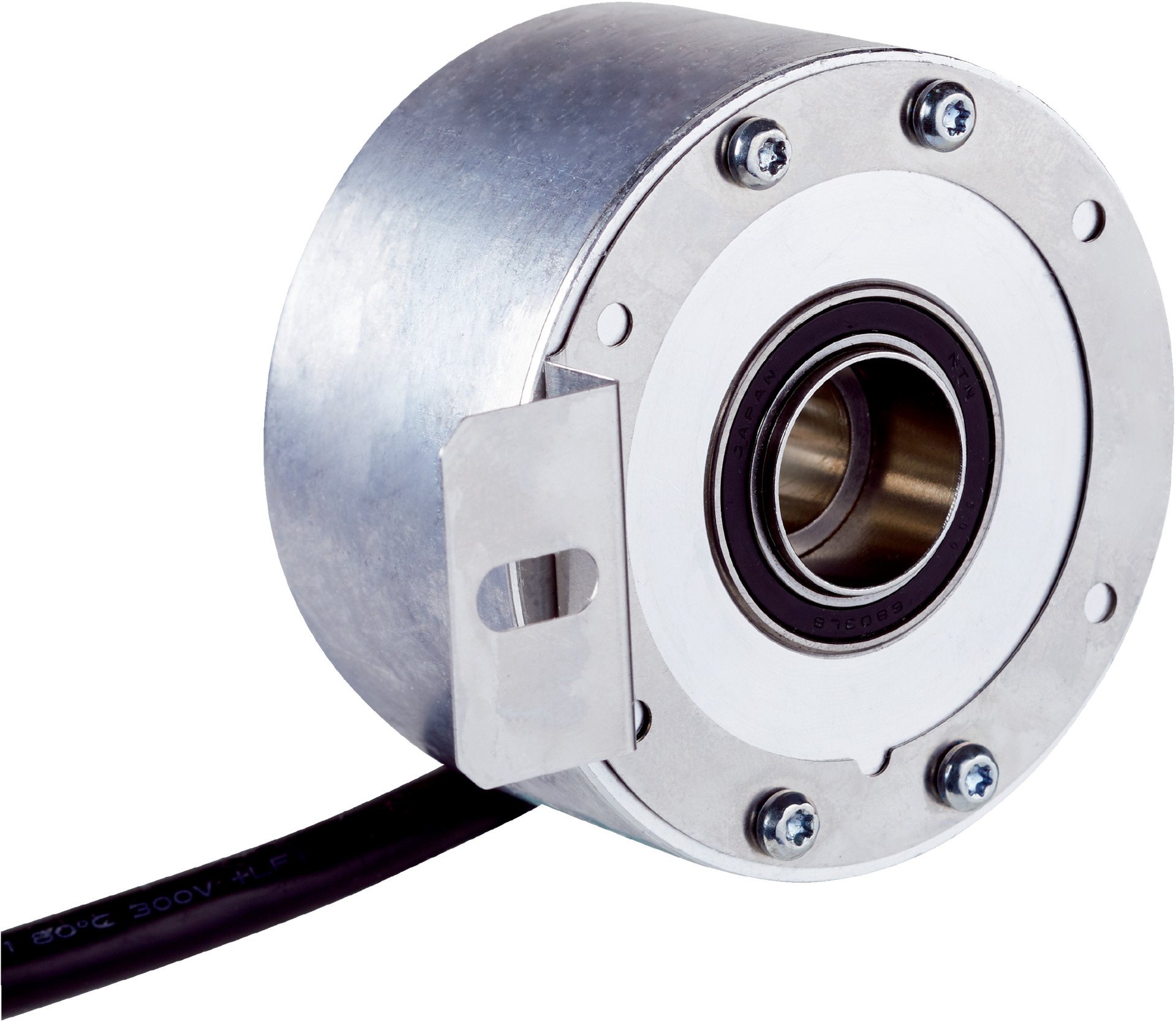

Incremental Encoder DBS60E-REEKG1024 | 1024 PPR | IP65 Rated | Fast Initialization | by SICK
The Incremental Encoder DBS60E-REEKG1024 offers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and robotics. With a robust stainless steel shaft and IP65 rated housing, it ensures durability and protection against dust and water. Designed for accurate position and speed measurement, this encoder is perfect for machine tools and conveyor systems, providing reliable feedback in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-REEKG1024 | 1024 PPR | IP65 Rated | Fast Initialization | by SICK
Brand: SICK
SKU: 1089417
Alternatively Known As: Incremental rotary encoder, rotary encoder 1024 PPR, SICK incremental encoder, DBS60 encoder
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push-pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Cable, 8-wire, universal, 1.5 m
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm rear clamping
- Flange type: 1-sided stator coupling with slot
- Materials: Stainless steel shaft, aluminum flange and housing, PVC cable
- Start up torque: +0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 housing and shaft side
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust through hollow shaft mechanical design with stainless steel shaft
- IP65 rated housing and shaft for protection against dust and water
- Fast initialization time of less than 5 ms
- Reverse polarity and short-circuit protection on outputs
- Operating temperature range from -20°C to +85°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- 6-channel incremental HTL / Push-pull communication interface
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- General motion control applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤1 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-REEKG1024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
