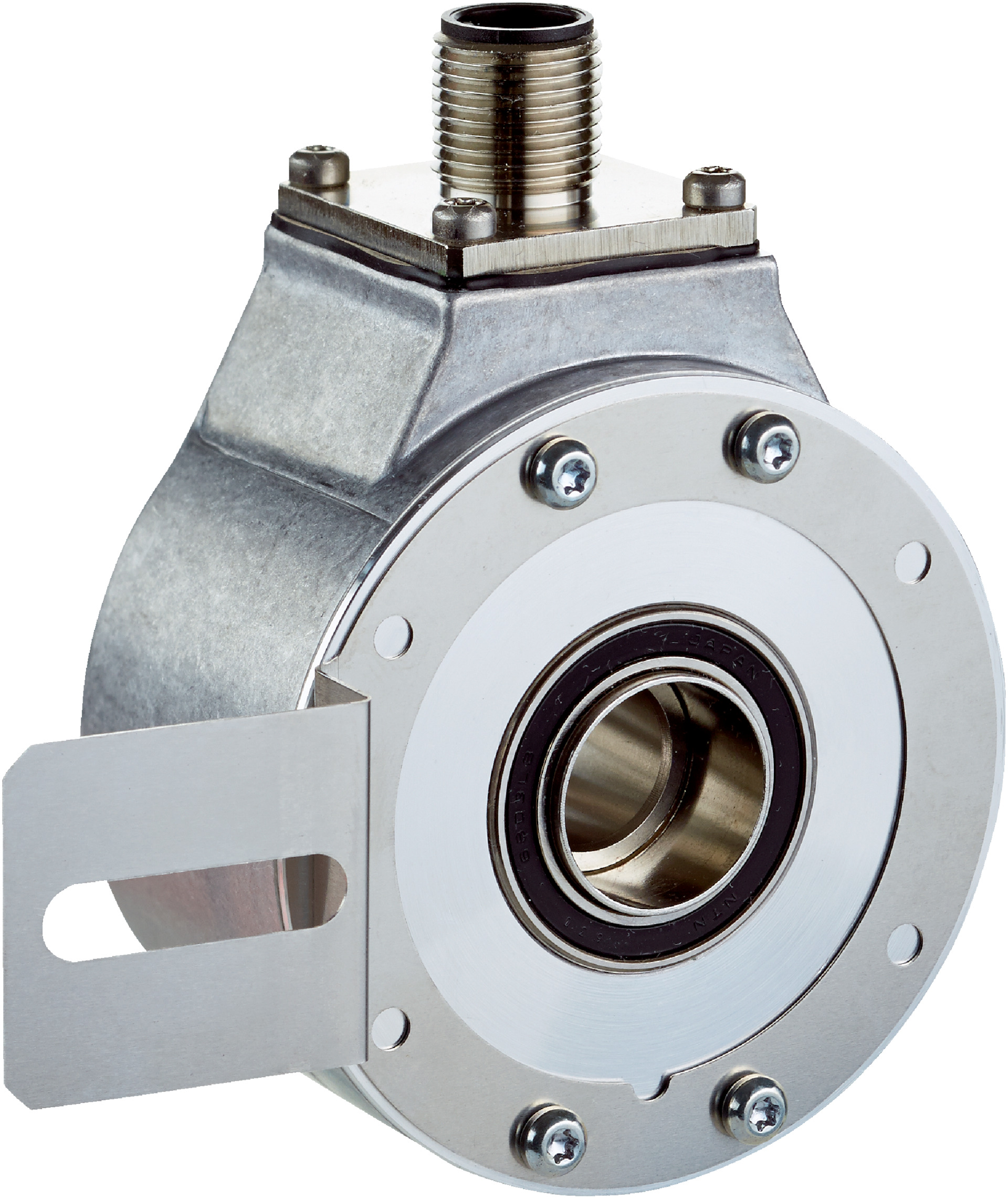

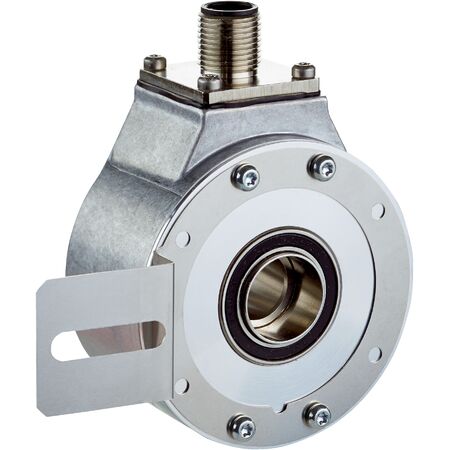

Incremental Encoder DBS60E-RGFCD1024 | 1024 Pulses/Rev | IP65 Rated | High Speed up to 9000 min⁻¹ | by SICK
The Incremental Encoder DBS60E-RGFCD1024 offers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and robotics. Designed for reliable performance, it features a robust aluminum housing, stainless steel shaft, and an IP65 rating for protection against dust and water. With a maximum operating speed of 9,000 min⁻¹ and low power consumption, this encoder is perfect for motion control systems and conveyor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-RGFCD1024 | 1024 Pulses/Rev | IP65 Rated | High Speed up to 9000 min⁻¹ | by SICK
Brand: SICK
SKU: 1091329
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 30 V
- Reference signal: 1 at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Through hollow shaft with 14 mm diameter
- Flange type: 1-sided stator coupling with slot
- Housing and flange material: Aluminum; shaft material: Stainless steel
- Start up torque: > 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹; max speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Operating humidity: 90% max, no condensation
- Operating temperature: -30°C to +100°C
- Storage temperature: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Through hollow shaft mechanical design with 14 mm shaft diameter
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +100°C
- Short-circuit and reverse polarity protection
- 6-channel incremental communication interface (TTL/HTL)
- Low power consumption of ≤ 0.5 W without load
- High maximum operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and material handling
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-RGFCD1024 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
