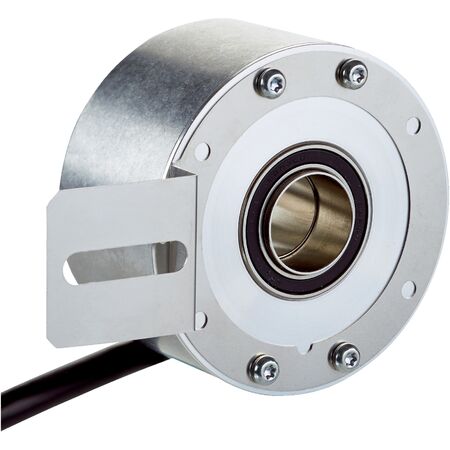

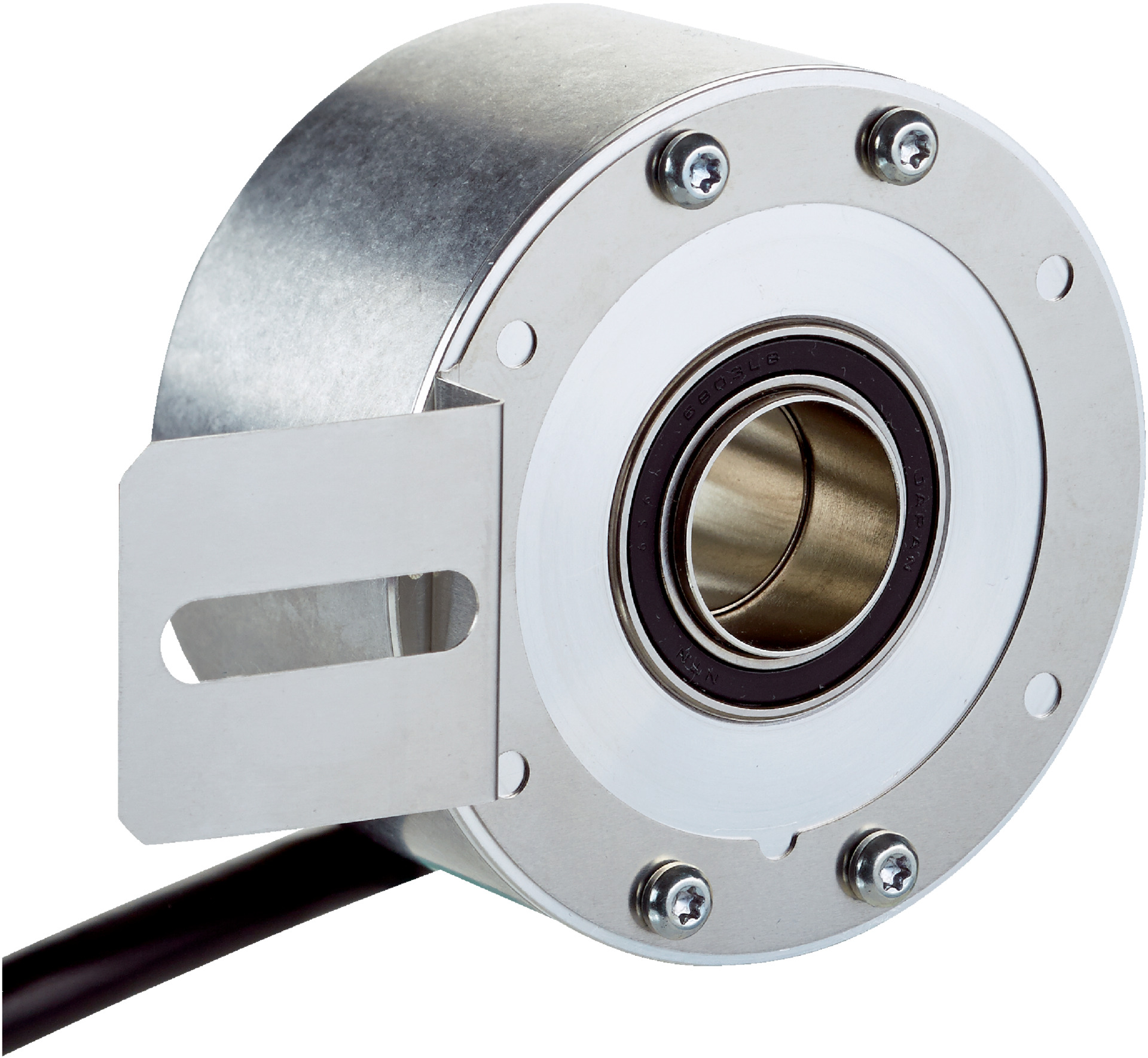

Incremental Encoder DBS60E-RGFJD1024 | 1024 Pulses/Rev | High Speed 9000 min⁻¹ | IP65 Rated | by SICK
The Incremental Encoder DBS60E-RGFJD1024 features 1024 pulses per revolution and a high operating speed of up to 9,000 min⁻¹, making it ideal for industrial automation and precise motion control applications. With a robust aluminum housing, stainless steel shaft, and IP65 rating, it ensures durability and protection against dust and water, perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-RGFJD1024 | 1024 Pulses/Rev | High Speed 9000 min⁻¹ | IP65 Rated | by SICK
Brand: SICK
SKU: 1106868
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, pulse encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: 8-wire cable, 0.5 m length
- Supply voltage: 4.5 to 30 V
- Reference signal: 1 at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 14 mm rear clamping
- Flange type: 1-sided stator coupling with slot
- Materials: Stainless steel shaft, aluminum flange and housing, PVC cable
- Start up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Operating temperature range: -30 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- Through hollow shaft mechanical design with 14 mm shaft diameter
- High operating speed up to 9,000 min⁻¹
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protection on outputs
- Low power consumption ≤ 0.5 W without load
- 6-channel TTL/HTL communication interface with output frequency over 300 kHz
- High mechanical durability with bearing lifetime of 3.6 x 10⁹ revolutions
- Wide operating temperature range from -30 °C to +100 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and material handling
- Machine tool feedback and control
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage in automation systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-RGFJD1024 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
