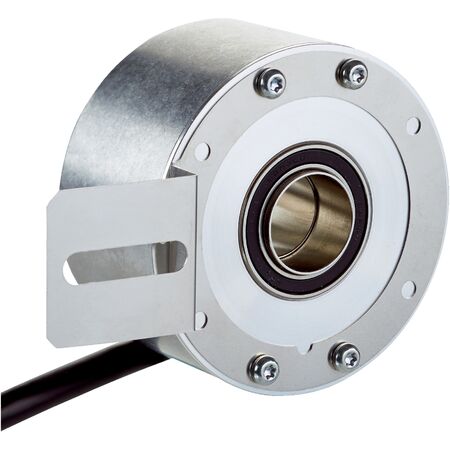

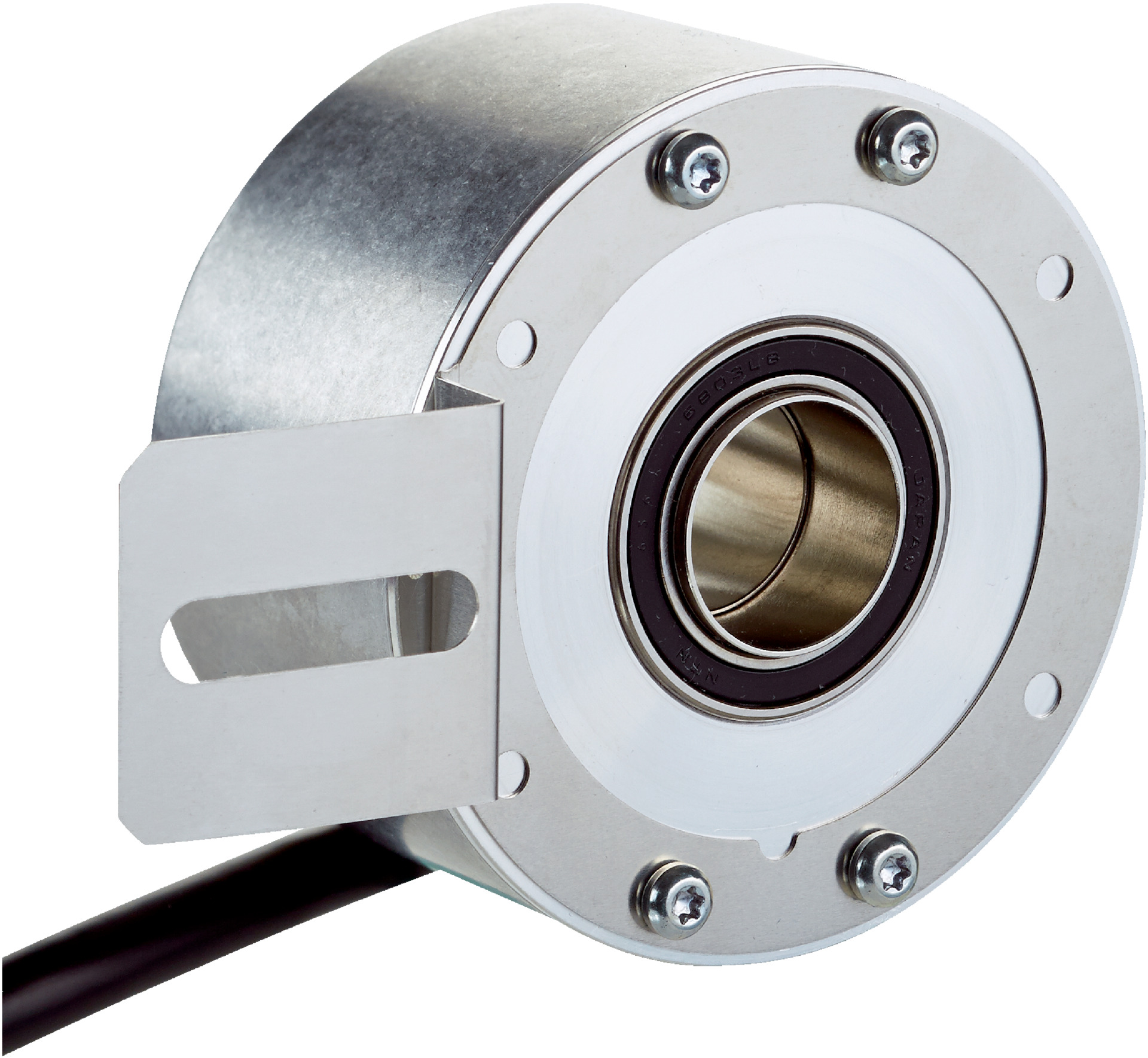

Incremental Encoder DBS60E-RGFPD1024 | 1024 Pulses/Rev | 6-Channel TTL/HTL | IP65 Protection | by SICK
The Incremental Encoder DBS60E-RGFPD1024 features 1024 pulses per revolution and a robust 6-channel TTL/HTL communication interface, making it ideal for industrial automation and robotics applications. With a through hollow shaft design and IP65 protection, this encoder ensures reliable performance in demanding environments, while its high operating speed of up to 9,000 min⁻¹ and low power consumption enhance efficiency and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-RGFPD1024 | 1024 Pulses/Rev | 6-Channel TTL/HTL | IP65 Protection | by SICK
Brand: SICK
SKU: 1116070
Alternatively Known As: Incremental rotary encoder, rotary shaft encoder, industrial encoder, position encoder, pulse encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, with male M12 8-pin connector, 0.5 m length
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 14 mm rear clamping
- Flange type: 1-sided stator coupling with slot, screw hole circle radius 31.5–48.5 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 housing and shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- Through hollow shaft mechanical design with 14 mm shaft diameter
- 6-channel incremental communication interface (TTL / HTL)
- High operating speed up to 9,000 min⁻¹
- Robust aluminum housing and flange with IP65 protection
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- High bearing lifetime of 3.6 x 10⁹ revolutions
- Operating temperature range from –30 °C to +100 °C
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-RGFPD1024 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
