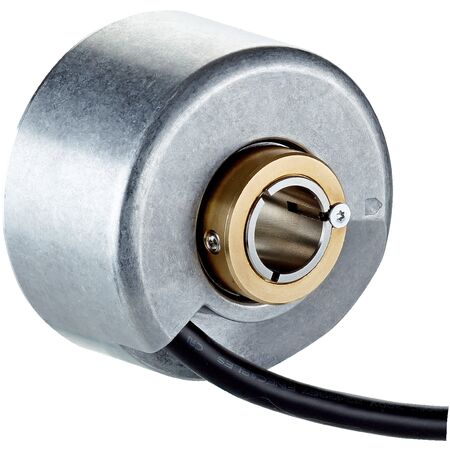

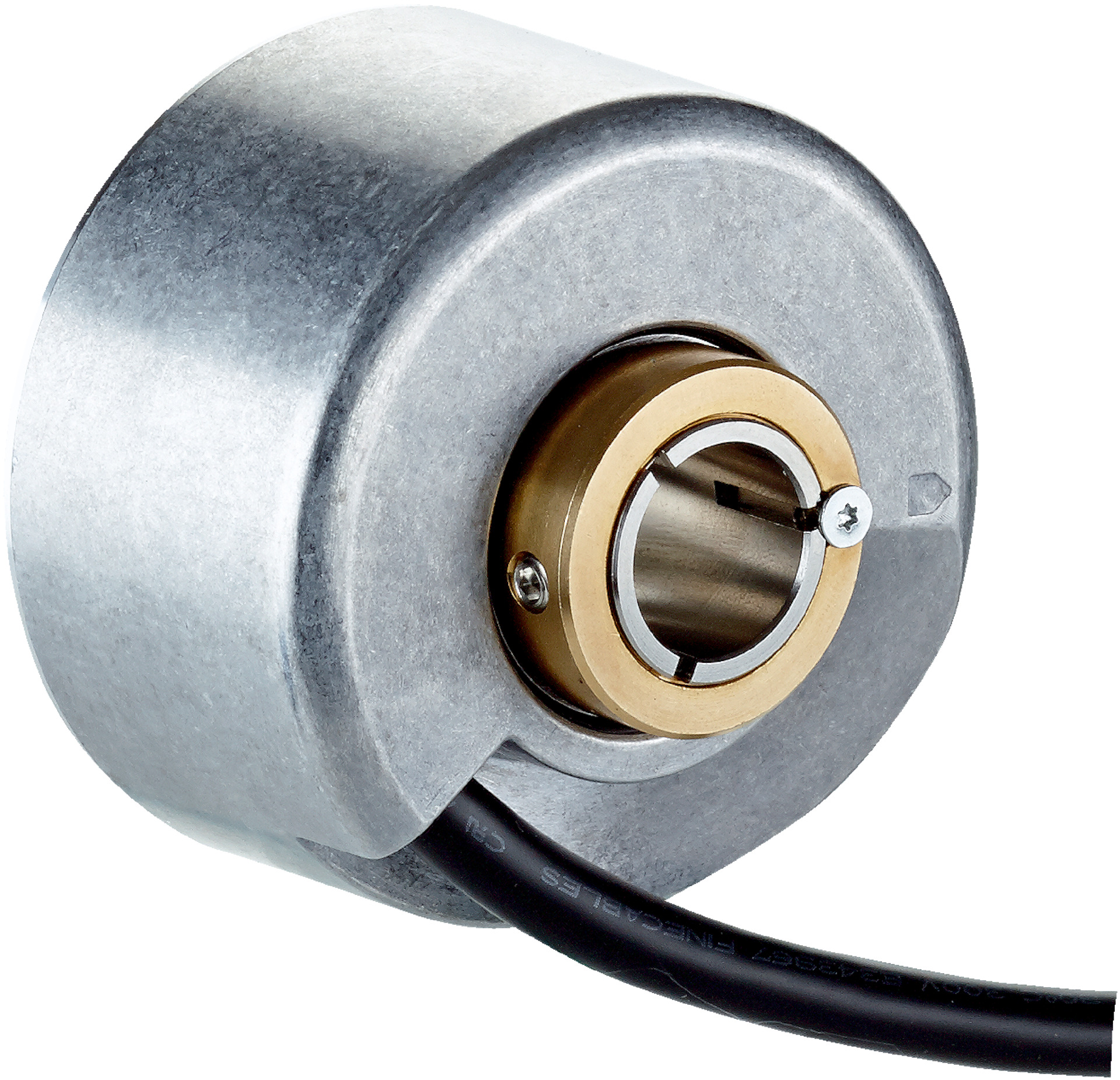

Incremental Encoder DBS60E-RHAQA2048 | 2048 Pulses/Rev | TTL/RS-422 Interface | IP65 Protection | by SICK
The Incremental Encoder DBS60E-RHAQA2048 offers high precision with 2048 pulses per revolution and a TTL/RS-422 communication interface, making it ideal for industrial automation and robotics. Designed for durability, it features an IP65-rated aluminum housing and operates effectively in temperatures from -20°C to +85°C, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-RHAQA2048 | 2048 Pulses/Rev | TTL/RS-422 Interface | IP65 Protection | by SICK
Brand: SICK
SKU: 1127028
Alternatively Known As: Incremental rotary encoder, SICK incremental encoder, DBS60 encoder, rotary position sensor, shaft encoder
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA without load
- Connection type: Cable, 8-wire, with male M23 12-pin connector, 0.5 m length
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 15 mm rear clamping
- Flange type: Without stator coupling, flange with 4 x M2.5 screws
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start up torque: > 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 housing and shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 2,048 pulses per revolution
- TTL / RS-422 incremental communication interface
- 6-channel output with reference signal logically gated with A and B
- Robust aluminum housing and flange with IP65 protection
- Through hollow shaft design with 15 mm rear clamping
- Reverse polarity and short-circuit protection on outputs
- Operating temperature range from -20°C to +85°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Low operating torque of 0.4 Ncm at 20°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and material handling
- Machine tool feedback and control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-RHAQA2048 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
