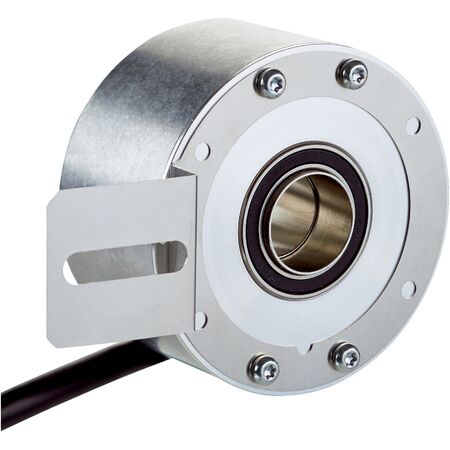

Incremental Encoder DBS60E-RJFPD1024 | 1,024 Pulses/Rev | 6-Channel TTL/HTL | IP65 Rated | by SICK
The Incremental Encoder DBS60E-RJFPD1024 features 1,024 pulses per revolution and a robust 6-channel TTL/HTL communication interface, making it ideal for industrial automation and motion control applications. With a high operating speed of up to 9,000 min⁻¹ and an IP65 rated enclosure, this encoder ensures reliable performance in demanding environments, while its durable design minimizes the need for frequent replacements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-RJFPD1024 | 1,024 Pulses/Rev | 6-Channel TTL/HTL | IP65 Rated | by SICK
Brand: SICK
SKU: 1126835
Alternatively Known As: Incremental rotary encoder, rotary shaft encoder, industrial encoder, motion encoder, pulse encoder
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, with male M12 8-pin connector, 0.5 m length
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 5/8″ rear clamping
- Flange type: 1-sided stator coupling with slot, screw hole circle radius 31.5–48.5 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start up torque: +0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +100 °C (max 3,000 pulses/rev)
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1,024 pulses per revolution
- Through hollow shaft mechanical design with 5/8″ rear clamping
- 6-channel incremental communication interface (TTL / HTL)
- High operating speed up to 9,000 min⁻¹
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- High bearing lifetime of 3.6 x 10⁹ revolutions
- Operating temperature range from –30 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-RJFPD1024 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
