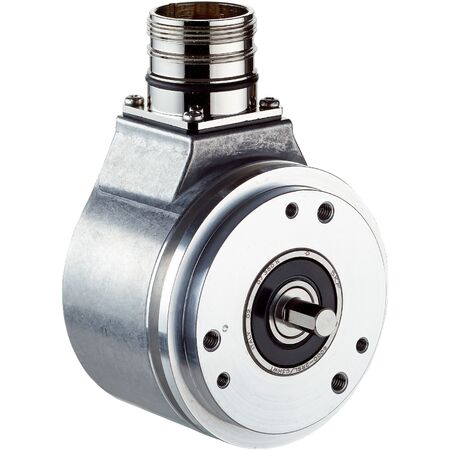

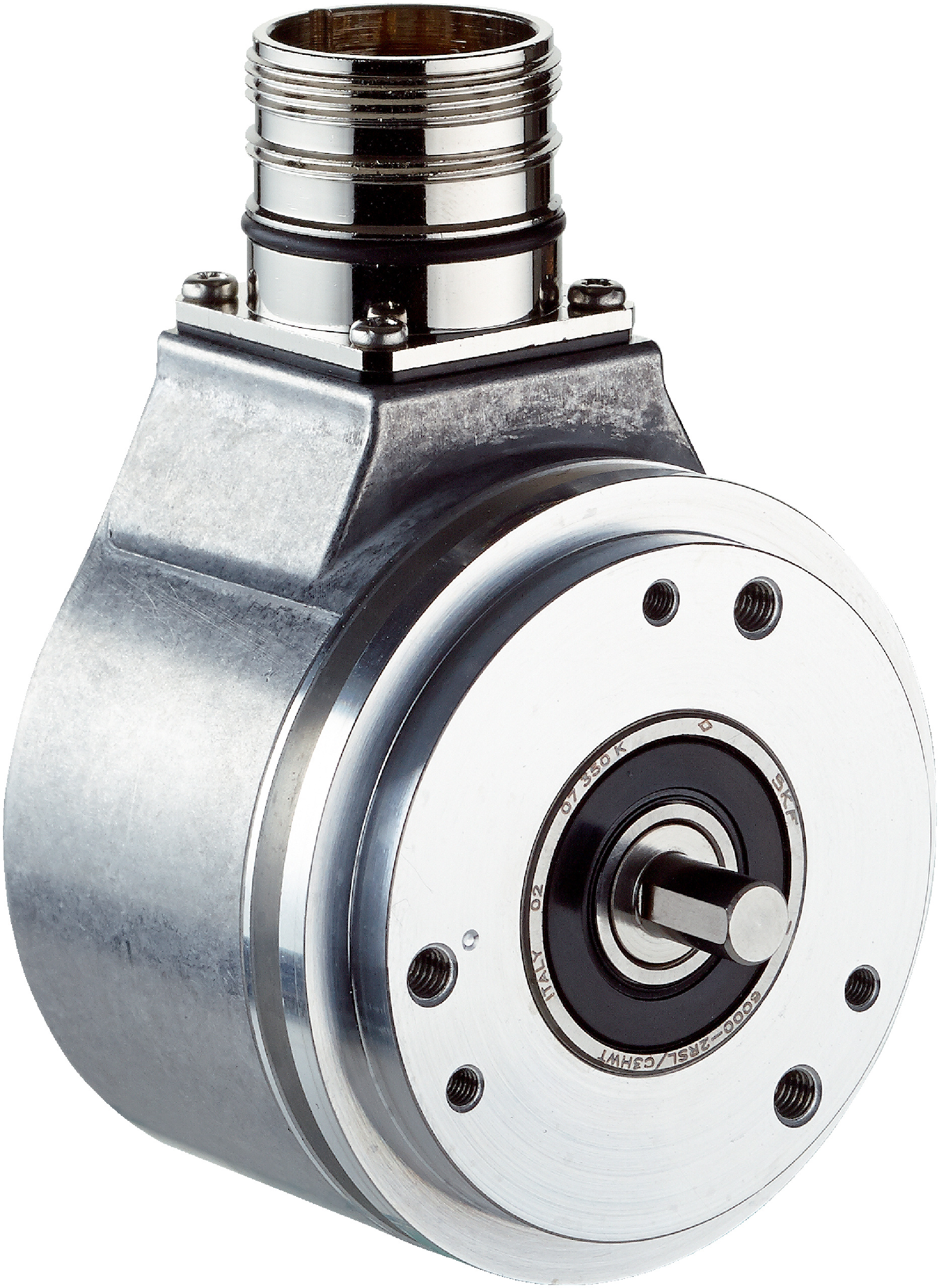

Incremental Encoder DBS60E-S1EA02000 | 2000 PPR | IP67 & IP65 Rated | High Speed up to 9000 RPM | by SICK
The Incremental Encoder DBS60E-S1EA02000 offers high precision with 2000 pulses per revolution, making it ideal for industrial automation and control systems. Designed for robust performance, it features a solid stainless steel shaft and aluminum housing, ensuring durability in demanding environments. With an operating speed of up to 9000 min⁻¹ and IP67/IP65 ratings for dust and water protection, this encoder is perfect for servo motor feedback and machinery speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-S1EA02000 | 2000 PPR | IP67 & IP65 Rated | High Speed up to 9000 RPM | by SICK
Brand: SICK
SKU: 1077730
Alternatively Known As: Incremental rotary encoder, rotary encoder 2000 PPR, SICK incremental encoder, solid shaft encoder
Technical Specifications
- Pulses per revolution: 2,000
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Solid shaft with servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Materials: Stainless steel shaft, aluminum flange and housing
- Start-up torque: 1.2 Ncm at 20 °C
- Operating torque: 1.1 Ncm at 20 °C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6,000 min⁻¹ (max 9,000 min⁻¹)
- Moment of inertia: 33 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 60mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Solid shaft with stainless steel material and 6 mm diameter
- Robust aluminum housing and flange
- IP67 rated housing side and IP65 shaft side for dust and water protection
- Short-circuit and reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Low start-up torque of 1.2 Ncm
- 6-channel incremental HTL / Push pull interface
- Fast initialization time under 5 ms
- Operating temperature range from -20 °C to +85 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Servo motor feedback
- Position and speed measurement in machinery
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low power consumption (≤ 1 W)
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DBS60E-S1EA02000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
