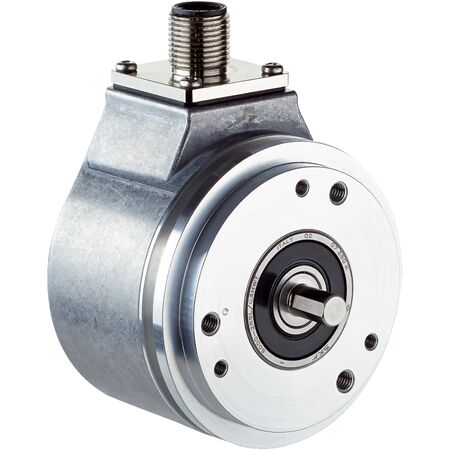

Incremental Encoder DBS60E-S1EC00010 | 10 Pulses/Rev | 6-Channel HTL | IP67 Rated | by SICK
The Incremental Encoder DBS60E-S1EC00010 is designed for precise position and speed measurement in industrial automation. With 10 pulses per revolution and a robust 6-channel HTL communication interface, it ensures reliable performance in robotics, conveyor systems, and machine tool control. Its solid shaft design and IP67-rated aluminum housing provide durability and protection against harsh environments, making it ideal for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-S1EC00010 | 10 Pulses/Rev | 6-Channel HTL | IP67 Rated | by SICK
Brand: SICK
SKU: 1074266
Alternatively Known As: Incremental rotary encoder, position encoder, rotary pulse encoder, shaft encoder
Technical Specifications
- Pulses per revolution: 10
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 1.2 Ncm at 20°C
- Operating torque: 1.1 Ncm at 20°C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 250 g, 3 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.3 kg
Key Features
- Incremental encoder with 10 pulses per revolution
- 6-channel HTL / Push pull communication interface
- Solid shaft with 6 mm diameter and 10 mm length
- High operating speed up to 9,000 min⁻¹
- Robust aluminum housing with IP67 rating on housing side
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 1 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and servo motor feedback
- Conveyor systems and material handling
- Machine tool control and monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK DBS60E-S1EC00010 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
