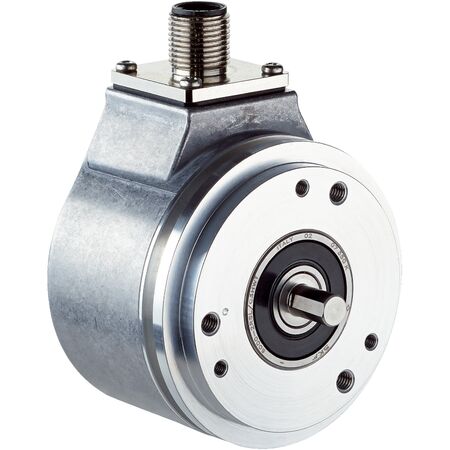

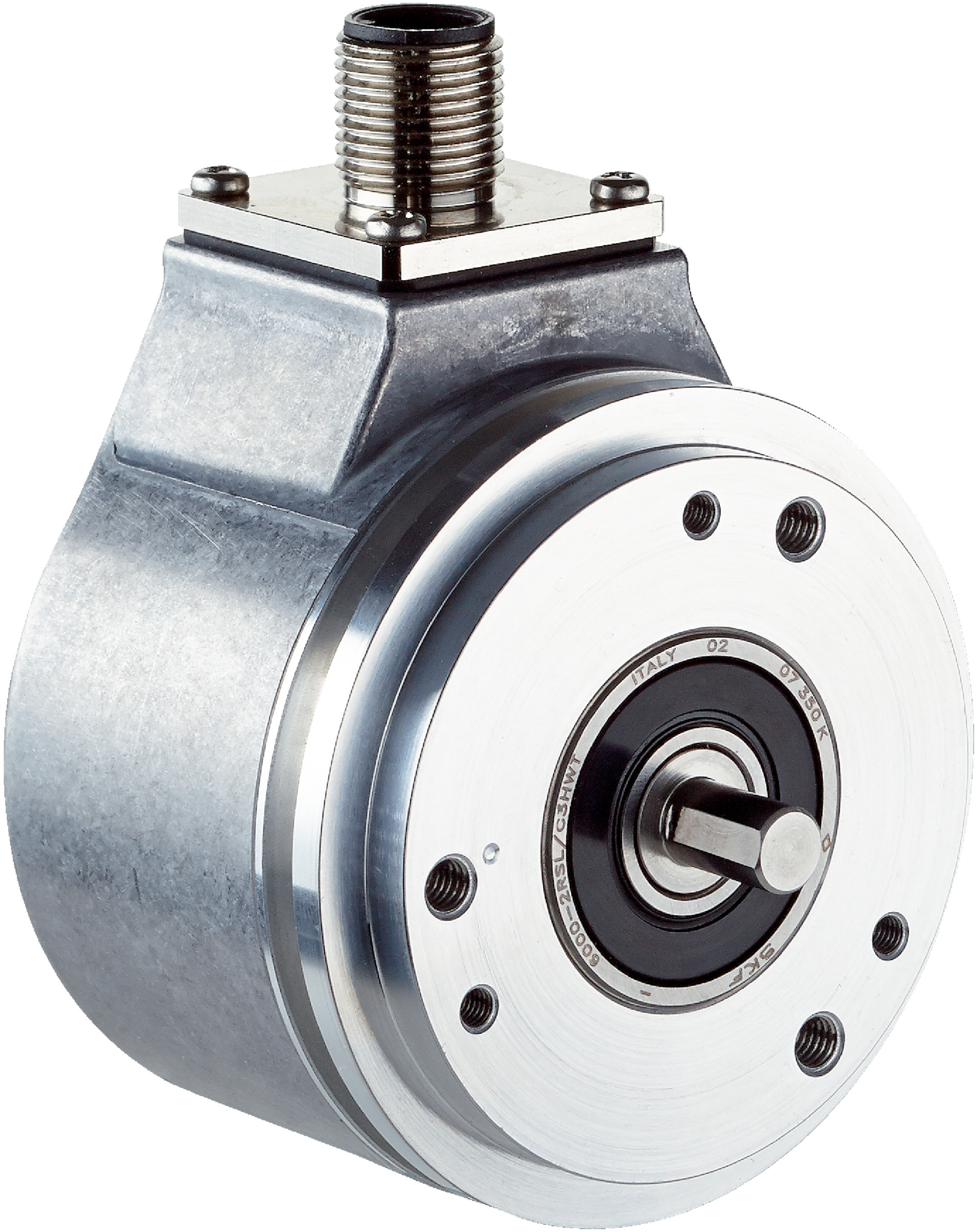

Incremental Encoder DBS60E-S1EC02000 | 2000 Pulses/Rev | IP67 Rated | High Speed up to 9000 min⁻¹ | by SICK
The Incremental Encoder DBS60E-S1EC02000 offers high precision with 2000 pulses per revolution, making it ideal for industrial automation and robotics. Designed for durability, it features an IP67 rated housing and robust aluminum construction, ensuring reliable performance in demanding environments. With a fast initialization time of under 5 ms and a high operating speed of up to 9000 min⁻¹, this encoder is perfect for servo motor feedback systems and machine tool control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-S1EC02000 | 2000 Pulses/Rev | IP67 Rated | High Speed up to 9000 min⁻¹ | by SICK
Brand: SICK
SKU: 1075864
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, pulse encoder
Technical Specifications
- Pulses per revolution: 2,000
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male M12, 8-pin radial connector
- Supply voltage: 10 to 27 V
- Reference signal: 1 at 90° electric, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Solid shaft with 6 mm diameter and flat, servo flange
- Shaft length: 10 mm
- Flange with 3 x M3 and 3 x M4 mounting holes
- Start-up torque: 1.2 Ncm at 20°C
- Operating torque: 1.1 Ncm at 20°C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6,000 min⁻¹ typical, max 9,000 min⁻¹
- Moment of inertia: 33 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature: -20°C to +85°C
- Storage temperature: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Solid shaft with stainless steel material and servo flange design
- Robust aluminum housing and flange for durability
- IP67 rated housing side and IP65 shaft side for protection against dust and water
- Short-circuit and reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Low power consumption ≤ 1 W without load
- 6-channel incremental HTL / Push pull communication interface
- Fast initialization time under 5 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Servo motor feedback systems
- Robotics and conveyor systems
- Machine tool control and monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-S1EC02000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
