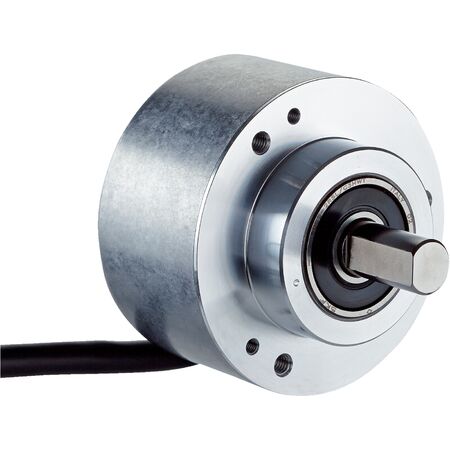

Incremental Encoder DBS60E-S3FJ02000 | 2000 PPR | IP67 Rated | Stainless Steel Shaft | by SICK
The Incremental Encoder DBS60E-S3FJ02000 offers high precision with 2000 pulses per revolution, making it ideal for industrial automation and robotics. Designed for durability, it features a robust stainless steel shaft and an IP67 rated housing, ensuring reliable performance in harsh environments. With a wide operating temperature range from -30°C to +100°C, this encoder is perfect for various motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-S3FJ02000 | 2000 PPR | IP67 Rated | Stainless Steel Shaft | by SICK
Brand: SICK
SKU: 1086103
Alternatively Known As: Incremental rotary encoder, rotary encoder 2000 PPR, SICK incremental encoder, DBS60 encoder
Technical Specifications
- Pulses per revolution: 2,000
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, universal, 0.5 m
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start up torque: 1.2 Ncm at 20°C
- Operating torque: 1.1 Ncm at 20°C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30°C to +100°C (max 3,000 pulses per revolution)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,000 pulses per revolution
- 6-channel incremental communication interface (TTL / HTL)
- Robust solid shaft with stainless steel material and face mount flange
- IP67 rated housing side and IP65 shaft side for harsh environments
- Wide operating temperature range from -30°C to +100°C
- Reverse polarity and short-circuit protection
- Low power consumption of ≤ 0.5 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate incremental feedback
- Machine tools and packaging machinery
- General motion control applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-S3FJ02000 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
