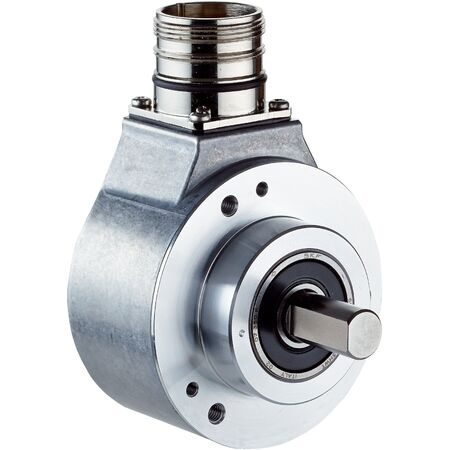

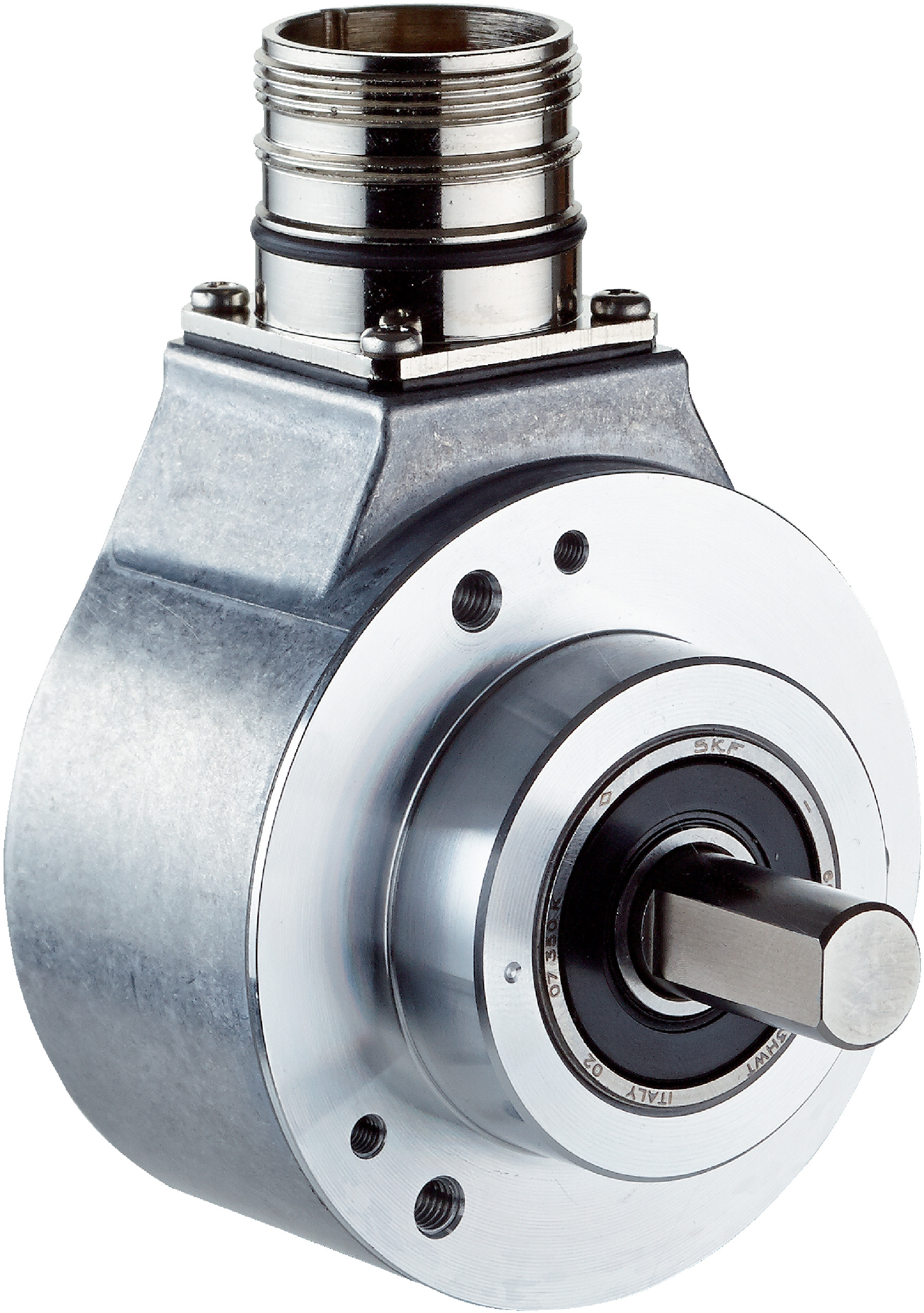

Incremental Encoder DBS60E-S4AA01000 | 1000 Pulses/Rev | 6-Channel TTL/RS-422 | IP67 Rated | by SICK
The Incremental Encoder DBS60E-S4AA01000 delivers precise position and speed measurement with 1000 pulses per revolution and a robust 6-channel TTL/RS-422 communication interface. Designed for industrial automation, robotics, and machine tool control, it features a solid 10 mm shaft and operates at speeds up to 9000 min⁻¹, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-S4AA01000 | 1000 Pulses/Rev | 6-Channel TTL/RS-422 | IP67 Rated | by SICK
Brand: SICK
SKU: 1071578
Alternatively Known As: Incremental rotary encoder, rotary encoder 10mm shaft, industrial encoder, position encoder, SICK DBS60 encoder
Technical Specifications
- Pulses per revolution: 1000
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: ~1.2 Ncm at 20 °C
- Operating torque: 1.1 Ncm at 20 °C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6000 min⁻¹
- Maximum operating speed: 9000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- Incremental encoder with 1000 pulses per revolution
- 6-channel TTL / RS-422 communication interface
- Solid shaft with 10 mm diameter and flat
- High operating speed up to 9000 min⁻¹
- IP67 rated housing side and IP65 shaft side for robust protection
- Reverse polarity and short-circuit protection
- Low start-up torque of approximately 1.2 Ncm
- Operating temperature range from -20 °C to +85 °C
- High resistance to shock (250 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate incremental feedback
- Machine tool control and monitoring
- Packaging and material handling equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-S4AA01000 incremental encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
