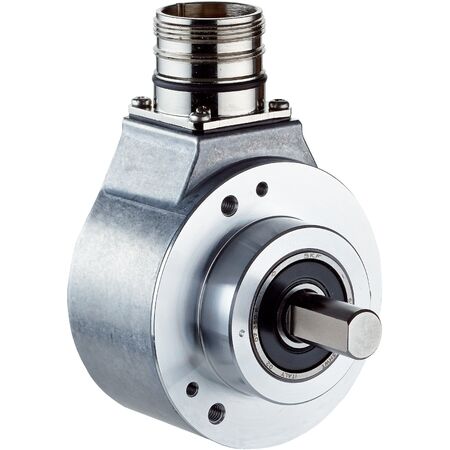

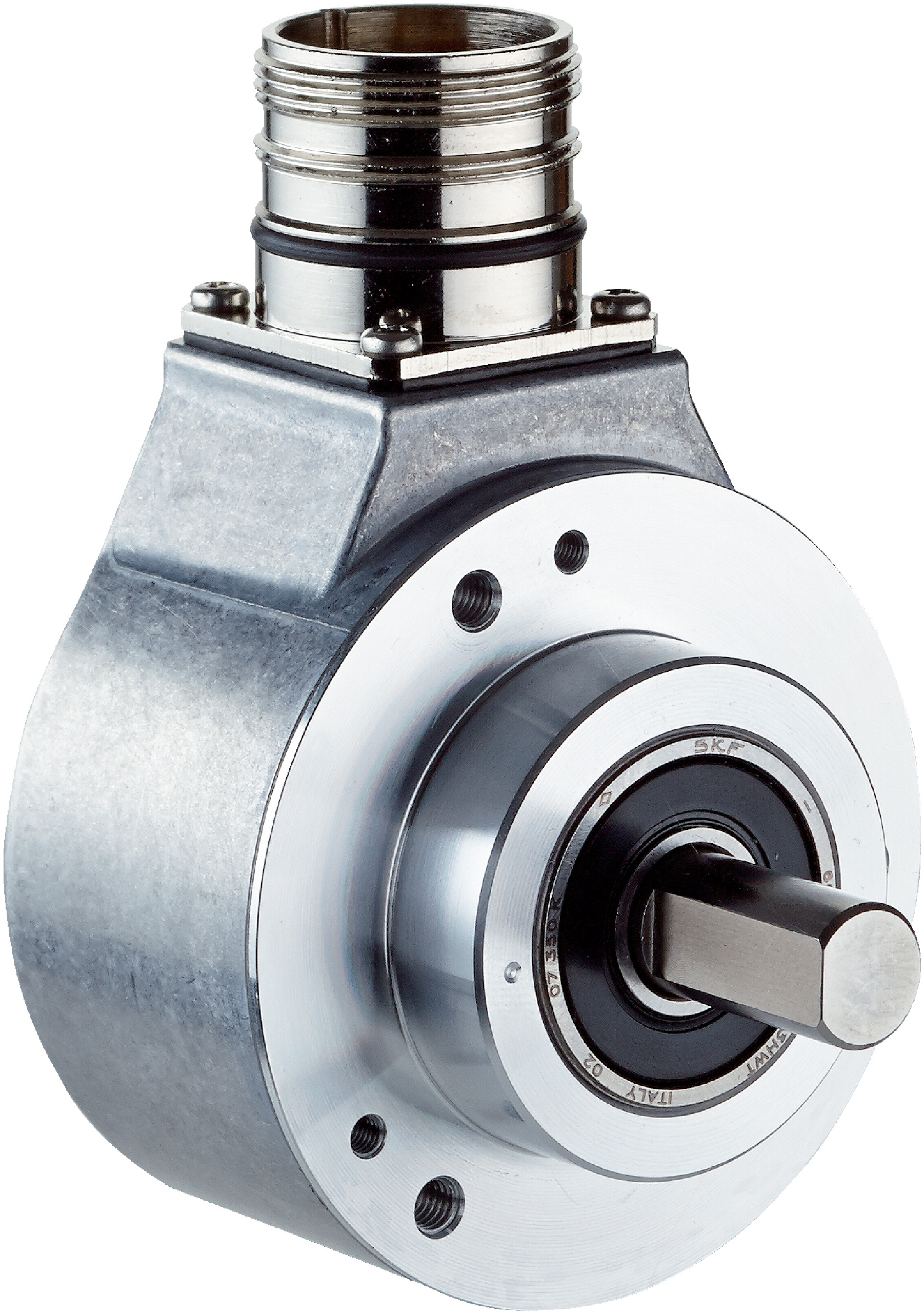

Incremental Encoder DBS60E-S4AA03000 | 3000 PPR | IP67 & IP65 Rated | by SICK
The Incremental Encoder DBS60E-S4AA03000 features a high resolution of 3000 pulses per revolution, making it ideal for precise industrial automation and robotics applications. With a robust solid shaft design and IP67/IP65 protection, it ensures reliable performance in challenging environments. This encoder is perfect for machine tool feedback, conveyor systems, and safety monitoring, providing fast initialization and exceptional mechanical reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-S4AA03000 | 3000 PPR | IP67 & IP65 Rated | by SICK
Brand: SICK
SKU: 1121424
Alternatively Known As: Incremental rotary encoder, rotary encoder 3000 PPR, SICK incremental encoder, DBS60 encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 3,000
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 1.2 Ncm at +20 °C
- Operating torque: 1.1 Ncm at +20 °C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 3,000 pulses per revolution
- TTL / RS-422 incremental communication interface
- 6-channel signal output with reference signal
- Robust solid shaft design with stainless steel shaft
- IP67 rated housing side and IP65 shaft side for protection
- Wide operating temperature range from -20°C to +85°C
- Reverse polarity and short-circuit protection
- Low start-up and operating torque for efficient operation
- High mechanical reliability with bearing lifetime of 3.6 billion revolutions
- Fast initialization time under 5 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Machine tool feedback and positioning
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-S4AA03000 incremental encoder is available for immediate purchase, ideal for industrial automation, robotics, and safety monitoring applications.
