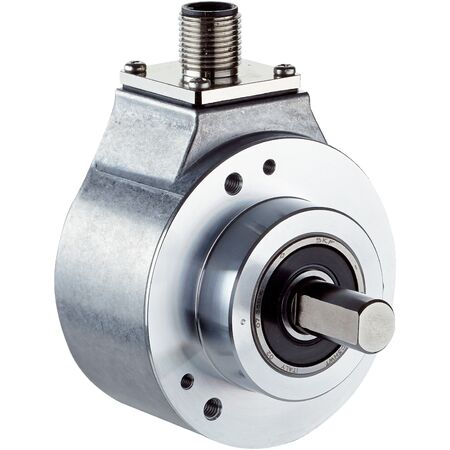

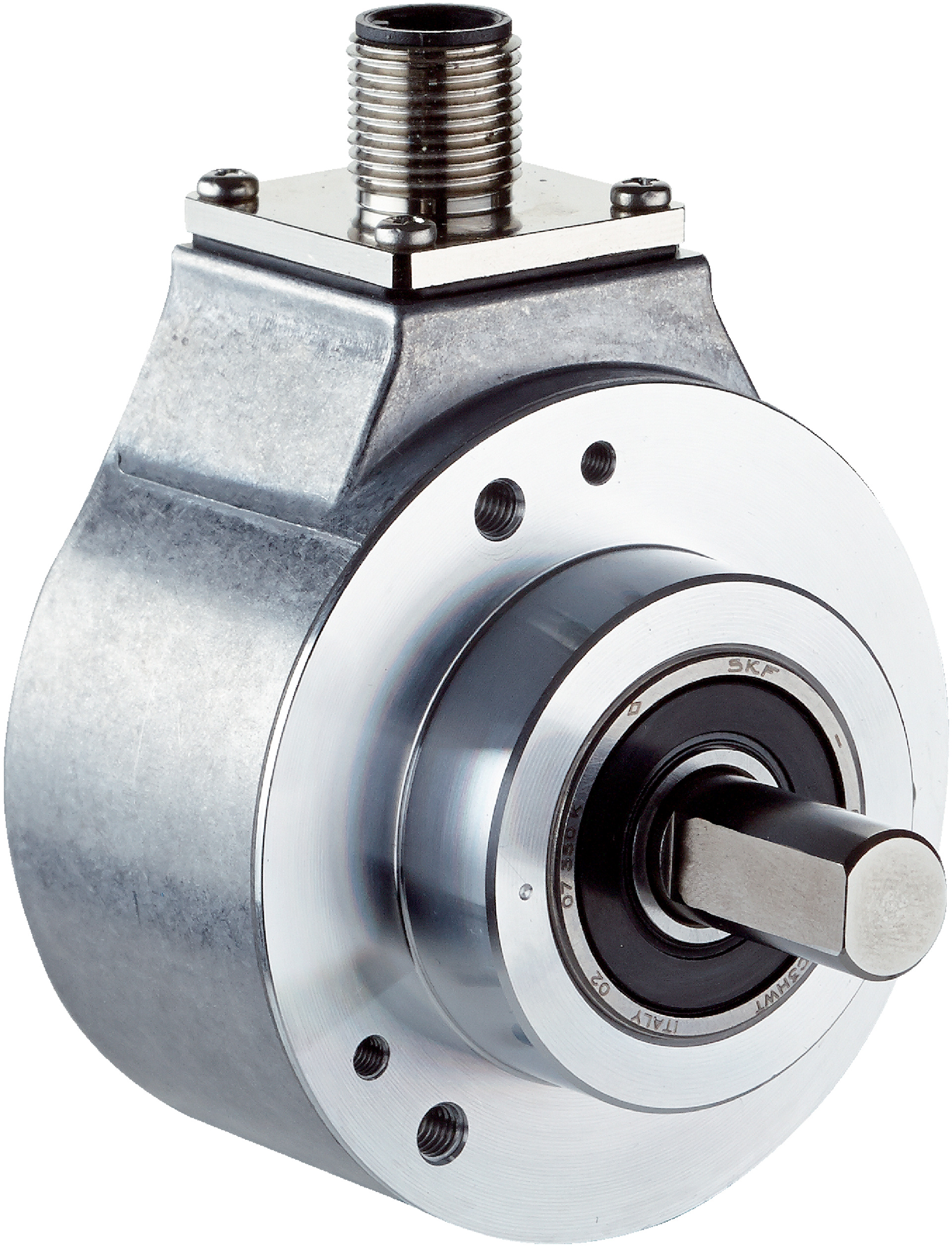

Incremental Encoder DBS60E-S4AC02500 | 2500 Pulses/Rev | IP67 Rated | Stainless Steel Shaft | by SICK
The Incremental Encoder DBS60E-S4AC02500 delivers high precision with 2500 pulses per revolution, making it ideal for industrial automation and robotics. Built with a robust stainless steel shaft and IP67 rated housing, it ensures durability and protection against dust and water. With fast initialization under 5 ms and reverse polarity protection, this encoder is perfect for motion control systems and conveyor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-S4AC02500 | 2500 Pulses/Rev | IP67 Rated | Stainless Steel Shaft | by SICK
Brand: SICK
SKU: 1085692
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, SICK DBS60 encoder
Technical Specifications
- Pulses per revolution: 2,500
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: 1.2 Ncm at 20 °C
- Operating torque: 1.1 Ncm at 20 °C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,500 pulses per revolution
- Robust solid shaft with stainless steel material
- IP67 rated housing for protection against dust and water
- Fast initialization time under 5 ms
- Reverse polarity and short-circuit protection
- High operating speed up to 9,000 min⁻¹
- Durable bearing lifetime of 3.6 x 10⁹ revolutions
- 6-channel incremental TTL/RS-422 output interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and compliance with electrical standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-S4AC02500 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
