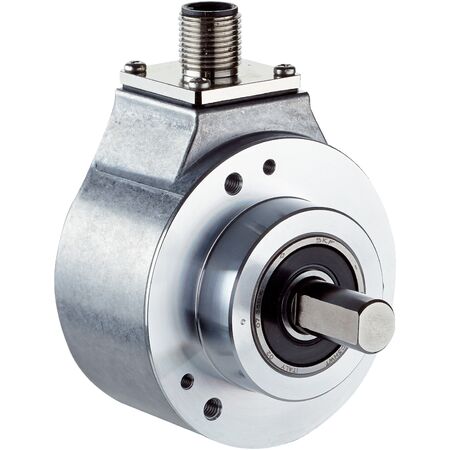

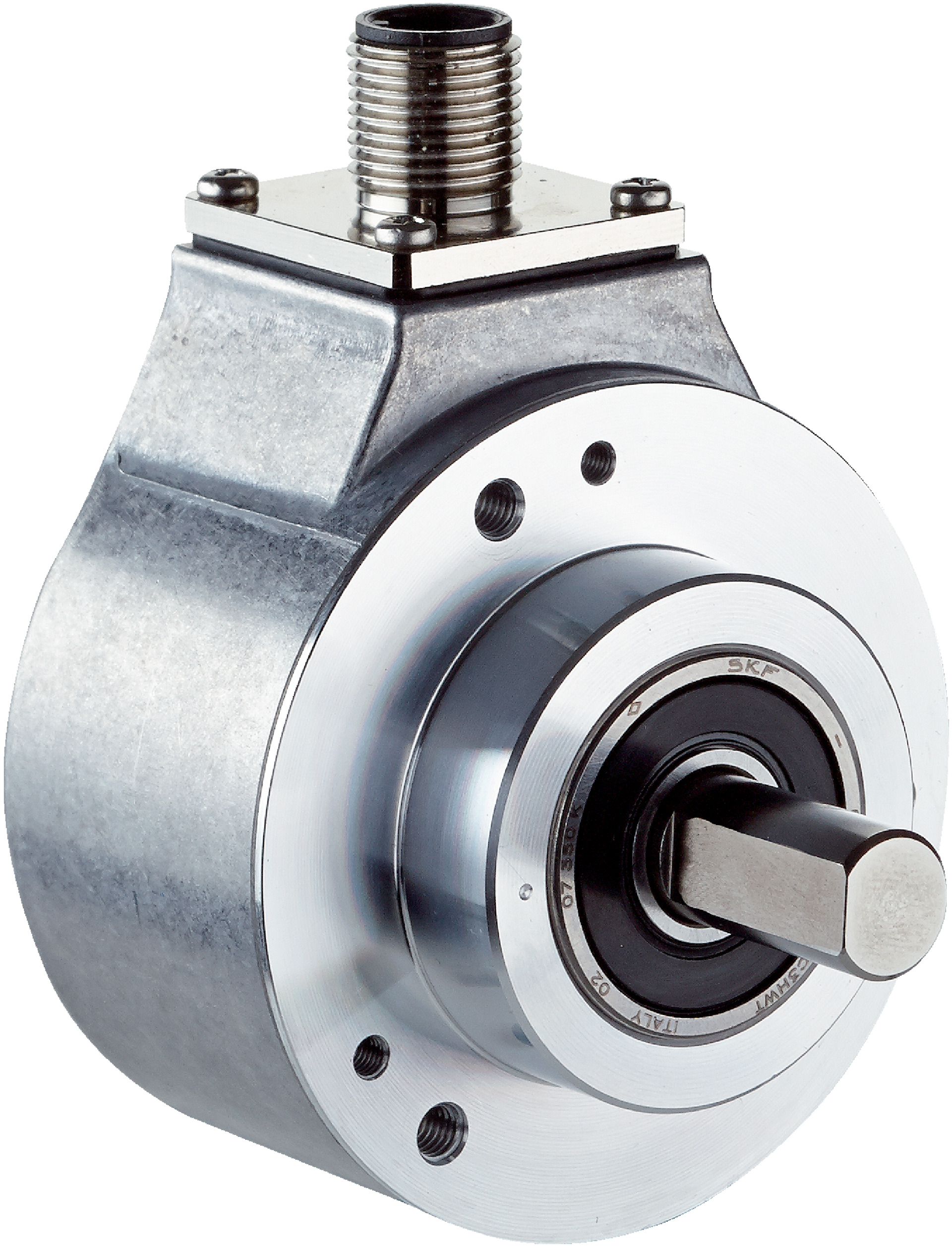

Incremental Encoder DBS60E-S4AC03600 | 3600 Pulses/Rev | IP67 Rated | by SICK
The Incremental Encoder DBS60E-S4AC03600 delivers exceptional precision with 3600 pulses per revolution, making it ideal for industrial automation and robotics. Designed for durability, it features an IP67 rated housing and operates within a temperature range of -20°C to +85°C. With a robust solid shaft and 6-channel output, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-S4AC03600 | 3600 Pulses/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1094089
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 3600
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 36° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 10%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA without load
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Start up torque: 1.2 Ncm at 20°C
- Operating torque: 1.1 Ncm at 20°C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6000 min⁻¹
- Maximum operating speed: 9000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 250 g, 3 ms
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- 3600 pulses per revolution for high resolution
- TTL / RS-422 incremental communication interface
- 6-channel output with reference signal logically gated with A and B
- Robust solid shaft with stainless steel material and aluminum housing
- IP67 rated housing side and IP65 shaft side for harsh environments
- Operating temperature range from -20°C to +85°C
- Reverse polarity and short-circuit protection on outputs
- High mechanical durability with bearing lifetime of 3.6 billion revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling equipment
- Machine tool feedback systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low operating current
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DBS60E-S4AC03600 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
