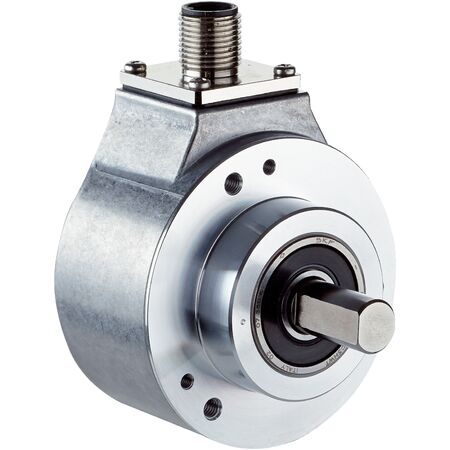

Incremental Encoder DBS60E-S4EC01000 | 1000 Pulses/Rev | 6-Channel HTL Interface | High Speed 9000 min⁻¹ | by SICK
The Incremental Encoder DBS60E-S4EC01000 features 1000 pulses per revolution and a robust 6-channel HTL communication interface, making it ideal for industrial automation and precise motion control applications. With a high operating speed of up to 9000 min⁻¹ and a durable aluminum housing rated IP67, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-S4EC01000 | 1000 Pulses/Rev | 6-Channel HTL Interface | High Speed 9000 min⁻¹ | by SICK
Brand: SICK
SKU: 1074014
Alternatively Known As: Incremental rotary encoder, SICK DBS60 encoder, 1000 PPR encoder, HTL incremental encoder
Technical Specifications
- Pulses per revolution: 1000
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 27 V
- Reference signal: 1 at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 1.2 Ncm at 20 °C
- Operating torque: 1.1 Ncm at 20 °C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6000 min⁻¹
- Maximum operating speed: 9000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 250 g, 3 ms
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- Incremental encoder with 1000 pulses per revolution
- 6-channel HTL / Push pull communication interface
- Solid shaft with 10 mm diameter and flat
- High operating speed up to 9000 min⁻¹
- Robust aluminum housing with IP67 rating on housing side
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 1 W without load
- Fast initialization time under 5 ms
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Position and speed measurement in machinery
- Robotics and conveyor systems
- Motor feedback and motion control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBS60E-S4EC01000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
